KSP90-AHXEK (2007)
Toyota Vitz
(0708- )B,F,ILL,U ; (0809- )RS

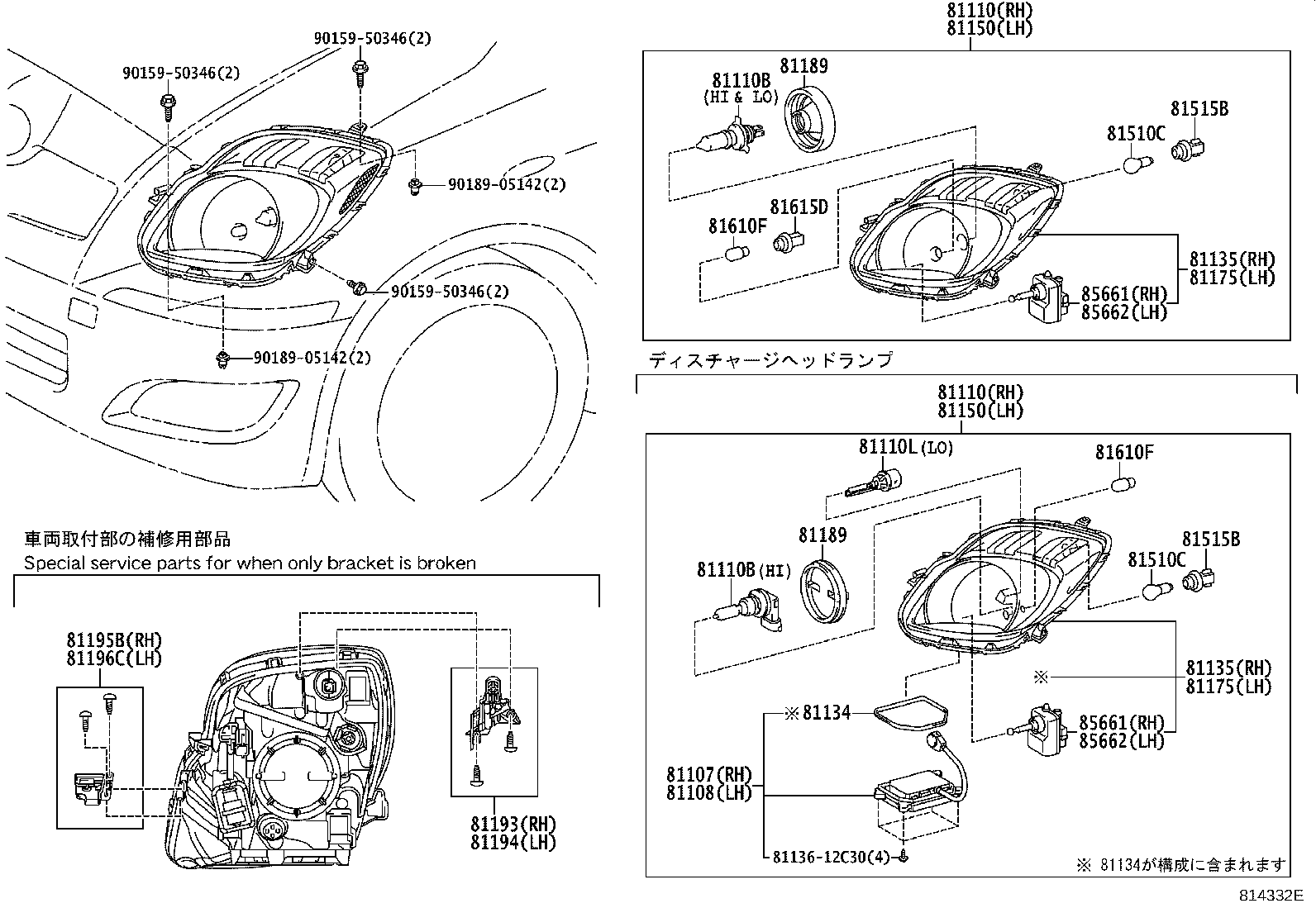

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-52A00 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-52A00 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-52570 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 81110-52A00 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81110-52A10 |
KSP90,NCP9#,SCP90..B,F,U |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-52570 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 81110-52A00 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81110-52A10 |
KSP90,NCP9#,SCP90..B,F,U |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13082 |
KSP90,NCP9#,SCP90..F,ILL,U 12V 55W,ﾊﾛｹﾞﾝ,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13082 |
KSP90,NCP9#,SCP90..F,ILL,U 12V 55W,ﾊﾛｹﾞﾝ,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20014 |
KSP90,NCP9#,SCP90..F,ILL,U 45V 35W,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90981-20014 |
KSP90,NCP9#,SCP90..F,ILL,U 45V 35W,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-52570 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 81130-52A10 |
KSP90,NCP9#,SCP90..B,F,U |
1 | ||
| 81145-52A00 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-52570 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 81130-52A10 |
KSP90,NCP9#,SCP90..B,F,U |
1 | ||
| 81145-52A00 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-52560 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 81150-52A00 |
KSP90,NCP9#,SCP90..B,F,U |
1 | ||
| 81150-52890 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-52560 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 81150-52A00 |
KSP90,NCP9#,SCP90..B,F,U |
1 | ||
| 81150-52890 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-52560 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 81170-52A00 |
KSP90,NCP9#,SCP90..B,F,U |
1 | ||
| 81185-52890 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-52560 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 81170-52A00 |
KSP90,NCP9#,SCP90..B,F,U |
1 | ||
| 81185-52890 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81189 - COVER, HEADLAMP | ||||
| 81139-52570 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
2 | ||
| 81139-52570 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
2 | ||
| 81135-52620 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81189 - COVER, HEADLAMP | ||||
| 81139-52570 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
2 | ||
| 81139-52570 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
2 | ||
| 81135-52620 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52080 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 81193-52080 |
KSP90,NCP9#,SCP90 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52080 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 81194-52080 |
KSP90,NCP9#,SCP90 |
1 | ||
| 81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52110 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 81195-52050 |
KSP90,NCP9#,SCP90 |
1 | ||
| 81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-52110 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 81196-52050 |
KSP90,NCP9#,SCP90 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15020 |
KSP90,NCP9#,SCP90 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15020 |
KSP90,NCP9#,SCP90..B,F,ILL,U 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15020 |
KSP90,NCP9#,SCP90 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15020 |
KSP90,NCP9#,SCP90..B,F,ILL,U 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 81515-52570 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
2 | ||
| 81515-52570 |
KSP90,NCP9#,SCP90 |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 81515-52570 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
2 | ||
| 81515-52570 |
KSP90,NCP9#,SCP90 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
KSP90,NCP9#,SCP90 12V 5W |
2 | ||
| 99132-12050 |
KSP90,NCP9#,SCP90..B,F,ILL,U 12V 5W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
KSP90,NCP9#,SCP90 12V 5W |
2 | ||
| 99132-12050 |
KSP90,NCP9#,SCP90..B,F,ILL,U 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 81138-52570 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
2 | ||
| 81138-52570 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-52010 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 85661-52020 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-52010 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 85661-52020 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-52010 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 85661-52020 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-52010 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 85661-52020 |
KSP90,NCP9#,SCP90..F,ILL,U ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| Common parts | ||||
| 81136-12C30 | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||
