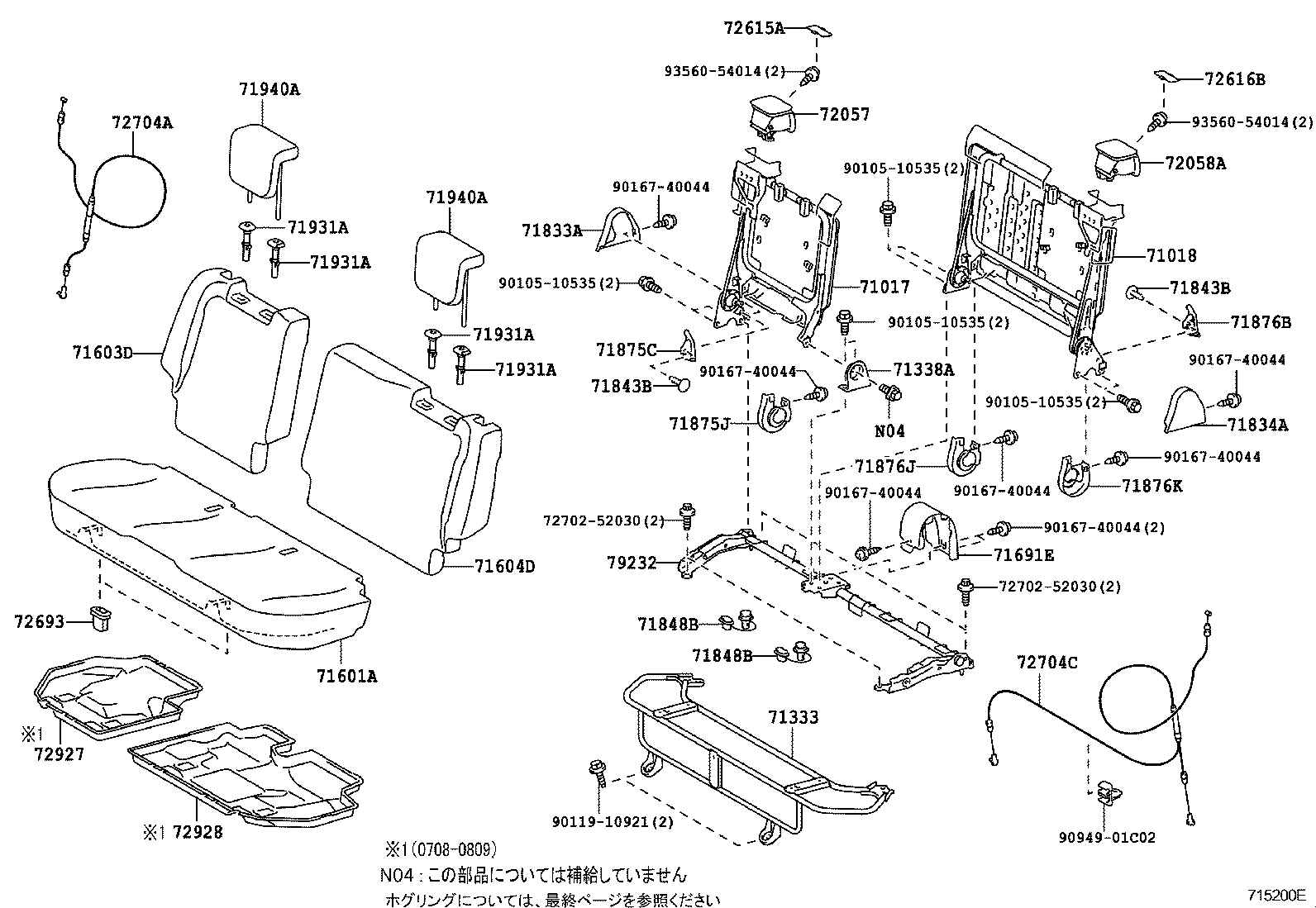

KSP90-AHXEK (2007)
Toyota Vitz
(0708- )KSP90..U ; (0708- )NCP91,SCP90..F,RS
6:4 ﾌﾞﾝｶﾂｶﾄｳｼｷ(ｼｰﾄﾊﾞｯｸ ﾏｴﾀﾞｵｼ ﾉﾐ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-52040 |
KSP90;SCP90..F |
1 | ||
| 71333-52010 |
KSP90,NCP91..B,F,RS |
1 | ||
| 71601A - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52B50E0 |
KSP90..B,F GREGE,TRIM4# |
1 | ||
| 71601-52B50C2 |
KSP90..B,F BLACK,TRIM1# |
1 | ||
| 71601-52G50E0 |
KSP90..B,F GREGE,TRIM4# |
1 | ||
| 71601-52J00B1 |
KSP90..U DK. GRAY,TRIM1# |
1 | ||
| 71601-52J00E1 |
KSP90..U GREGE,TRIM4# |
1 | ||
| 71601-52G50B0 |
KSP90..B,F DK.GRAY,TRIM1# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-52L10E0 |
KSP90..U GREGE,TRIM4# |
1 | ||
| 71603-52L10B0 |
KSP90..U DK. GRAY,TRIM1# |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52J00B0 |
KSP90..U DK. GRAY,TRIM1# |
1 | ||
| 71604-52J00E0 |
KSP90..U GREGE,TRIM4# |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-52080E0 |
KSP90..U;SCP90..F GREGE,TRIM4# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-52040B1 |
KSP90..B,F DK.GRAY,TRIM1#,42 |
1 | ||
| 71833-52110B0 |
KSP90..U;SCP90..F DK.GRAY,TRIM1#,42 |
1 | ||
| 71833-52040E0 |
KSP90..B,F GREGE,TRIM42 |
1 | ||
| 71833-52110E0 |
KSP90..U;SCP90..F GREGE,TRIM42 |
1 | ||
| 71833-52040B1 |
KSP90..B,F DK.GRAY,TRIM1#,4# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-52040B1 |
KSP90..B,F DK.GRAY,TRIM1#,42 |
1 | ||
| 71834-52040B1 |
KSP90..B,F DK.GRAY,TRIM1#,4# |
1 | ||
| 71834-52040E0 |
KSP90..B,F GREGE,TRIM42 |
1 | ||
| 71834-52110B0 |
KSP90..U;SCP90..F DK.GRAY,TRIM1#,42 |
1 | ||
| 71834-52110E0 |
KSP90..U;SCP90..F GREGE,TRIM42 |
1 | ||
| 71843B - CLIP, REAR SEAT RECLINING COVER | ||||
| 90467-08104E2 |
KSP90,NCP95..B,F GREGE,TRIM42 |
2 | ||
| 90467-08104B2 |
KSP90,NCP95..B,F DK.GRAY,TRIM1#,42 |
2 | ||
| 90467-08104B2 |
SCP90..F;KSP90,NCP95..B,F,U DK.GRAY,TRIM1#,42 |
2 | ||
| 71843B - CLIP, REAR SEAT RECLINING COVER | ||||
| 90467-08104E2 |
KSP90,NCP95..B,F GREGE,TRIM42 |
2 | ||
| 90467-08104B2 |
KSP90,NCP95..B,F DK.GRAY,TRIM1#,42 |
2 | ||
| 90467-08104B2 |
SCP90..F;KSP90,NCP95..B,F,U DK.GRAY,TRIM1#,42 |
2 | ||
| 71848B - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52030 |
KSP90;SCP90..F |
2 | ||
| 71848-52030 |
KSP90,NCP91..B,F,ILL,RS |
2 | ||
| 71848B - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52030 |
KSP90;SCP90..F |
2 | ||
| 71848-52030 |
KSP90,NCP91..B,F,ILL,RS |
2 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52100E0 |
KSP90..B,F GREGE,TRIM42 |
1 | ||
| 71875-52320B0 |
KSP90..U;SCP90..F DK.GRAY,TRIM1#,42 |
1 | ||
| 71875-52100B0 |
KSP90..B,F DK.GRAY,TRIM1#,42 |
1 | ||
| 71875-52320E0 |
KSP90..U;SCP90..F GREGE,TRIM42 |
1 | ||
| 71875-52100B0 |
KSP90..B,F DK.GRAY,TRIM1#,4# |
1 | ||
| 71875J - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52330B0 |
KSP90..U;SCP90..F DK.GRAY,TRIM1#,42 |
1 | ||
| 71875-52330E0 |
KSP90..U;SCP90..F GREGE,TRIM42 |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52290B0 |
KSP90..U;SCP90..F DK.GRAY,TRIM1#,42 |
1 | ||
| 71876-52100E0 |
KSP90..B,F GREGE,TRIM42 |
1 | ||
| 71876-52100B0 |
KSP90..B,F DK.GRAY,TRIM1#,4# |
1 | ||
| 71876-52290E0 |
KSP90..U;SCP90..F GREGE,TRIM42 |
1 | ||
| 71876-52100B0 |
KSP90..B,F DK.GRAY,TRIM1#,42 |
1 | ||
| 71876J - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-52340B0 |
KSP90..U;SCP90..F DK.GRAY,TRIM1#,42 |
1 | ||
| 71875-52340E0 |
KSP90..U;SCP90..F GREGE,TRIM42 |
1 | ||
| 71876K - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52300E0 |
KSP90..U;SCP90..F GREGE,TRIM42 |
1 | ||
| 71876-52300B0 |
KSP90..U;SCP90..F DK.GRAY,TRIM1#,42 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90 ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010B2 |
KSP90 ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71931-42020E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90 ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010B2 |
KSP90 ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71931-42020E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90 ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010B2 |
KSP90 ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71931-42020E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90 ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010B2 |
KSP90 ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71931-42020E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52270C0 |
KSP90 BLACK,TRIM1# |
1 | ||
| 71940-52640E0 |
KSP90..U GREGE,TRIM4# |
2 | ||
| 71940-52640B0 |
KSP90..U DK. GRAY,TRIM1# |
2 | ||
| 71940-52660C0 |
KSP90..B,F BLACK,TRIM1# |
2 | ||
| 71940-52660E0 |
KSP90..B,F GREGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52270C0 |
KSP90 BLACK,TRIM1# |
1 | ||
| 71940-52640E0 |
KSP90..U GREGE,TRIM4# |
2 | ||
| 71940-52640B0 |
KSP90..U DK. GRAY,TRIM1# |
2 | ||
| 71940-52660C0 |
KSP90..B,F BLACK,TRIM1# |
2 | ||
| 71940-52660E0 |
KSP90..B,F GREGE,TRIM4# |
2 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-52020B0 |
KSP90,NCP95..B,F,U DK.GRAY,TRIM1#,42 |
1 | ||
| 72057-52020B0 |
SCP90..F;KSP90,NCP95..B,F,U DK.GRAY,TRIM1#,42 |
1 | ||
| 72057-52020E1 |
KSP90,NCP95..B,F,U GREGE,TRIM42 |
1 | ||
| 72057-52020E1 |
SCP90..F;KSP90,NCP95..B,F,U GREGE,TRIM42 |
1 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72057-52020B0 |
KSP90..U;SCP90..F;NCP95..F,U DK.GRAY,TRIM1#,42 |
1 | ||
| 72057-52020E1 |
KSP90..U;SCP90..F;NCP95..F,U GREGE,TRIM42 |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52070E1 |
KSP90,NCP95..B,F,U GREGE,TRIM42 |
1 | ||
| 72615-52070B0 |
SCP90..F;KSP90,NCP95..B,F,U DK.GRAY,TRIM1#,42 |
1 | ||
| 72615-52070E1 |
SCP90..F;KSP90,NCP95..B,F,U GREGE,TRIM42 |
1 | ||
| 72615-52070B0 |
KSP90,NCP95..B,F,U DK.GRAY,TRIM1#,42 |
1 | ||
| 72616B - COVER, REAR SEAT LOCK STRIKER | ||||
| 72615-52070B0 |
KSP90..U;SCP90..F;NCP95..F,U DK.GRAY,TRIM1#,42 |
1 | ||
| 72615-52070E1 |
KSP90..U;SCP90..F;NCP95..F,U GREGE,TRIM42 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
KSP90,NCP91..B,F,ILL,RS |
2 | ||
| 72693-12080 |
KSP90;SCP90..F |
2 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-52020 |
KSP90..B,F |
1 | ||
| 72704-52020 |
KSP90,NCP91..B,F,ILL,RS |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-52020 |
NCP95;KSP90..U;NCP91,SCP90..F,RS |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-52020 |
NCP95;KSP90..U;NCP91,SCP90..F,RS |
1 | ||
| 79232 - LEG, REAR NO.2 SEAT, RH | ||||
| 79232-52010 |
KSP90..B,F |
1 | ||
| 79232-52010 |
KSP90,NCP91..B,F,ILL,RS |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90105-10535 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90949-01C02 | ||||
| 93560-54014 | ||||
