KSP90-AHXEK (2007)

Toyota Vitz

Production Aug 2007 - Aug 2008
Engine 1KRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0708- )B,F,ILL,U

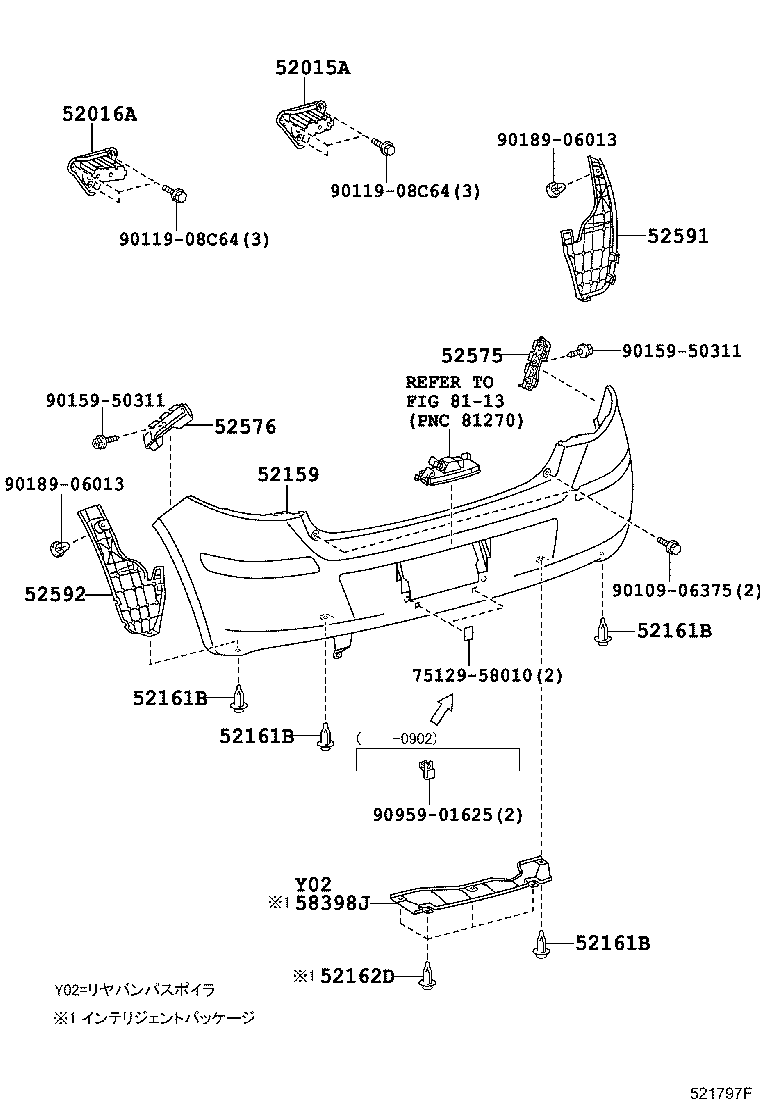

Click highlighted areas on diagram

diagram 52015A 52016A 52159 52161B 52161B 52161B 52161B 52162D 52575 52576 52591 52592 58398J 7512958010 8113 9010906375 9011908C64 9011908C64 9015950311 9015950311 9018906013 9018906013 9095901625
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-52030

KSP90,NCP9#,SCP90..B,F,ILL,U,X

 1
52015-52030

KSP90,NCP9#,SCP90..B,F,ILL,U

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-52030

KSP90,NCP9#,SCP90..B,F,ILL,U,X

 1
52016-52030

KSP90,NCP9#,SCP90..B,F,ILL,U

 1
52159 - COVER, REAR BUMPER
52159-52490G0

KSP90,NCP9#,SCP90..B,F,U,X

GREEN M.M.,6U1

 1
52159-52490K0

KSP90,NCP9#,SCP90..B,F,ILL,U,X

REDDISH PURPLE M.M.,9AC

 1
52159-52490B0

KSP90,NCP9#,SCP90..B,F,U,X

SILVER M.M.,1E7

 1
52159-52490A0

KSP90,NCP9#,SCP90..B,F,U,X

WHITE,068

 1
52159-52490J1

KSP90,NCP9#,SCP90..B,F,U,X

LT. BLUE M.M.,8S9

 1
52159-52490E0

KSP90,NCP9#,SCP90..B,F,U,X

PALE ORANGE MICA METALLIC,4S3

 1
52159-52490D0

KSP90,NCP9#,SCP90..B,F,U,X

SUPER RED 5,3P0

 1
52159-52490C0

KSP90,NCP9#,SCP90..B,F,U,X

BLACK MC.,209

 1
52159-52670B1

KSP90,NCP9#,SCP90..F,ILL,U

MEDIUM SILVER ME.,1F8

 1
52159-52670E0

KSP90,NCP9#,SCP90..F,U

COPPER ME.,4T4

 1
52159-52670H0

KSP90,NCP9#,SCP90..F,U

TURQUOISE ME.,777

 1
52159-52490J0

KSP90,NCP9#,SCP90..B,F,U,X

DK.BLUE M.M.,8P4

 1
52159-52490E1

KSP90,NCP9#,SCP90..B,F,ILL,U,X

BEIGE PM.,4S8

 1
52159-52670D0

KSP90,NCP9#,SCP90..F,U

SUPER RED 5,3P0

 1
52159-52670A1

KSP90,NCP9#,SCP90..F,ILL,U

WHITE PEARL CS.,070

 1
52159-52670J0

KSP90,NCP9#,SCP90..B,F,U

DK.BLUE M.M.,8P4

 1
52159-52670B0

KSP90,NCP9#,SCP90..B,F,U

SILVER M.M.,1E7

 1
52159-52670A0

KSP90,NCP9#,SCP90..B,F,U

WHITE,068

 1
52159-52670J1

KSP90,NCP9#,SCP90..F,U

BLUE M.M.,8T0

 1
52159-52670C0

KSP90,NCP9#,SCP90..F,U

BLACK MC.,209

 1
52159-52670K0

KSP90,NCP9#,SCP90..F,U

LT.PURPLE M.M.,9AE

 1
52161B - PIECE, REAR BUMPER
52161-16010

KSP90,NCP9#,SCP90..B,F,ILL,U,X

 5
52161-16010

KSP90,NCP9#,SCP90..B,F,ILL,U

 4
52161B - PIECE, REAR BUMPER
52161-16010

KSP90,NCP9#,SCP90..B,F,ILL,U,X

 5
52161-16010

KSP90,NCP9#,SCP90..B,F,ILL,U

 4
52161B - PIECE, REAR BUMPER
52161-16010

KSP90,NCP9#,SCP90..B,F,ILL,U,X

 5
52161-16010

KSP90,NCP9#,SCP90..B,F,ILL,U

 4
52161B - PIECE, REAR BUMPER
52161-16010

KSP90,NCP9#,SCP90..B,F,ILL,U,X

 5
52161-16010

KSP90,NCP9#,SCP90..B,F,ILL,U

 4
52162D - PIECE, REAR BUMPER
52161-16010

KSP90..B,F

ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｯｹｰｼﾞ

 4
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-52110

KSP90,NCP9#,SCP90

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-52090

KSP90,NCP9#,SCP90

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52270

KSP90,NCP9#,SCP90..B,F,ILL,U

 1
52591-52180

KSP90,NCP9#,SCP90..B,F,ILL,U,X

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52270

KSP90,NCP9#,SCP90..B,F,ILL,U

 1
52592-52170

KSP90,NCP9#,SCP90..B,F,ILL,U,X

 1
58398J - COVER, FLOOR UNDER, NO.1
58398-52030

KSP90..B,F

ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｯｹｰｼﾞ

 1
Common parts
75129-58010
90109-06375
90119-08C64
90159-50311
90189-06013
90959-01625
Linked diagrams
8113
