KSP130-AHXNK (2010)
Toyota Vitz

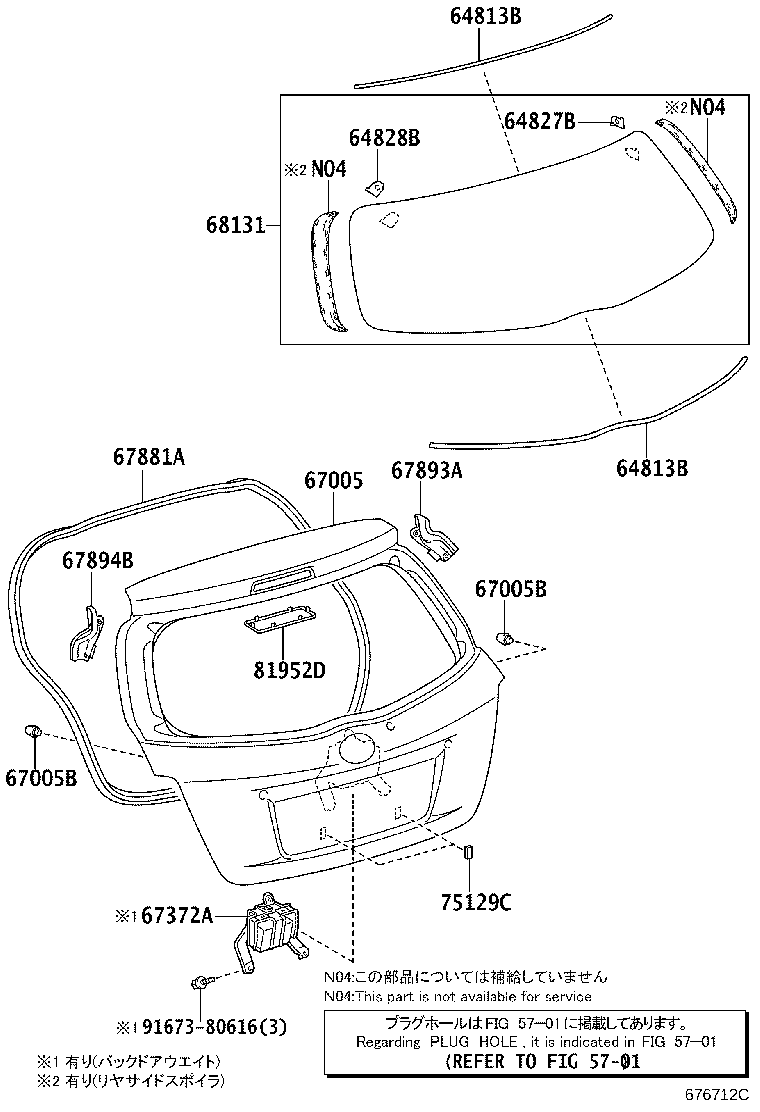

ILLUST NO. 1 OF 2(1012-1701) ; (1709- )GRS
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64813B - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 56117-50140 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 64813B - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 56117-50140 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 64827B - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-52090 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 64828B - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-52090 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-52C40 |
KSP130..F..CBU Mﾊﾟｯｹｰｼﾞ*(M) |
1 | ||
| 67005-52C20 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09146 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09146 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-52210 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67881-52180 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67893A - PROTECTOR, BACK DOOR PANEL, NO.1 | ||||
| 67893-52090 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 67894B - PROTECTOR, BACK DOOR PANEL, NO.2 | ||||
| 67894-52090 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-52600 |
KSP130..F..CBU *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ,Mﾊﾟｯｹｰｼﾞ*(M) |
1 | ||
| 68105-52620 |
KSP130,NCP131,NSP13#..CBU *EHT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-13020 |
KSP130,NCP131,NSP13#..CBU 厚さ=5.0 |
2 | ||
| 75129-21010 |
KSP130,NCP131,NSP13#..CBU 厚さ=7.0 |
2 | ||
| 81952D - COVER, REAR LAMP | ||||
| 81952-52020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 5701 | ||||
ILLUST NO. 2 OF 2(1012-1701) ; (1709- )GRS
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67751-52170C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 67751-52180C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10161 |
KSP130,NCP131,NSP13#..CBU |
9 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10161 |
KSP130,NCP131,NSP13#..CBU |
9 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10161 |
KSP130,NCP131,NSP13#..CBU |
9 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10161 |
KSP130,NCP131,NSP13#..CBU |
9 | ||
| 67751B - RETAINER(FOR BACK DOOR TRIM BOARD) | ||||
| 67771-58010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 67751B - RETAINER(FOR BACK DOOR TRIM BOARD) | ||||
| 67771-58010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 74811D - HANDLE, DOOR PULL | ||||
| 74811-13010C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,5# |
1 | ||
| 74811-13010C0 |
KSP130,NSP13#..F..CBU BLACK,TRIM1#,2#,4#,5# |
1 | ||
