KSP130-AHXNK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )KSP130,NCP131,NSP130

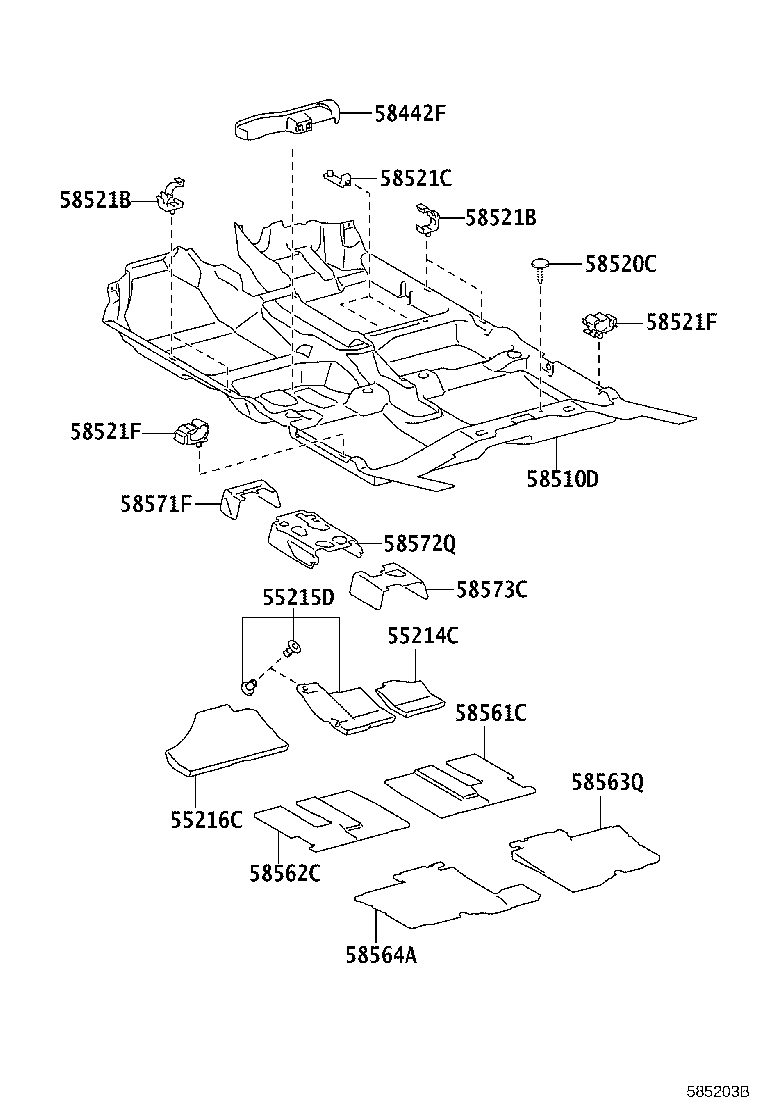

Click highlighted areas on diagram

diagram 55214C 55215D 55216C 58442F 58510D 58520C 58521B 58521B 58521C 58521F 58521F 58561C 58562C 58563Q 58564A 58571F 58572Q 58573C
Part # Description Qty Price
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-52160

KSP130,NCP131,NSP13#..CBU

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-52150

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 1
55216C - PAD, DASH PANEL INSULATOR, NO.4
55216-52010

KSP130,NCP131,NSP13#..CBU

 1
58442F - COVER, JACK
58442-52060

KSP130,NCP131,NSP13#..CBU

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-52K60B0

KSP130,NSP130..F..CBU

GRAY,TRIM1#,2#,4#,5#

 1
58510-52K70B0

KSP130,NSP130..F..CBU

寒冷地仕様,GRAY,TRIM1#,2#,4#,5#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049C0

KSP130,NSP13#..F..CBU

BLACK,TRIM1#,2#,4#,5#

 1
58521B - HOOK, FLOOR CARPET
58521-52040

KSP130,NCP131,NSP13#..CBU

 4
58521B - HOOK, FLOOR CARPET
58521-52040

KSP130,NCP131,NSP13#..CBU

 4
58521C - HOOK, FLOOR CARPET NO.2
58522-52030

KSP130,NCP131,NSP13#..CBU

 2
58521F - HOOK, FLOOR CARPET
58521-52040

KSP130,NCP131,NSP13#..CBU

 2
58521F - HOOK, FLOOR CARPET
58521-52040

KSP130,NCP131,NSP13#..CBU

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-52191

KSP130,NCP131,NSP13#..CBU

 1
58561-52190

KSP130,NCP131,NSP13#..CBU

 1
58562C - SILENCER, FRONT FLOOR, NO.2
58562-52151

KSP130,NCP131,NSP13#..CBU

 1
58562-52150

KSP130,NCP131,NSP13#..CBU

 1
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-52201

KSP130,NCP131,NSP130..CBU

 1
58563-52200

KSP130,NCP131,NSP130..CBU

 1
58564A - SILENCER, FRONT FLOOR, NO.4
58564-52221

KSP130,NCP131,NSP130..CBU

 1
58564-52220

KSP130,NCP131,NSP130..CBU

 1
58571F - PAD, FRONT FLOOR, FRONT
58571-52030

KSP130,NCP131,NSP130..CBU

 1
58572Q - PAD, FRONT FLOOR, FRONT NO.2
58572-52040

KSP130,NCP131,NSP130..CBU

 1
58573C - PAD, FRONT FLOOR CENTER
58573-52020

KSP130,NCP131,NSP130..CBU

 1
