KSP130-AHXNK (2010)
Toyota Vitz
Production
Dec 2010
-
Apr 2014
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1012-1404)1KRFE

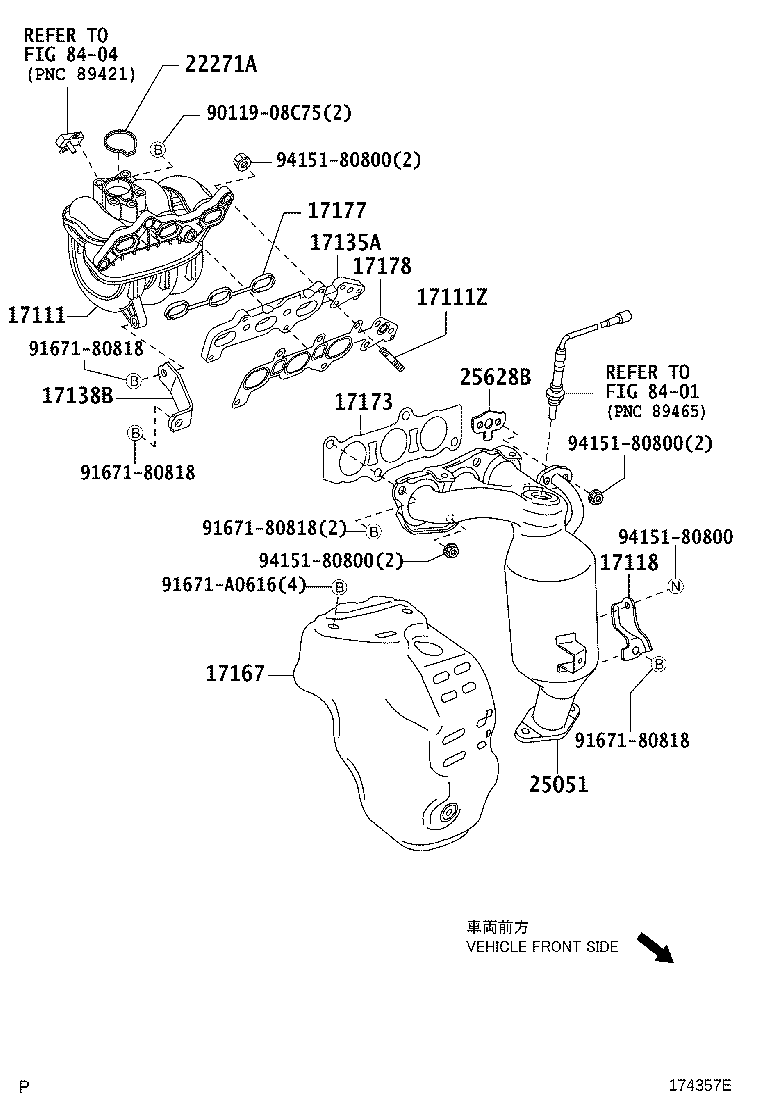

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-40011 |
1KRFE..KSP130..CBU |
1 | ||
| 17101-40012 |
1KRFE..KSP130..CBU |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80845 |
1KRFE..KSP130..CBU |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-40010 |
1KRFE..KSP130..CBU |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-40020 |
1KRFE..KSP130..CBU |
1 | ||
| 17138B - STAY, INTAKE MANIFOLD | ||||
| 17138-40040 |
1KRFE..KSP130..CBU |
1 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-40020 |
1KRFE..KSP130..CBU |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-40020 |
1KRFE..KSP130..CBU |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-40020 |
1KRFE..KSP130..CBU |
1 | ||
| 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 | ||||
| 17178-40020 |
1KRFE..KSP130..CBU |
1 | ||
| 22271A - GASKET, THROTTLE BODY | ||||
| 22271-40010 |
1KRFE..KSP130..CBU |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-40090 |
1KRFE..KSP130..CBU |
1 | ||
| 25628B - GASKET, EGR INLET | ||||
| 25628-40020 |
1KRFE..KSP130..CBU |
1 | ||
| Common parts | ||||
| 90119-08C75 | ||||
| 91671-80818 | ||||
| 91671-A0616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8404 | ||||
