KSP130-AHXGK (2014)
Toyota Vitz
Production
Apr 2014
-
Jan 2017
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1404- )1KRFE

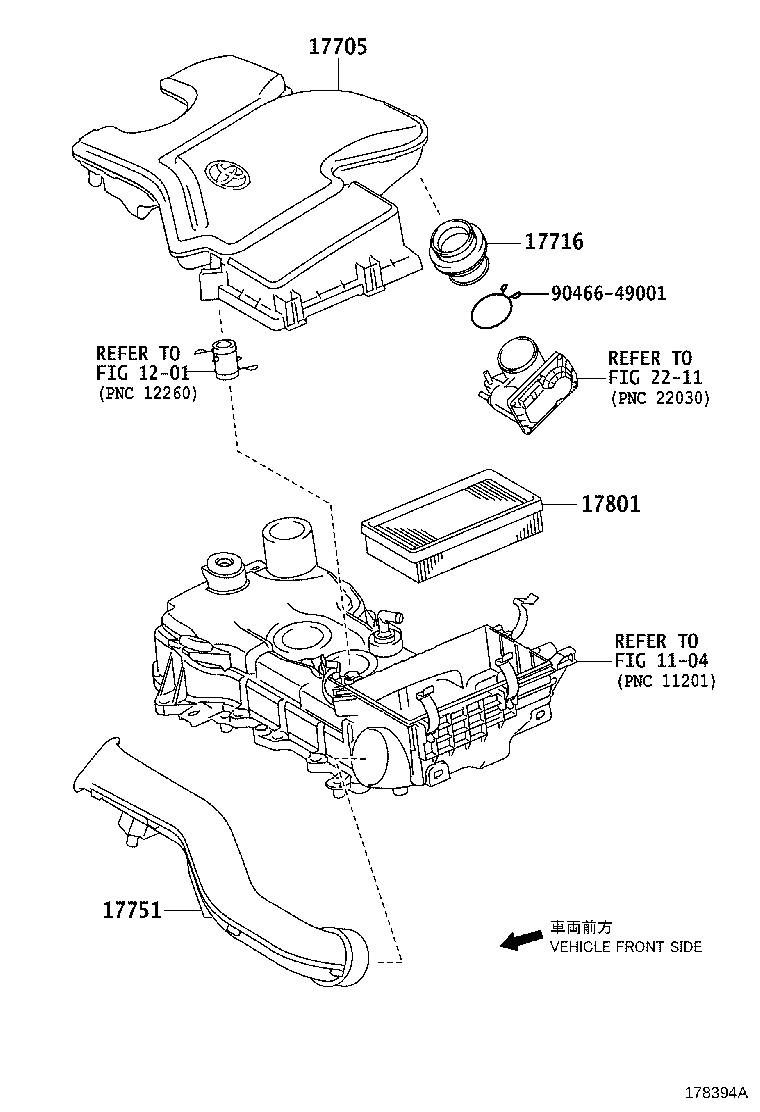

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-40110 |
1KRFE..KSP130..CBU |
1 | ||
| 17705-40130 |
1KRFE..KSP130..CBU |
1 | ||
| 17716 - SUPPORT,AIR CLEANER CAP | ||||
| 17716-40040 |
1KRFE..KSP130..CBU |
1 | ||
| 17716-40040 |
1KRFE..KSP130..CBU |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-40080 |
1KRFE..KSP130..CBU |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-23030 |
1KRFE..KSP130..CBU |
1 | ||
| 17801-21060 |
1KRFE..KSP130..CBU |
1 | ||
| Common parts | ||||
| 90466-49001 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1201 | ||||
| 2211 | ||||
