KSP130-AHXGK (2014)
Toyota Vitz
Production
Apr 2014
-
Jan 2017
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1404- )1KRFE

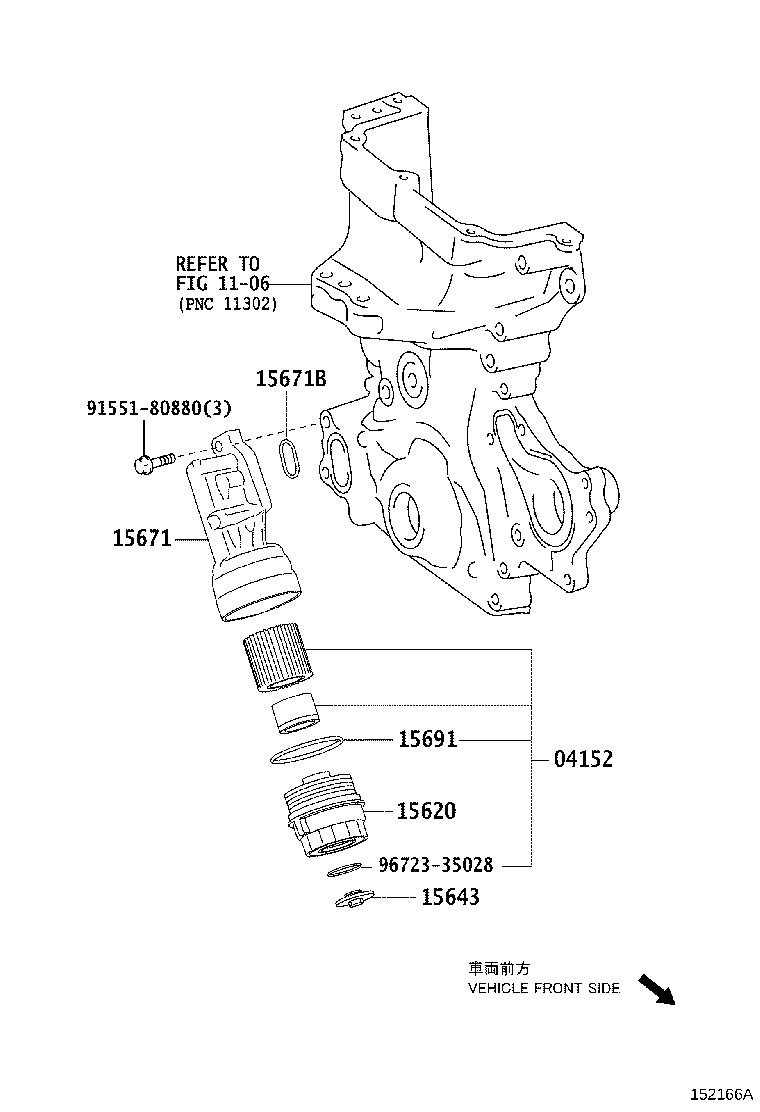

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04152 - ELEMENT KIT, OIL FILTER | ||||
| 04152-40060 |
1KRFE..KSP130..CBU |
1 | ||
| 04152-40060 |
1KRFE..KSP130..CBU |
1 | ||
| 15620 - CAP ASSY, OIL FILTER | ||||
| 15620-40030 |
1KRFE..KSP130..CBU |
1 | ||
| 15620-40030 |
1KRFE..KSP130..CBU |
1 | ||
| 15643 - PLUG, OIL FILTER DRAIN | ||||
| 15643-31050 |
1KRFE..KSP130..CBU |
1 | ||
| 15643-31050 |
1KRFE..KSP130..CBU |
1 | ||
| 15671 - BRACKET, OIL FILTER | ||||
| 15671-40010 |
1KRFE..KSP130..CBU |
1 | ||
| 15671-40010 |
1KRFE..KSP130..CBU |
1 | ||
| 15671B - GASKET, OIL FILTER BRACKET | ||||
| 15691-40020 |
1KRFE..KSP130..CBU |
1 | ||
| 15691-40020 |
1KRFE..KSP130..CBU |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 90301-69011 |
1KRFE..KSP130..CBU |
1 | ||
| 90301-69011 |
1KRFE..KSP130..CBU |
1 | ||
| Common parts | ||||
| 91551-80880 | ||||
| 96723-35028 | ||||
| Linked diagrams | ||||
| 1106 | ||||
