KSP130-AHXGK (2010)
Toyota Vitz
(1012- )KSP130,NCP131,NHP130,NSP130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

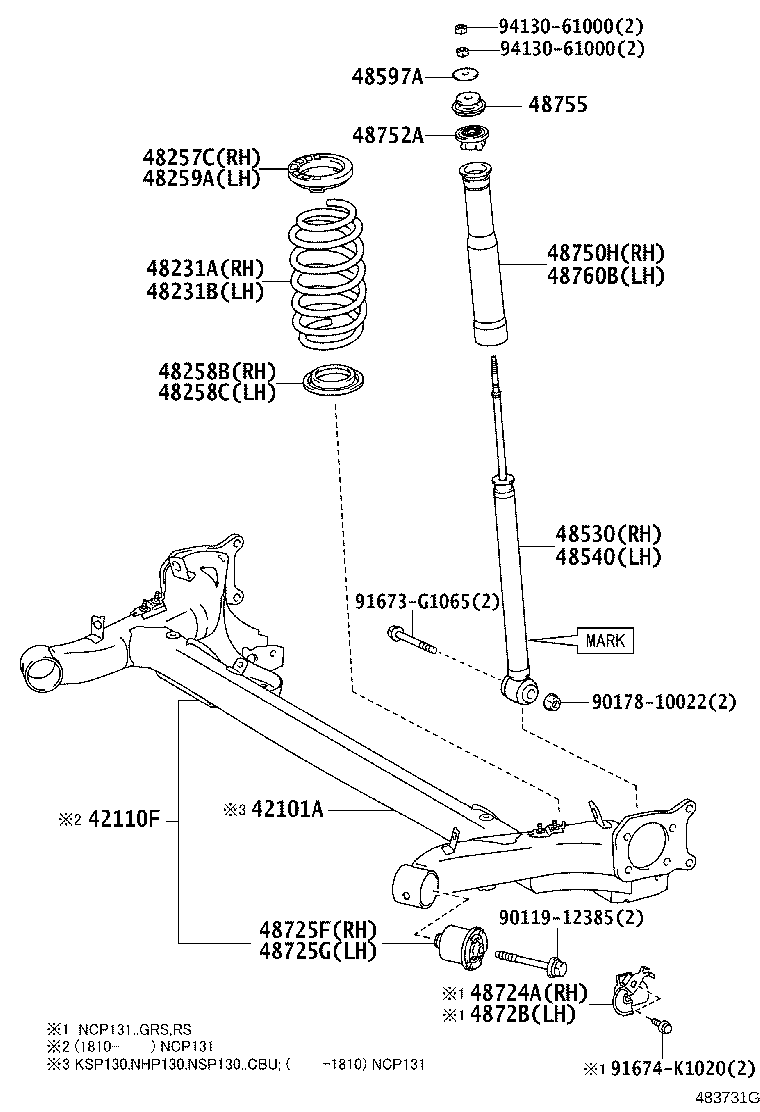

| 42101A - BEAM SUB-ASSY, REAR AXLE | ||||
| 42101-52192 |
KSP130,NSP130..JEWL ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 42101-52192 |
KSP130,NSP130..(F,JEWL)..CBU ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 42101-52192 |
KSP130,NSP130..F..CBU ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 42101-52192 |
KSP130,NSP130..(F,JEWL)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ |
1 | ||
| 42101-52212 |
KSP130,NSP130..(F,JEWL)..CBU |
1 | ||
| 42101-52192 |
KSP130,NSP130..F..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 42101-52192 |
KSP130,NSP130..JEWL ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 42101-52192 |
KSP130,NSP130..F..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 42101-52192 |
KSP130,NSP130..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-52E70 |
KSP130,NSP130..(F,JEWL)..CBU ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 48231-52E10 |
KSP130,NSP130..(F,JEWL)..CBU |
1 | ||
| 48231-52E70 |
KSP130,NSP130..(F,JEWL)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-52E10 |
KSP130,NSP130..(F,JEWL)..CBU |
1 | ||
| 48231-52E70 |
KSP130,NSP130..(F,JEWL)..CBU ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 48231-52E70 |
KSP130,NSP130..(F,JEWL)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-52010 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-52010 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-52F80 |
KSP130,NSP130..(F,JEWL)..CBU ﾏｰｸ 48530−52F80,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15TJ ｱﾙﾐ |
1 | ||
| 48530-52F81 |
KSP130,NSP130..(F,JEWL)..CBU ﾏｰｸ 48530−52F81,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15TJ ｱﾙﾐ |
1 | ||
| 48530-52F82 |
KSP130,NSP130..(F,JEWL)..CBU ﾏｰｸ 48530−52F82,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.TJ ｱﾙﾐ |
1 | ||
| 48530-52F70 |
KSP130,NSP130..(F,JEWL)..CBU ﾏｰｸ 48530−52F70 |
1 | ||
| 48530-52F71 |
KSP130,NSP130..(F,JEWL)..CBU ﾏｰｸ 48530−52F71 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-52F80 |
KSP130,NSP130..(F,JEWL)..CBU ﾏｰｸ 48530−52F80,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15TJ ｱﾙﾐ |
1 | ||
| 48530-52F70 |
KSP130,NSP130..(F,JEWL)..CBU ﾏｰｸ 48530−52F70 |
1 | ||
| 48530-52F81 |
KSP130,NSP130..(F,JEWL)..CBU ﾏｰｸ 48530−52F81,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15TJ ｱﾙﾐ |
1 | ||
| 48530-52F71 |
KSP130,NSP130..(F,JEWL)..CBU ﾏｰｸ 48530−52F71 |
1 | ||
| 48530-52F82 |
KSP130,NSP130..(F,JEWL)..CBU ﾏｰｸ 48530−52F82,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.TJ ｱﾙﾐ |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 90201-10320 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-52120 |
KSP130,NSP130..(F,JEWL)..CBU ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 48725-52120 |
KSP130,NSP130..F..CBU ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48725-52120 |
KSP130,NSP130..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48725-52120 |
KSP130,NCP131,NSP130..(F,JEWL,U)..CBU |
1 | ||
| 48725-52120 |
KSP130,NSP130..(F,JEWL)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ |
1 | ||
| 48725-52120 |
KSP130,NSP130..JEWL ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48725-52120 |
KSP130,NSP130..F..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48725-52120 |
KSP130,NSP130..JEWL ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48725-52120 |
KSP130,NSP130..F..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-52120 |
KSP130,NSP130..F..CBU ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48725-52120 |
KSP130,NSP130..JEWL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48725-52120 |
KSP130,NCP131,NSP130..(F,JEWL,U)..CBU |
1 | ||
| 48725-52120 |
KSP130,NSP130..(F,JEWL)..CBU ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ |
1 | ||
| 48725-52120 |
KSP130,NSP130..JEWL ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48725-52120 |
KSP130,NSP130..F..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48725-52120 |
KSP130,NSP130..F..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48725-52120 |
KSP130,NSP130..JEWL ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48725-52120 |
KSP130,NSP130..(F,JEWL)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-52200 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 48750-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 48752A - STOPPER, REAR SUSPENSION SUPPORT | ||||
| 48752-52010 |
KSP130,NCP131,NSP130..CBU |
2 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-52010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 48750-52200 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| Common parts | ||||
| 90119-12385 | ||||
| 90178-10022 | ||||
| 91673-G1065 | ||||
| 91674-K1020 | ||||
| 94130-61000 | ||||
