KSP130-AHXGK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

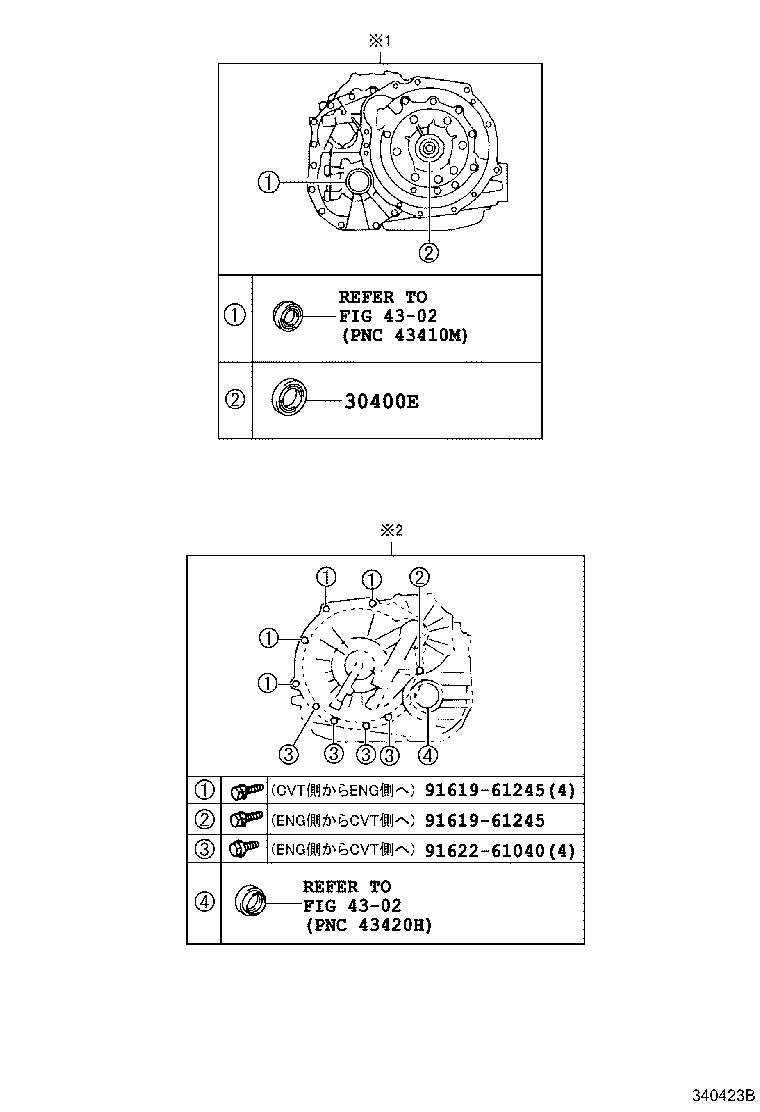

ILLUST NO. 3 OF 3(1012- )KSP130

Click highlighted areas on diagram

K410

diagram 30400E 4302 4302 9161961245 9161961245 9162261040
Part # Description Qty Price
30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP)
90311-42039

KSP130,NSP130..CBU

 1
Common parts
91619-61245
91622-61040
Linked diagrams
4302

ILLUST NO. 2 OF 3(1012- )KSP130

Click highlighted areas on diagram

K410

diagram 1603 1603 1603 1603 1603 30400 30400N 30400P 33493C 33493D 3402 35106L 35106P 35123B 35125E 35125F 35125G 35133 35133A 35141D 35141E 35141F 35141J 35145D 35150B 35150C 35168C 35206D 35206E 35300C 35330D 35330E 35394D 35394D 35572C 8202 8202 8202 8202 8401 8401 8410 8410 8410 8410 8410 8410 8410 9010506053 9010506076 9010508071 9094901C99 9155180820 91611B0616 9167180816 9411050800 9451200800
Part # Description Qty Price
30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400-52152

KSP130..CBU

K410

 1
30400-52151

KSP130..CBU

K410

 1
30400N - PLUG, REFILL(CVT)
90341-18061

KSP130,NSP130..CBU

識別記号=TC

 1
90341-18077

KSP130,NSP130..CBU

識別記号=FE

 1
30400P - GASKET, REFILL PLUG(CVT)
90430-18008

KSP130,NCP131,NSP13#..CVT..CBU

 1
33493C - COOLER, TRANSMISSION OIL
33493-52020

KSP130..CBU

 1
33493D - RING, O (FOR TRANSMISSION OIL COOLER)
90301-20012

KSP130,NCP131,NSP13#..CVT..CBU

 2
35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106-52060

KSP130..CBU

 1
35106P - BOLT(FOR TRANSAXLE OIL PAN)
90119-06173

KSP130,NSP130..CBU

 15
35123B - SKIRT,TRANSMISSION BREATHER
35123-52011

KSP130..CBU

 1
35125E - TUBE, OVERFLOW(CVT)
35125-52130

KSP130..CBU

 1
35125F - PLUG, OVERFLOW(CVT)
90341-12034

KSP130,NCP131,NSP13#..CVT..CBU

 1
35125G - GASKET, OVERFLOW PLUG(CVT)
90430-12008

KSP130,NCP131,NSP13#..CVT..CBU

 1
35133 - PLUG, TRANSMISSION OIL FILLER
35133-52010

KSP130..CBU

 1
35133A - RING, O (FOR TRANSMISSION OIL FILLER PLUG)
90301-11001

KSP130..CBU

 1
35141D - HOSE(FOR BREATHER PLUG)
90447-11055

KSP130..CBU

 1
35141E - RING, O(FOR BREATHER PLUG)
90301-08015

KSP130,NSP130..CBU

 1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03149

KSP130,NCP131,NSP13#..CVT..CBU

 1
35141J - PLUG, BREATHER, NO.2(CVT)
90930-03156

KSP130..CBU

 1
35150B - PLUG ASSY, TRANSMISSION CASE
35150-44010

KSP130..CBU

 1
35150-48010

KSP130..CBU

 1
35150C - RING, O (FOR TRANSMISSION CASE PLUG)
90301-09173

KSP130..CBU

 1
35168C - GASKET, TRANSAXLE OIL PAN(CVT)
35168-52040

KSP130..CBU

 1
35330D - STRAINER ASSY, OIL
35330-52031

KSP130..CBU

 1
35330E - RING, O (FOR OIL STRAINER)
90301-22014

KSP130,NCP131,NSP13#..CVT..CBU

 1
35394D - MAGNET, OIL CLEANER(CVT)
35394-48010

KSP130..CBU

 3
35394D - MAGNET, OIL CLEANER(CVT)
35394-48010

KSP130..CBU

 3
35572C - LEVER, TRANSMISSION CONTROL SHAFT
35572-52070

KSP130,NSP130..CBU

 1
Common parts
90105-06053
90105-06076
90105-08071
90949-01C99
91551-80820
91611-B0616
91671-80816
94110-50800
94512-00800
Linked diagrams
1603
3402
8202
8401
8410

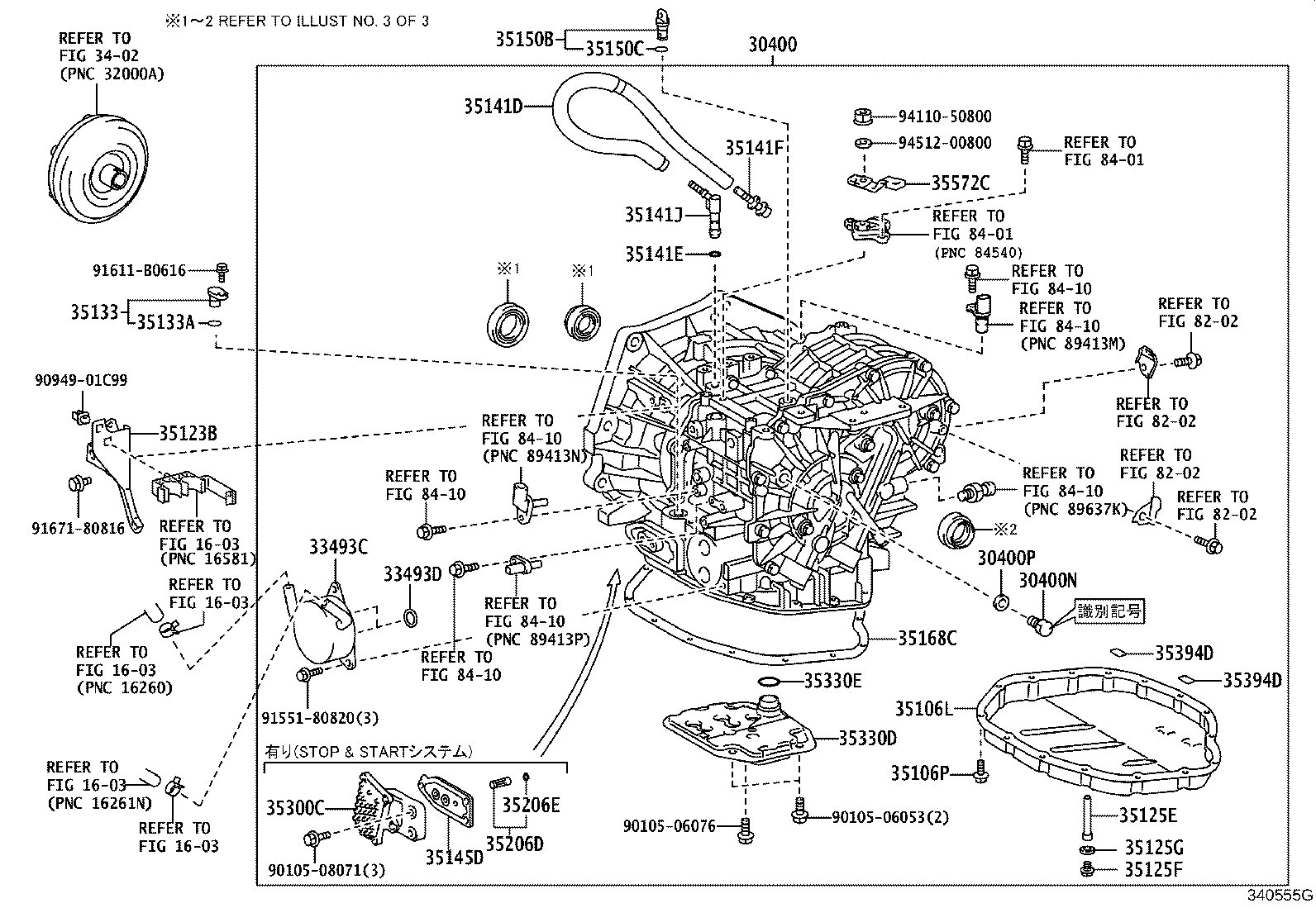

ILLUST NO. 1 OF 3(1012- )KSP130,NCP131,NSP13#..CVT

Click highlighted areas on diagram

K310,K310F,K312,K410,K411

diagram 30140
Part # Description Qty Price
30140 - TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)
30140-52152

KSP130..CBU

K410

 1
30140-52151

KSP130..CBU

K410

 1
