ZZV50G-BWSMK (1998)

Toyota Vista/Vista Ardeo

Production Jun 1998 - Jul 2003
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9806- )

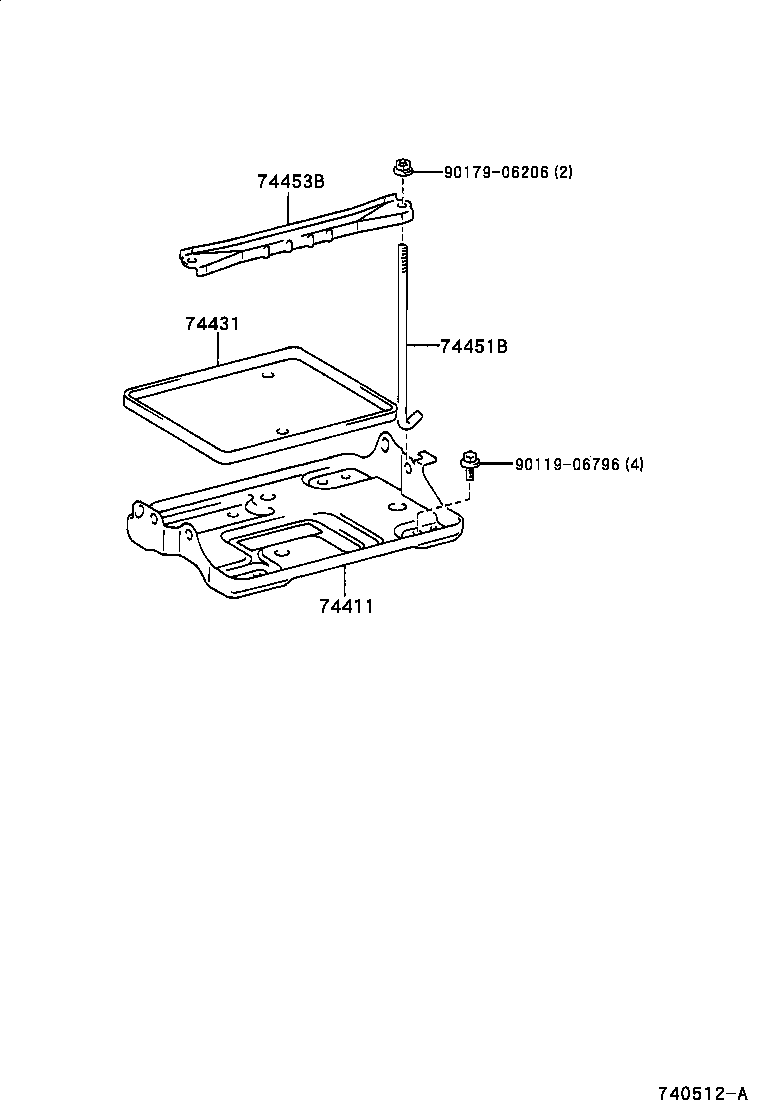

Click highlighted areas on diagram

diagram 74411 74431 74451B 74453B 9011906796 9017906206
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-32010

SV55,ZZV50

ｱﾘ(ﾊﾞﾂﾃﾘ=34B19L)

 1
74411-32020

SV55,ZZV50

ｱﾘ(ﾊﾞﾂﾃﾘ=46B24L)

 1
74431 - TRAY, BATTERY
74431-14020

AZV5#,SV5#,ZZV50

ｱﾘ(ﾊﾞﾂﾃﾘ=46B24L)

 1
74431-14050

AZV50,SV5#,ZZV50

ｱﾘ(ﾊﾞﾂﾃﾘ=34B19L)

 1
74451B - BOLT, BATTERY CLAMP
74451-20060

AZV5#,SV5#,ZZV50

 2
74453B - BAR, BATTERY SET PLATE
74453-32020

AZV5#,SV5#,ZZV50

ｱﾘ(ﾊﾞﾂﾃﾘ=46B24L)

 1
74453-32010

AZV50,SV5#,ZZV50

ｱﾘ(ﾊﾞﾂﾃﾘ=34B19L)

 1
Common parts
90119-06796
90179-06206
