ZZV50G-BWSMK (1998)
Toyota Vista/Vista Ardeo
(9806- )

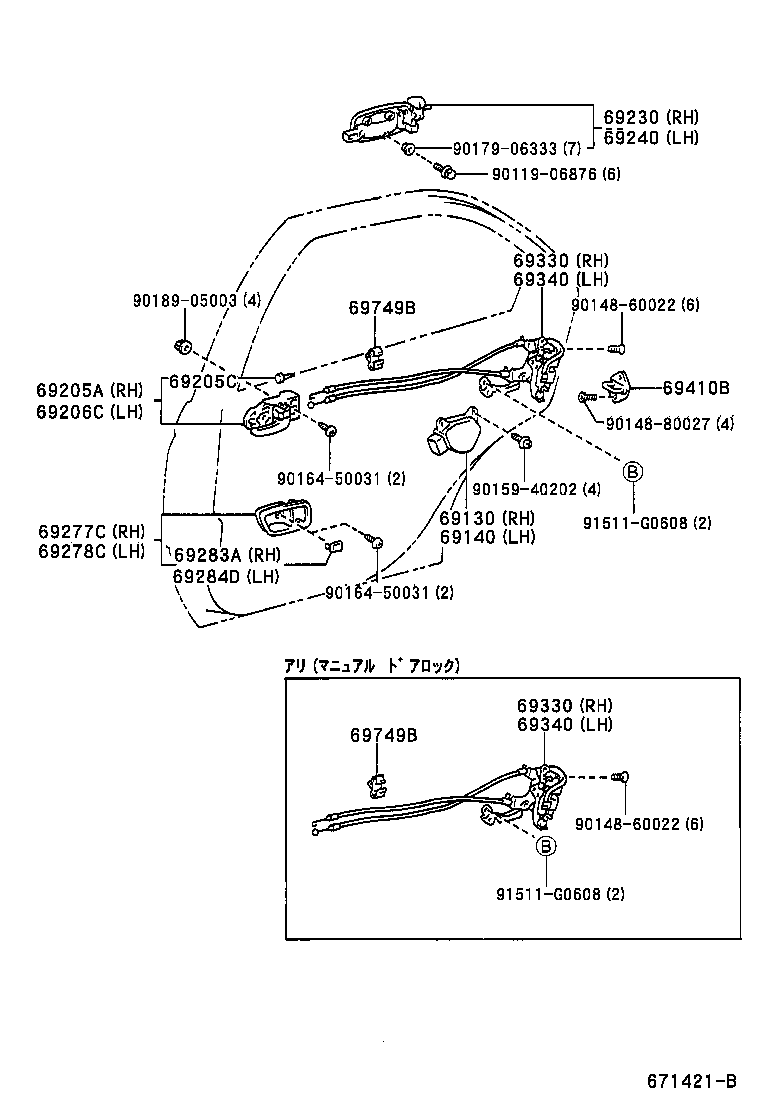

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-32040 |
SV5#,ZZV50 |
1 | ||
| 69130-51010 |
AZV5#,SV5#,ZZV50 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-32040 |
SV5#,ZZV50 |
1 | ||
| 69140-51010 |
AZV5#,SV5#,ZZV50 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-32080A0 |
SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69205-17010A0 |
AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L IVORY,TRIM0# |
1 | ||
| 69205-17010B0 |
AZV5#,SV5#,ZZV50 STONE,TRIM1# |
1 | ||
| 69205-32080G1 |
SV5#,ZZV50 MIST GREEN,TRIM6# |
1 | ||
| 69205-17010A0 |
AZV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69205-17010A0 |
AZV50,SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-17010A0 |
AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L IVORY,TRIM0# |
1 | ||
| 69206-32080G1 |
SV5#,ZZV50 MIST GREEN,TRIM6# |
1 | ||
| 69206-17010A0 |
AZV50,SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69206-17010A0 |
AZV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69206-17010B0 |
AZV5#,SV5#,ZZV50 STONE,TRIM1# |
1 | ||
| 69206-32080A0 |
SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-32080A0 |
SV5#,ZZV50 SUPER WHITE 2,040 |
1 | ||
| 69230-32080D0 |
SV5#,ZZV50 RED MC.,3M8 |
1 | ||
| 69230-32080B1 |
SV5#,ZZV50 SILVER ME,199 |
1 | ||
| 69230-32080B0 |
SV5#,ZZV50 SILVER ME.GR.,1C5 |
1 | ||
| 69230-32080A1 |
SV5#,ZZV50 ｴｸｾﾚﾝﾄ ｴﾃﾞｲｼﾖﾝ V *(B),SUPER WHITE PM.,051 ,28Y |
1 | ||
| 69230-32090B1 |
AZV50,SV5#,ZZV50 SILVER ME.,199 |
1 | ||
| 69230-32080J0 |
SV5#,ZZV50 BLUE M.M.,8L5 |
1 | ||
| 69230-32090D0 |
SV5#,ZZV50 RED MC.,3M8 |
1 | ||
| 69230-32090B0 |
AZV50,SV5#,ZZV50 SILVER ME.GR.,1C5 |
1 | ||
| 69230-32090A1 |
SV5#,ZZV50..A180,A200,A200G,N180,N200,N200G SU. WHITE PM.,051 |
1 | ||
| 69230-32090G0 |
AZV50,SV5#,ZZV50 DARK GREEN MC.,6R4 |
1 | ||
| 69230-32080A1 |
SV5#,ZZV50 ｴｸｾﾚﾝﾄ ｴﾃﾞｲｼﾖﾝ *(A),SUPER WHITE PM.,051 ,28Y |
1 | ||
| 69230-32090B2 |
AZV5#,ZZV50 SILVER ME.,1C0 |
1 | ||
| 69230-32090A0 |
AZV5#,SV5#,ZZV50 SUPER WHITE 2,040 |
1 | ||
| 69230-32080G0 |
SV5#,ZZV50 DK.GREEN MC.,6R4 |
1 | ||
| 69230-32080C0 |
SV5#,ZZV50 BLACK MC.,209 |
1 | ||
| 69230-32090E0 |
AZV5#,ZZV50 BEIGE ME.,4P7 |
1 | ||
| 69230-32090G1 |
AZV5#,ZZV50 JADE GREEN M.M.,6S9 |
1 | ||
| 69230-32090J0 |
AZV5#,SV5#,ZZV50 DK.BLUE M.M.,8P4 |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-32090A1 |
SV5#,ZZV50..A180,A200,A200G,N180,N200,N200G SU. WHITE PM.,051 |
1 | ||
| 69240-32080C0 |
SV5#,ZZV50 BLACK MC.,209 |
1 | ||
| 69240-32080B1 |
SV5#,ZZV50 SILVER ME,199 |
1 | ||
| 69240-32080A1 |
SV5#,ZZV50 ｴｸｾﾚﾝﾄ ｴﾃﾞｲｼﾖﾝ *(A),SUPER WHITE PM.,051 ,28Y |
1 | ||
| 69240-32090B1 |
AZV50,SV5#,ZZV50 SILVER ME.,199 |
1 | ||
| 69240-32080B0 |
SV5#,ZZV50 SILVER ME.GR.,1C5 |
1 | ||
| 69240-32080A0 |
SV5#,ZZV50 SUPER WHITE 2,040 |
1 | ||
| 69240-32080D0 |
SV5#,ZZV50 RED MC.,3M8 |
1 | ||
| 69240-32080G0 |
SV5#,ZZV50 DK.GREEN MC.,6R4 |
1 | ||
| 69240-32090D0 |
SV5#,ZZV50 RED MC.,3M8 |
1 | ||
| 69240-32080J0 |
SV5#,ZZV50 BLUE M.M.,8L5 |
1 | ||
| 69240-32090B0 |
AZV50,SV5#,ZZV50 SILVER ME.GR.,1C5 |
1 | ||
| 69240-32080A1 |
SV5#,ZZV50 ｴｸｾﾚﾝﾄ ｴﾃﾞｲｼﾖﾝ V *(B),SUPER WHITE PM.,051 ,28Y |
1 | ||
| 69240-32090G0 |
AZV50,SV5#,ZZV50 DARK GREEN MC.,6R4 |
1 | ||
| 69240-32090E0 |
AZV5#,ZZV50 BEIGE ME.,4P7 |
1 | ||
| 69240-32090A0 |
AZV5#,SV5#,ZZV50 SUPER WHITE 2,040 |
1 | ||
| 69240-32090J0 |
AZV5#,SV5#,ZZV50 DK.BLUE M.M.,8P4 |
1 | ||
| 69240-32090B2 |
AZV5#,ZZV50 SILVER ME.,1C0 |
1 | ||
| 69240-32090G1 |
AZV5#,ZZV50 JADE GREEN M.M.,6S9 |
1 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69277-30150A0 |
SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69277-22090A1 |
AZV50,SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69277-22090A1 |
AZV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69277-22090A1 |
AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L IVORY,TRIM0# |
1 | ||
| 69277-22090B5 |
AZV5#,SV5#,ZZV50 STONE,TRIM1# |
1 | ||
| 69277-30150G2 |
SV5#,ZZV50 MIST GREEN,TRIM6# |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69278-30080A0 |
SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69278-22050A1 |
AZV50,SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69278-30080G2 |
SV5#,ZZV50 MIST GREEN,TRIM6# |
1 | ||
| 69278-22050B5 |
AZV5#,SV5#,ZZV50 STONE,TRIM1# |
1 | ||
| 69278-22050A1 |
AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L IVORY,TRIM0# |
1 | ||
| 69278-22050A1 |
AZV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30040A1 |
AZV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69283-30040G3 |
SV5#,ZZV50 MIST GREEN,TRIM6# |
1 | ||
| 69283-30040A1 |
AZV50,SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69283-30040A1 |
AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L IVORY,TRIM0# |
1 | ||
| 69283-30040B8 |
AZV5#,SV5#,ZZV50 STONE,TRIM1# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30040B8 |
AZV5#,SV5#,ZZV50 STONE,TRIM1# |
1 | ||
| 69284-30040G3 |
SV5#,ZZV50 MIST GREEN,TRIM6# |
1 | ||
| 69284-30040A1 |
AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L IVORY,TRIM0# |
1 | ||
| 69284-30040A1 |
AZV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69284-30040A1 |
AZV50,SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-32370 |
SV5#,ZZV50 ｱﾘ(ﾊﾟﾜ- ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69330-32380 |
SV55,ZZV50 |
1 | ||
| 69330-32390 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-32370 |
SV5#,ZZV50 ｱﾘ(ﾊﾟﾜ- ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69330-32380 |
SV55,ZZV50 |
1 | ||
| 69330-32390 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-32390 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 69340-32370 |
SV5#,ZZV50 ｱﾘ(ﾊﾟﾜ- ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69340-32380 |
SV55,ZZV50 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-32390 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 69340-32370 |
SV5#,ZZV50 ｱﾘ(ﾊﾟﾜ- ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69340-32380 |
SV55,ZZV50 |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-20110 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-32040 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-32040 |
AZV5#,SV5#,ZZV50 |
2 | ||
| Common parts | ||||
| 90119-06876 | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90164-50031 | ||||
| 90179-06333 | ||||
| 90189-05003 | ||||
| 91511-G0608 | ||||
