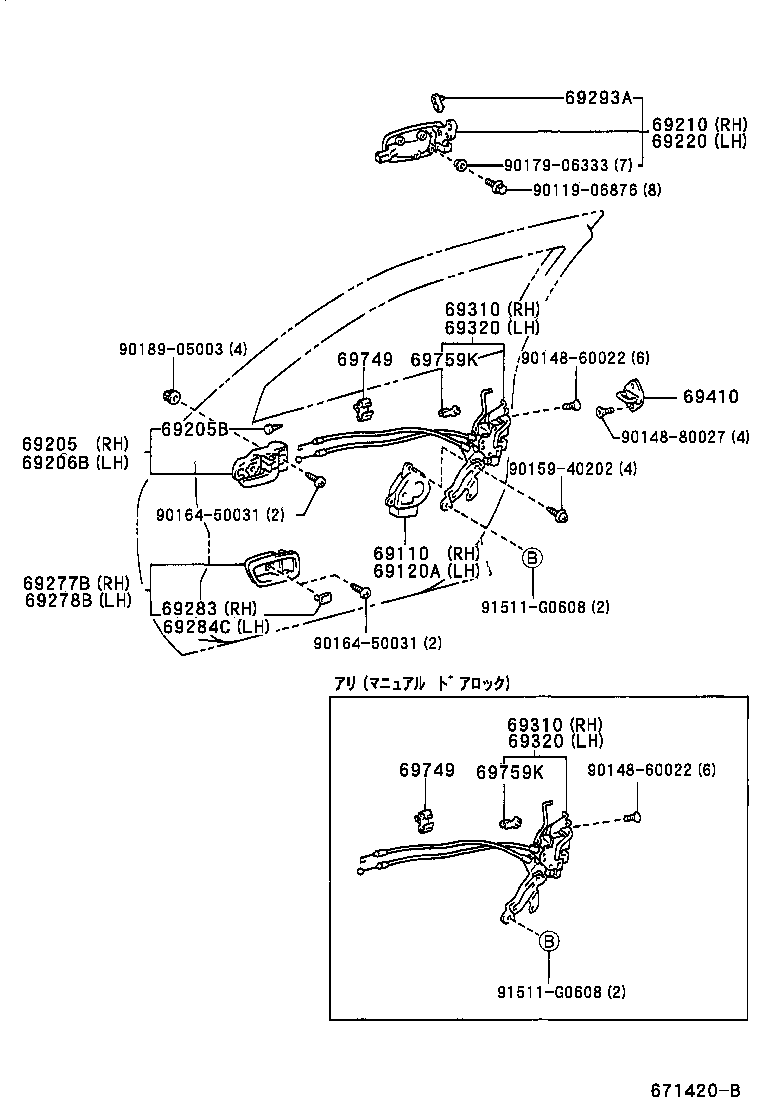

ZZV50G-BWSMK (1998)
Toyota Vista/Vista Ardeo
(9806- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-32020 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-32030 |
SV5#,ZZV50 |
1 | ||
| 69120-32020 |
AZV5#,SV5#,ZZV50 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-17010A0 |
AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L IVORY,TRIM0# |
1 | ||
| 69205-32080G1 |
SV5#,ZZV50 MIST GREEN,TRIM6# |
1 | ||
| 69205-17010A0 |
AZV50,SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69205-17010B0 |
AZV5#,SV5#,ZZV50 STONE,TRIM1# |
1 | ||
| 69205-32080A0 |
SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69205-17010A0 |
AZV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-17010A0 |
AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L IVORY,TRIM0# |
1 | ||
| 69206-17010A0 |
AZV50,SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69206-32080G1 |
SV5#,ZZV50 MIST GREEN,TRIM6# |
1 | ||
| 69206-17010A0 |
AZV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69206-17010B0 |
AZV5#,SV5#,ZZV50 STONE,TRIM1# |
1 | ||
| 69206-32080A0 |
SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-32130A1 |
SV5#,ZZV50 ｴｸｾﾚﾝﾄ ｴﾃﾞｲｼﾖﾝ *(A),SUPER WHITE PM.,051 ,28Y |
1 | ||
| 69210-32130A0 |
SV5#,ZZV50 SUPER WHITE 2,040 |
1 | ||
| 69210-32130G0 |
SV5#,ZZV50 DK.GREEN MC.,6R4 |
1 | ||
| 69210-32130D0 |
SV5#,ZZV50 RED MC.,3M8 |
1 | ||
| 69210-32130B1 |
SV5#,ZZV50 SILVER ME,199 |
1 | ||
| 69210-32130A1 |
SV5#,ZZV50 ｴｸｾﾚﾝﾄ ｴﾃﾞｲｼﾖﾝ V *(B),SUPER WHITE PM.,051 ,28Y |
1 | ||
| 69210-32130J0 |
SV5#,ZZV50 BLUE M.M.,8L5 |
1 | ||
| 69210-32140B0 |
AZV50,SV5#,ZZV50 SILVER ME.GR.,1C5 |
1 | ||
| 69210-32140A1 |
SV5#,ZZV50..A180,A200,A200G,N180,N200,N200G SU. WHITE PM.,051 |
1 | ||
| 69210-32140G0 |
AZV50,SV5#,ZZV50 DARK GREEN MC.,6R4 |
1 | ||
| 69210-32140B1 |
AZV50,SV5#,ZZV50 SILVER ME.,199 |
1 | ||
| 69210-32130B0 |
SV5#,ZZV50 SILVER ME.GR.,1C5 |
1 | ||
| 69210-32140D0 |
SV5#,ZZV50 RED MC.,3M8 |
1 | ||
| 69210-32140J0 |
AZV5#,SV5#,ZZV50 DK.BLUE M.M.,8P4 |
1 | ||
| 69210-32140A0 |
AZV5#,SV5#,ZZV50 SUPER WHITE 2,040 |
1 | ||
| 69210-32140G1 |
AZV5#,ZZV50 JADE GREEN M.M.,6S9 |
1 | ||
| 69210-32140B2 |
AZV5#,ZZV50 SILVER ME.,1C0 |
1 | ||
| 69210-32140E0 |
AZV5#,ZZV50 BEIGE ME.,4P7 |
1 | ||
| 69210-32130C0 |
SV5#,ZZV50 BLACK MC.,209 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-32130B0 |
SV5#,ZZV50 SILVER ME.GR.,1C5 |
1 | ||
| 69220-32140A1 |
SV5#,ZZV50..A180,A200,A200G,N180,N200,N200G SU. WHITE PM.,051 |
1 | ||
| 69220-32140D0 |
SV5#,ZZV50 RED MC.,3M8 |
1 | ||
| 69220-32130D0 |
SV5#,ZZV50 RED MC.,3M8 |
1 | ||
| 69220-32130A0 |
SV5#,ZZV50 SUPER WHITE 2,040 |
1 | ||
| 69220-32130A1 |
SV5#,ZZV50 ｴｸｾﾚﾝﾄ ｴﾃﾞｲｼﾖﾝ *(A),SUPER WHITE PM.,051 ,28Y |
1 | ||
| 69220-32130G0 |
SV5#,ZZV50 DK.GREEN MC.,6R4 |
1 | ||
| 69220-32130J0 |
SV5#,ZZV50 BLUE M.M.,8L5 |
1 | ||
| 69220-32140B1 |
AZV50,SV5#,ZZV50 SILVER ME.,199 |
1 | ||
| 69220-32140B0 |
AZV50,SV5#,ZZV50 SILVER ME.GR.,1C5 |
1 | ||
| 69220-32130B1 |
SV5#,ZZV50 SILVER ME,199 |
1 | ||
| 69220-32140G0 |
AZV50,SV5#,ZZV50 DARK GREEN MC.,6R4 |
1 | ||
| 69220-32140B2 |
AZV5#,ZZV50 SILVER ME.,1C0 |
1 | ||
| 69220-32140E0 |
AZV5#,ZZV50 BEIGE ME.,4P7 |
1 | ||
| 69220-32140G1 |
AZV5#,ZZV50 JADE GREEN M.M.,6S9 |
1 | ||
| 69220-32130C0 |
SV5#,ZZV50 BLACK MC.,209 |
1 | ||
| 69220-32140J0 |
AZV5#,SV5#,ZZV50 DK.BLUE M.M.,8P4 |
1 | ||
| 69220-32140A0 |
AZV5#,SV5#,ZZV50 SUPER WHITE 2,040 |
1 | ||
| 69220-32130A1 |
SV5#,ZZV50 ｴｸｾﾚﾝﾄ ｴﾃﾞｲｼﾖﾝ V *(B),SUPER WHITE PM.,051 ,28Y |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-22090A1 |
AZV50,SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69277-22090B5 |
AZV5#,SV5#,ZZV50 STONE,TRIM1# |
1 | ||
| 69277-30150G2 |
SV5#,ZZV50 MIST GREEN,TRIM6# |
1 | ||
| 69277-22090A1 |
AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L IVORY,TRIM0# |
1 | ||
| 69277-22090A1 |
AZV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69277-30150A0 |
SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-30080G2 |
SV5#,ZZV50 MIST GREEN,TRIM6# |
1 | ||
| 69278-30080A0 |
SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69278-22050A1 |
AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L IVORY,TRIM0# |
1 | ||
| 69278-22050A1 |
AZV50,SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69278-22050B5 |
AZV5#,SV5#,ZZV50 STONE,TRIM1# |
1 | ||
| 69278-22050A1 |
AZV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30040B8 |
AZV5#,SV5#,ZZV50 STONE,TRIM1# |
1 | ||
| 69283-30040A1 |
AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L IVORY,TRIM0# |
1 | ||
| 69283-30040A1 |
AZV50,SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69283-30040A1 |
AZV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69283-30040G3 |
SV5#,ZZV50 MIST GREEN,TRIM6# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30040A1 |
AZV50,SV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69284-30040B8 |
AZV5#,SV5#,ZZV50 STONE,TRIM1# |
1 | ||
| 69284-30040A1 |
AZV5#,ZZV50 IVORY,TRIM0# |
1 | ||
| 69284-30040G3 |
SV5#,ZZV50 MIST GREEN,TRIM6# |
1 | ||
| 69284-30040A1 |
AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L IVORY,TRIM0# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
AZV5#,SV5#,ZZV50 右側 |
1 | ||
| 69293-12030 |
AZV5#,SV5#,ZZV50 左側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-32440 |
SV55,ZZV50 |
1 | ||
| 69310-32430 |
SV5#,ZZV50 ｱﾘ(ﾊﾟﾜ- ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69310-32450 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-32440 |
SV55,ZZV50 |
1 | ||
| 69310-32430 |
SV5#,ZZV50 ｱﾘ(ﾊﾟﾜ- ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69310-32450 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-32430 |
SV55,ZZV50 |
1 | ||
| 69320-32420 |
SV5#,ZZV50 ｱﾘ(ﾊﾟﾜ- ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69320-32440 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-32430 |
SV55,ZZV50 |
1 | ||
| 69320-32420 |
SV5#,ZZV50 ｱﾘ(ﾊﾟﾜ- ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69320-32440 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-20110 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32040 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32040 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-32120 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-32120 |
AZV5#,SV5#,ZZV50 |
2 | ||
| Common parts | ||||
| 90119-06876 | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90164-50031 | ||||
| 90179-06333 | ||||
| 90189-05003 | ||||
| 91511-G0608 | ||||
