ZZV50G-BWSMK (1998)

Toyota Vista/Vista Ardeo

Production Jun 1998 - Jul 2003
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9806-0004)1ZZFE

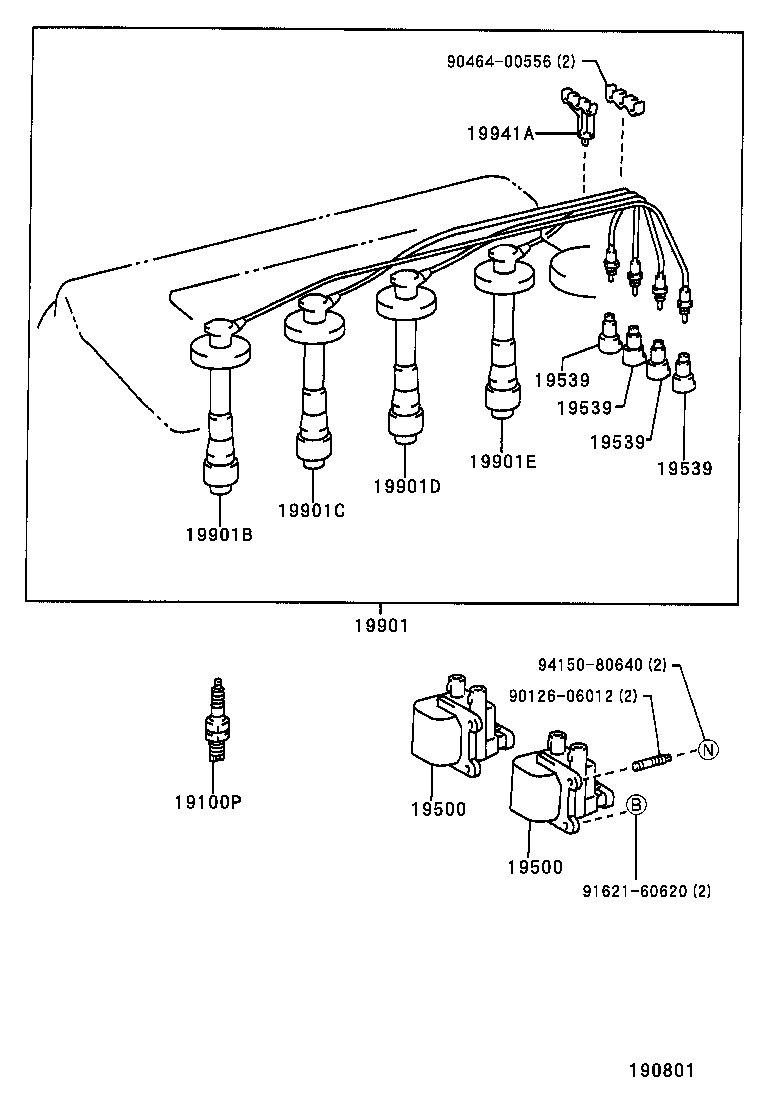

Click highlighted areas on diagram

diagram 19100P 19500 19500 19539 19539 19539 19539 19901 19901B 19901C 19901D 19901E 19941A 9012606012 9046400556 9162160620 9415080640
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01192

1ZZFE..ZZV50

K16TR11

 4
19500 - COIL ASSY, IGNITION
90919-02224

1ZZFE..ZZV50

 2
19500 - COIL ASSY, IGNITION
90919-02224

1ZZFE..ZZV50

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

1ZZFE..ZZV50

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

1ZZFE..ZZV50

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

1ZZFE..ZZV50

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

1ZZFE..ZZV50

 4
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22393

1ZZFE..ZZV50

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15502

1ZZFE..ZZV50

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15503

1ZZFE..ZZV50

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15504

1ZZFE..ZZV50

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15505

1ZZFE..ZZV50

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90929-01389

1ZZFE..ZZV50

 1
Common parts
90126-06012
90464-00556
91621-60620
94150-80640
