ZZV50G-BWSMK (1998)

Toyota Vista/Vista Ardeo

Production Jun 1998 - Jul 2003
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9806-0004)1ZZFE

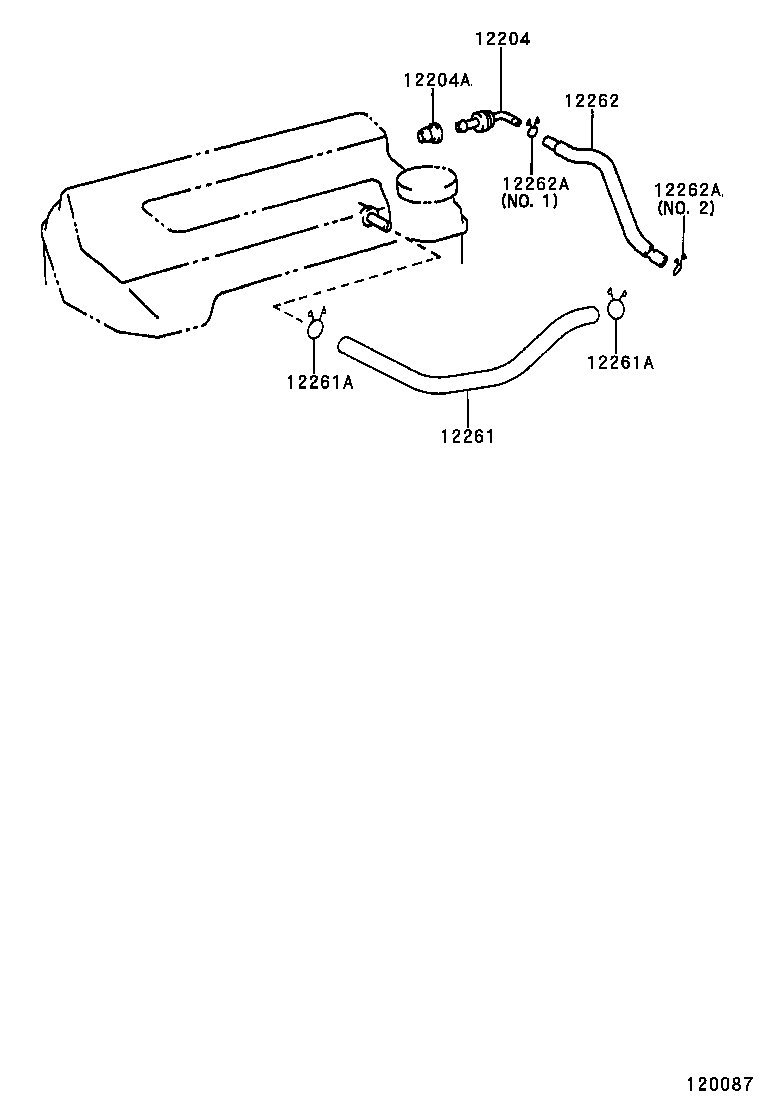

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-22030

1ZZFE..ZZV50

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1ZZFE..ZZV50

 1
12261 - HOSE, VENTILATION
12261-22020

1ZZFE..ZZV50

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21152

1ZZFE..ZZV50

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21152

1ZZFE..ZZV50

 2
12262 - HOSE, VENTILATION, NO.2
12262-22010

1ZZFE..ZZV50

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14001

1ZZFE..ZZV50

NO.1

 1
90467-16038

1ZZFE..ZZV50

NO.2

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14001

1ZZFE..ZZV50

NO.1

 1
90467-16038

1ZZFE..ZZV50

NO.2

 1
