ZZV50G-BWSEK (2000)
Toyota Vista/Vista Ardeo
Production
Apr 2000
-
Jul 2003
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0004- )AZV50,SV50,ZZV50

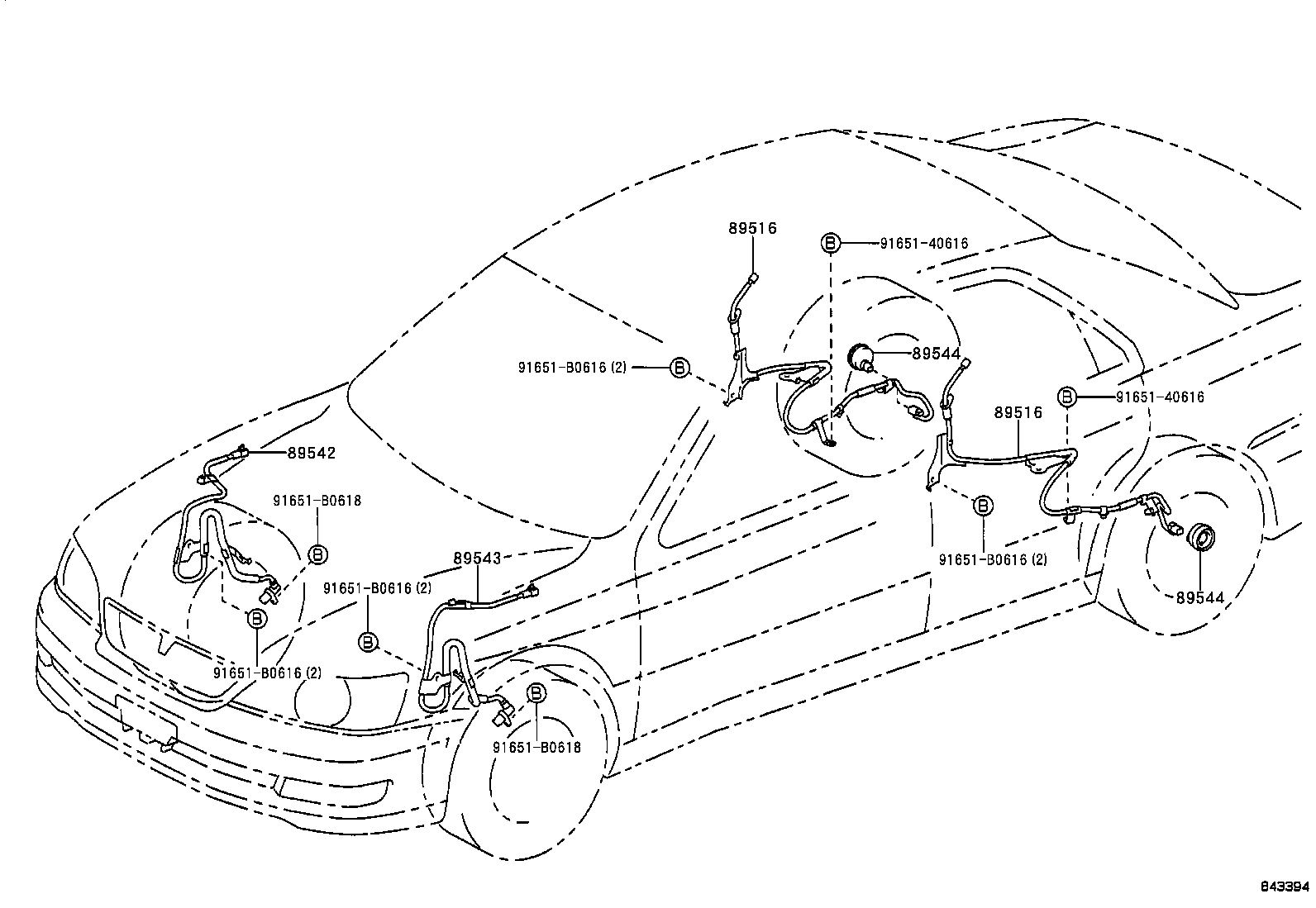

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-32030 |
AZV50,SV50,ZZV50 右側 |
1 | ||
| 89516-32040 |
AZV50,SV50,ZZV50 左側 |
1 | ||
| 89516-32031 |
AZV50,ZZV50 右側 |
1 | ||
| 89516-32010 |
SV50,ZZV50 右側 |
1 | ||
| 89516-32041 |
AZV50,ZZV50 左側 |
1 | ||
| 89516-32020 |
SV50,ZZV50 左側 |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-32030 |
AZV50,SV50,ZZV50 右側 |
1 | ||
| 89516-32040 |
AZV50,SV50,ZZV50 左側 |
1 | ||
| 89516-32031 |
AZV50,ZZV50 右側 |
1 | ||
| 89516-32010 |
SV50,ZZV50 右側 |
1 | ||
| 89516-32041 |
AZV50,ZZV50 左側 |
1 | ||
| 89516-32020 |
SV50,ZZV50 左側 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-32040 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-32040 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-32040 |
AZV50,ZZV50 KOYO |
2 | ||
| 89544-32030 |
AZV50,ZZV50 TOYOTA |
2 | ||
| 89544-32030 |
AZV50,SV50,ZZV50..WG |
2 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-32040 |
AZV50,ZZV50 KOYO |
2 | ||
| 89544-32030 |
AZV50,ZZV50 TOYOTA |
2 | ||
| 89544-32030 |
AZV50,SV50,ZZV50..WG |
2 | ||
| Common parts | ||||
| 91651-40616 | ||||
| 91651-B0616 | ||||
| 91651-B0618 | ||||
