ZZV50G-BWSEK (2000)

Toyota Vista/Vista Ardeo

Production Apr 2000 - Jul 2003
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0004- )ZZV50

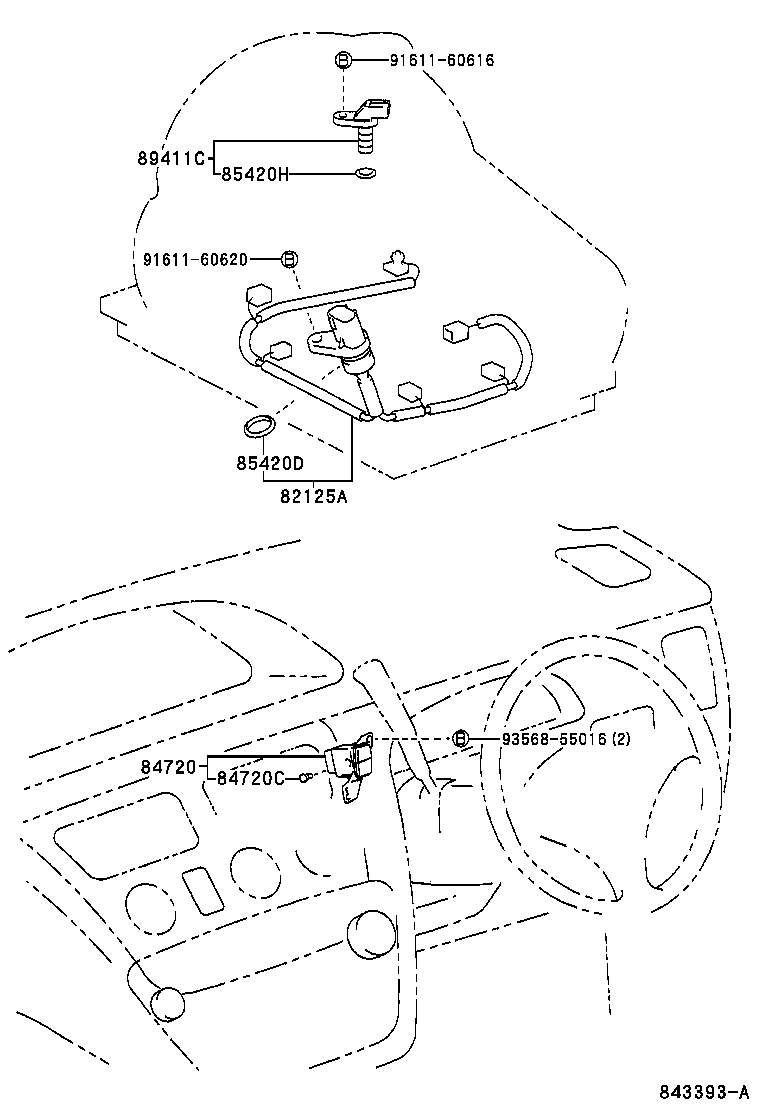

Click highlighted areas on diagram

diagram 82125A 84720 84720C 85420D 85420H 89411C 9161160616 9161160620 9356855016
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-21030

SV5#,ZZV50

 1
82125-20260

ZZV50

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-32090

AZV50,SV50,ZZV50

 1
84720C - BULB(FOR PATTERN SELECT SWITCH)
90010-09007

AZV50,SV50,ZZV50

14V 1.4W

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-21009

AZV5#,SV5#,ZZV50

 1
85420H - RING, O(FOR SPEED SENSOR)
90301-11008

ZZV50

 1
90301-11008

SV5#,ZZV50

 2
89411C - SENSOR, SPEED
89411-33010

SV5#,ZZV50

TOYOTA

 2
89413-24010

SV5#,ZZV50

AISIN

 2
89413-32010

ZZV50

 1
Common parts
91611-60616
91611-60620
93568-55016
