ZZV50G-BWSEK (2000)

Toyota Vista/Vista Ardeo

Production Apr 2000 - Jul 2003
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

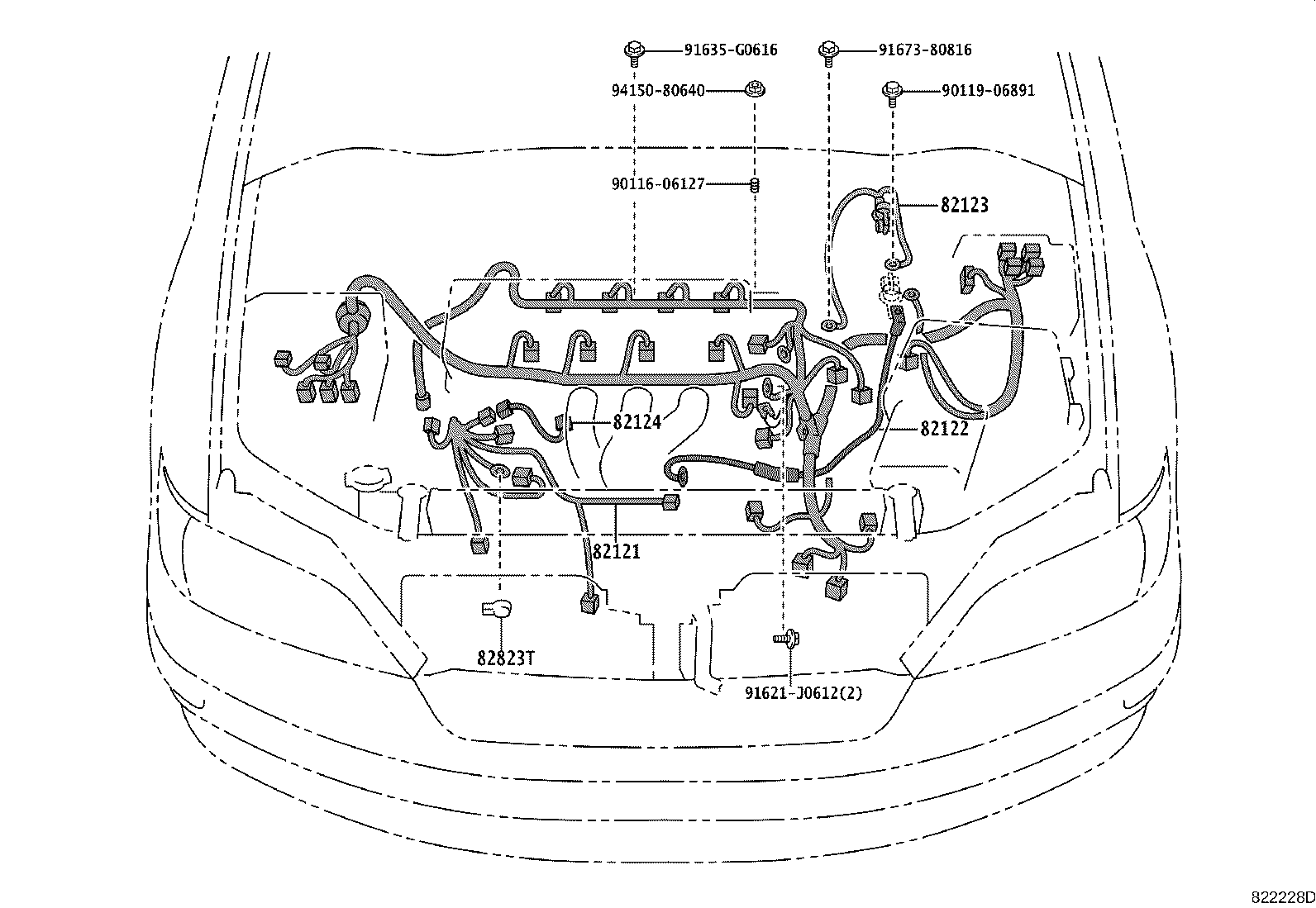

ILLUST NO. 2 OF 9(0004- )ZZV50

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

diagram 82121 82122 82123 82124 82823T 9011606127 9011906891 91621J0612 91635G0616 9167380816 9415080640
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-3H870

ZZV50

 1
82121-3H840

ZZV50

 1
82122 - WIRE, ENGINE, NO.2
82122-32230

ZZV50

 1
82122-32210

ZZV50

 1
82123 - WIRE, ENGINE, NO.3
82123-32180

SV5#,ZZV50

 1
82123-32190

ZZV50

 1
82124 - WIRE, ENGINE, NO.4
82124-32050

ZZV50

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

AZV5#,SV5#,ZZV50

 1
Common parts
90116-06127
90119-06891
91621-J0612
91635-G0616
91673-80816
94150-80640
