ZZV50G-BWSEK (2000)
Toyota Vista/Vista Ardeo
Production
Apr 2000
-
Jul 2003
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0004- )ZZV50

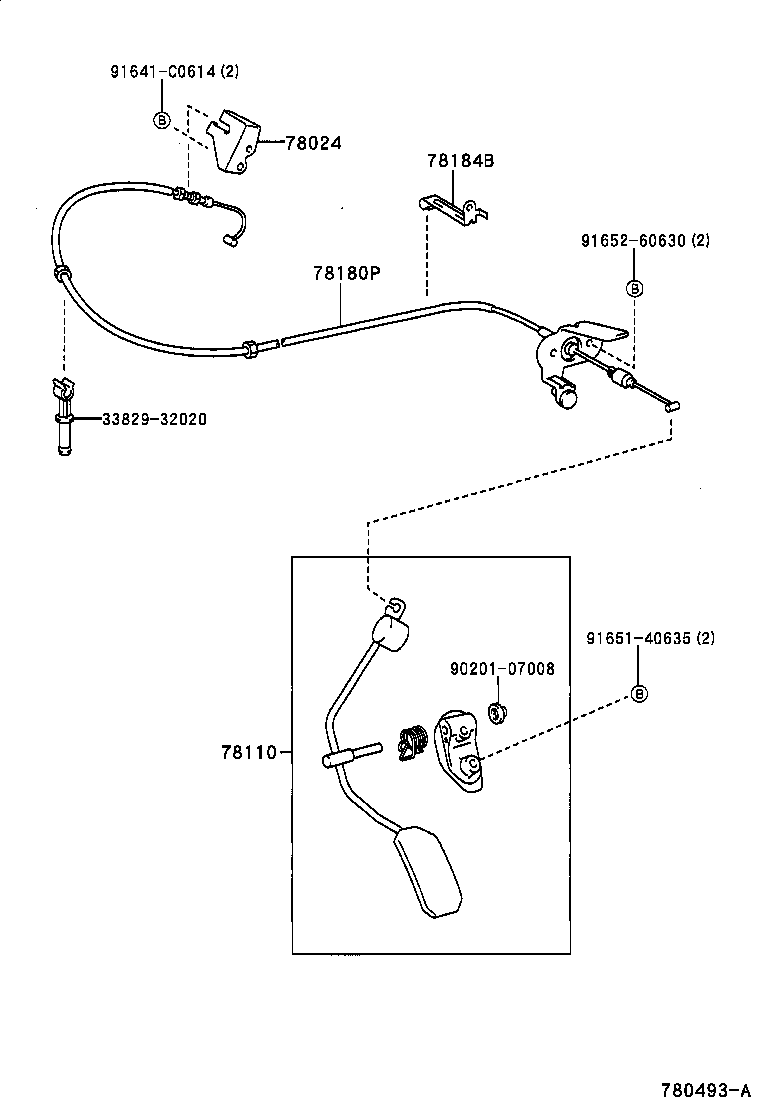

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-32130 |
ZZV50 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-32170 |
SV50,ZZV50 |
1 | ||
| 78120-32160 |
SV55,ZZV50 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-32480 |
ZZV50 |
1 | ||
| 78180-32510 |
ZZV50 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-32120 |
ZZV50 |
1 | ||
| 78184-32150 |
ZZV50 |
1 | ||
| Common parts | ||||
| 33829-32020 | ||||
| 90201-07008 | ||||
| 91641-C0614 | ||||
| 91651-40635 | ||||
| 91652-60630 | ||||
