ZZV50G-BWSEK (2000)
Toyota Vista/Vista Ardeo

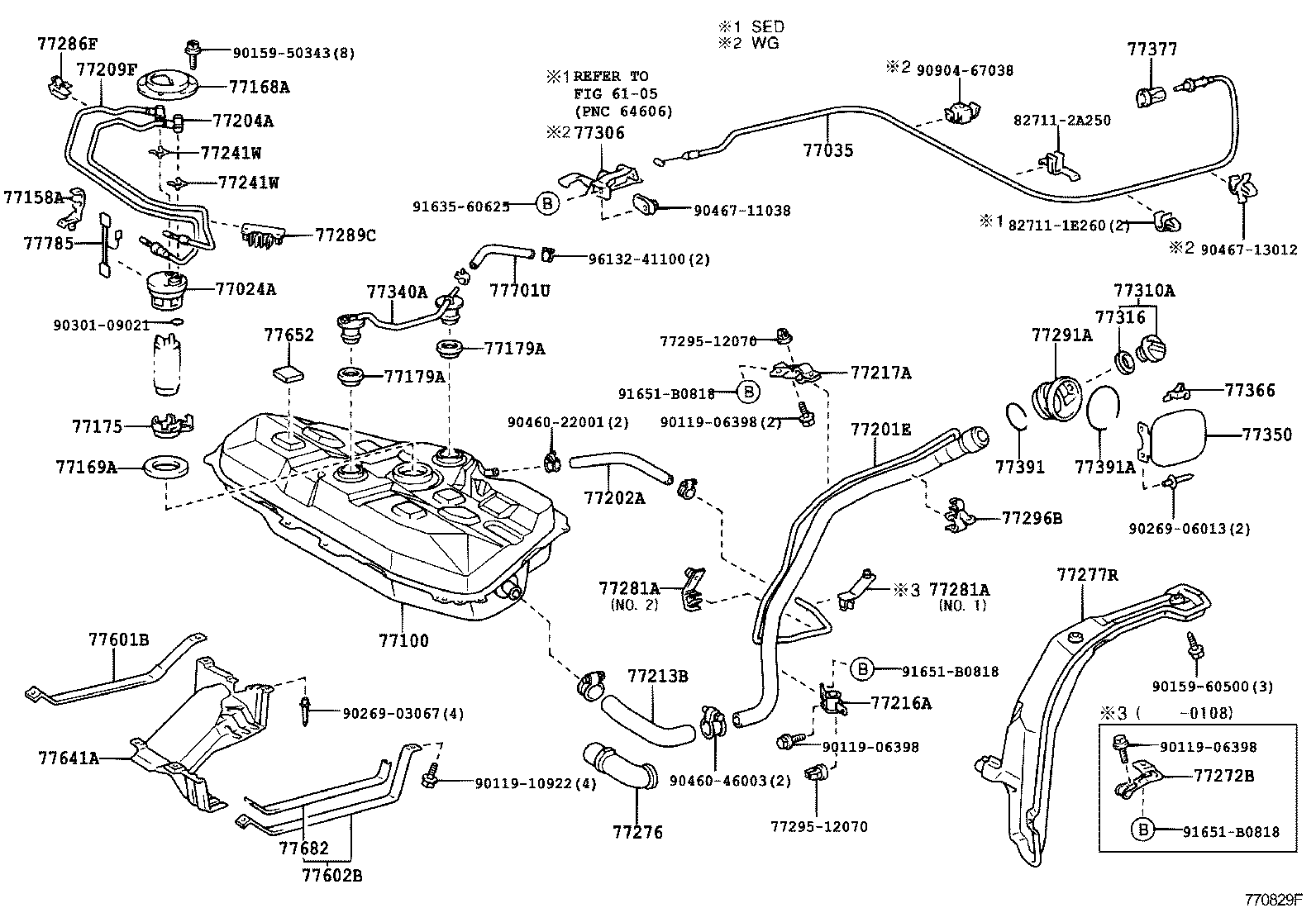

ILLUST NO. 1 OF 2(0004- )AZV50,SV50,ZZV50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-32040 |
ZZV50 |
1 | ||
| 77024-32010 |
ZZV50 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-32200 |
AZV5#,SV5#,ZZV50..WG |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-32130 |
SV50,ZZV50 |
1 | ||
| 77001-32150 |
AZV50,SV50,ZZV50 |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-32010 |
AZV50,SV50,ZZV50 |
2 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33050 |
AZV50,SV50,ZZV50 |
1 | ||
| 77168-12240 |
SV50,ZZV50 |
1 | ||
| 77168-12240 |
SV5#,ZZV50 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-52020 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77175-32010 |
SV50,ZZV50 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
AZV50,SV50,ZZV50 |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
AZV50,SV50,ZZV50 |
2 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-32190 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77201-32170 |
SV5#,ZZV50 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13034 |
AZV50,SV50,ZZV50 長さ=340 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-32020 |
AZV50,SV50,ZZV50 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-32090 |
AZV50,ZZV50 |
1 | ||
| 77213-32070 |
SV50,ZZV50 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-32070 |
SV5#,ZZV50 |
1 | ||
| 77216-32060 |
AZV50,SV5#,ZZV50 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32060 |
SV5#,ZZV50 |
1 | ||
| 77217-32050 |
AZV50,SV5#,ZZV50 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
SV55,ZZV50 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
SV55,ZZV50 |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-32050 |
SV5#,ZZV50 |
1 | ||
| 77272-32040 |
SV5#,ZZV50 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12050 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-32080 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77277-32070 |
SV5#,ZZV50 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-32030 |
SV5#,ZZV50 |
1 | ||
| 77281-12070 |
AZV5#,SV55,ZZV50 NO.1 |
1 | ||
| 77281-32040 |
SV5#,ZZV50 |
1 | ||
| 77281-32040 |
AZV5#,SV55,ZZV50 NO.2 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-32030 |
SV5#,ZZV50 |
1 | ||
| 77281-12070 |
AZV5#,SV55,ZZV50 NO.1 |
1 | ||
| 77281-32040 |
SV5#,ZZV50 |
1 | ||
| 77281-32040 |
AZV5#,SV55,ZZV50 NO.2 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-32070 |
AZV50,SV50,ZZV50 |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-32030 |
AZV50,SV50,ZZV50 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-32060 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-32020 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-21010 |
AZV5#,SV5#,ZZV50..WG |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-32010 |
AZV50,SV50,ZZV50 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-32120 |
SV5#,ZZV50..WG PNC 61612(D = 6.7) = FIG.61-01 ｻﾝｼﾖｳ |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-21010 |
AZV5#,ZZV50 |
1 | ||
| 77360-35010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-20030 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-32120 |
AZV50,SV50,ZZV50 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-32100 |
AZV50,SV50,ZZV50 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-32060 |
AZV50,SV50,ZZV50 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AZV50,SV50,ZZV50 |
7 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
AZV50,SV50,ZZV50 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
AZV50,SV50,ZZV50 *H,L=220 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-32010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| Common parts | ||||
| 77295-12070 | ||||
| 82711-1E260 | ||||
| 82711-2A250 | ||||
| 90119-06398 | ||||
| 90119-10922 | ||||
| 90159-50343 | ||||
| 90159-60500 | ||||
| 90269-03067 | ||||
| 90269-06013 | ||||
| 90301-09021 | ||||
| 90460-22001 | ||||
| 90460-46003 | ||||
| 90467-11038 | ||||
| 90467-13012 | ||||
| 90904-67038 | ||||
| 91635-60625 | ||||
| 91651-B0818 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 6105 | ||||
