ZZV50G-BWSEK (2000)
Toyota Vista/Vista Ardeo
Production
Apr 2000
-
Jul 2003
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0004- )ZZV50

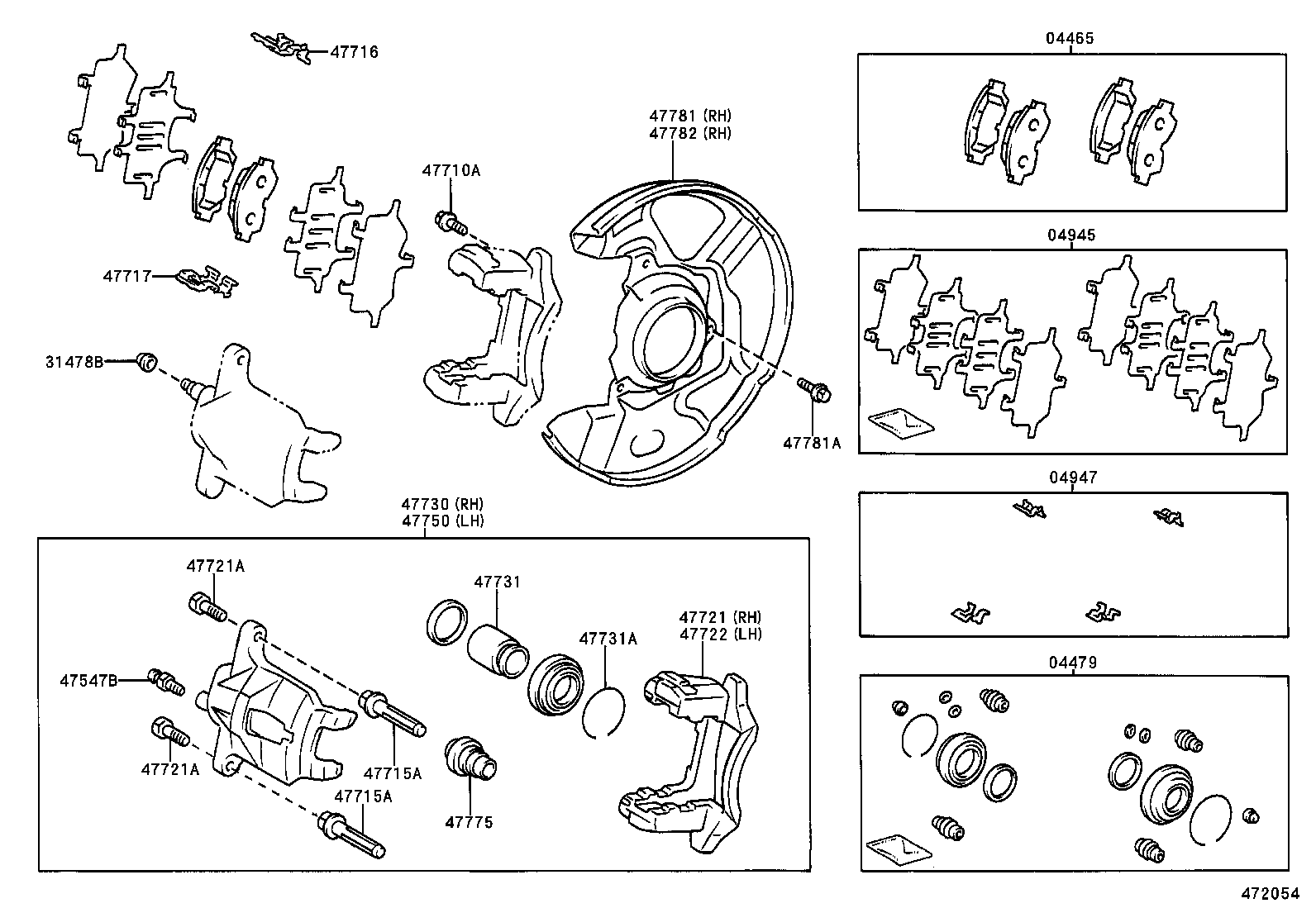

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-32200 |
ZZV50 ﾏｰｸ AK PA533 |
1 | ||
| 04465-32230 |
ZZV50 ﾏｰｸ AK PA533 |
1 | ||
| 04465-32210 |
ZZV50 ﾏｰｸ AK PA533 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-32140 |
ZZV50 |
1 | ||
| 04479-20300 |
ZZV50 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-32170 |
ZZV50 |
1 | ||
| 04945-20210 |
ZZV50 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-20110 |
ZZV50 |
1 | ||
| 04947-32170 |
ZZV50 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
AZV5#,SV5#,ZZV50 *12−1.25PX29.5−23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-50010 |
ZZV50 ｻﾌﾞ |
2 | ||
| 47715-50030 |
ZZV50 ﾒｲﾝ |
2 | ||
| 47715-52010 |
ZZV50 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-50010 |
ZZV50 ｻﾌﾞ |
2 | ||
| 47715-50030 |
ZZV50 ﾒｲﾝ |
2 | ||
| 47715-52010 |
ZZV50 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-20200 |
ZZV50 |
2 | ||
| 47716-33050 |
ZZV50 |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-20100 |
ZZV50 |
2 | ||
| 47716-33060 |
ZZV50 |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-20371 |
ZZV50 |
1 | ||
| 47721-20440 |
ZZV50 |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
AZV5#,SV5#,ZZV50 *8−1.00PX23−15 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
AZV5#,SV5#,ZZV50 *8−1.00PX23−15 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-20081 |
ZZV50 |
1 | ||
| 47722-20130 |
ZZV50 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-20600 |
ZZV50 |
1 | ||
| 47730-20481 |
ZZV50 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-20260 |
ZZV50 |
2 | ||
| 47731-20190 |
ZZV50 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-66001 |
SV5#,ZZV50 |
2 | ||
| 90520-86005 |
ZZV50 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-20481 |
ZZV50 |
1 | ||
| 47750-20510 |
ZZV50 |
1 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-20080 |
ZZV50 |
4 | ||
| 47775-52010 |
ZZV50 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-47010 |
ZZV50 |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90109-06134 |
SV5#,ZZV50 |
6 | ||
| 90119-06227 |
AZV5#,SV5#,ZZV50 |
6 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-47010 |
ZZV50 |
1 | ||
