ZZV50G-BWSEK (2000)
Toyota Vista/Vista Ardeo
(0004- )AZV5#,ZZV50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-32050 |
AZV5#,ZZV50 |
1 | ||
| 40130 - PUMP ASSY,VANE REBUILT | ||||
| 40130-63020 |
ZZV50 TOYODA KOKI |
1 | ||
| 40130-32280 |
ZZV50 TOYODA KOKI |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-32100 |
AZV5#,ZZV50 |
1 | ||
| 44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90311-15012 |
AZV5#,ZZV50 |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-32010 |
ZZV50 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-32040 |
ZZV50 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-20041 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-32090 |
AZV5#,ZZV50 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-32060 |
AZV5#,ZZV50 ﾏｰｸ無し |
1 | ||
| 44313-32090 |
AZV5#,ZZV50 ﾏｰｸ 3 |
1 | ||
| 44313-32070 |
AZV5#,ZZV50 ﾏｰｸ 1 |
1 | ||
| 44313-32100 |
AZV5#,ZZV50 ﾏｰｸ 4 |
1 | ||
| 44313-32080 |
AZV5#,ZZV50 ﾏｰｸ 2 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-32280 |
ZZV50 |
1 | ||
| 44310-63020 |
ZZV50 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90903-01007 |
AZV5#,ZZV50 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-32380 |
AZV5#,ZZV50 ﾏｰｸ 4 |
1 | ||
| 44325-32370 |
AZV5#,ZZV50 ﾏｰｸ 3 |
1 | ||
| 44325-32360 |
AZV5#,ZZV50 ﾏｰｸ 2 |
1 | ||
| 44325-32340 |
AZV5#,ZZV50 ﾏｰｸ無し |
1 | ||
| 44325-32350 |
AZV5#,ZZV50 ﾏｰｸ 1 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-32860 |
AZV5#,ZZV50 ﾏｰｸ B |
1 | ||
| 44330-3H010 |
AZV5#,ZZV50 ﾏｰｸ F |
1 | ||
| 44330-32880 |
AZV5#,ZZV50 ﾏｰｸ D |
1 | ||
| 44330-32890 |
AZV5#,ZZV50 ﾏｰｸ E |
1 | ||
| 44330-32870 |
AZV5#,ZZV50 ﾏｰｸ C |
1 | ||
| 44330-32850 |
AZV5#,ZZV50 ﾏｰｸ A |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-13069 |
AZV5#,ZZV50 |
1 | ||
| 90501-12103 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-32110 |
ZZV50 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11020 |
AZV5#,ZZV50 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-18009 |
AZV5#,ZZV50 外径=22,内径=18.6 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32030 |
ZZV50 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-45003 |
AZV5#,ZZV50 外側 |
1 | ||
| 90301-16012 |
AZV5#,ZZV50 内側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-45003 |
AZV5#,ZZV50 外側 |
1 | ||
| 90301-16012 |
AZV5#,ZZV50 内側 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-32100 |
AZV5#,ZZV50 ﾛｰﾀ ﾏｰｸ無し |
10 | ||
| 44345-32140 |
AZV5#,ZZV50 ﾛｰﾀ ﾏｰｸ 4 |
10 | ||
| 44345-32110 |
AZV5#,ZZV50 ﾛｰﾀ ﾏｰｸ 1 |
10 | ||
| 44345-32120 |
AZV5#,ZZV50 ﾛｰﾀ ﾏｰｸ 2 |
10 | ||
| 44345-32130 |
AZV5#,ZZV50 ﾛｰﾀ ﾏｰｸ 3 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-20150 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-32010 |
SV5#,ZZV50 |
1 | ||
| 44390-32020 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 44442A - BRACKET, VANE PUMP, REAR | ||||
| 44442-32020 |
ZZV50 |
1 | ||
| 44442-63010 |
ZZV50 |
1 | ||
| 44442A - BRACKET, VANE PUMP, REAR | ||||
| 44442-32020 |
ZZV50 |
1 | ||
| 44442-63010 |
ZZV50 |
1 | ||
| Common parts | ||||
| 90105-08365 | ||||
| 90119-06916 | ||||
| 90119-08B61 | ||||
| 91512-61075 | ||||

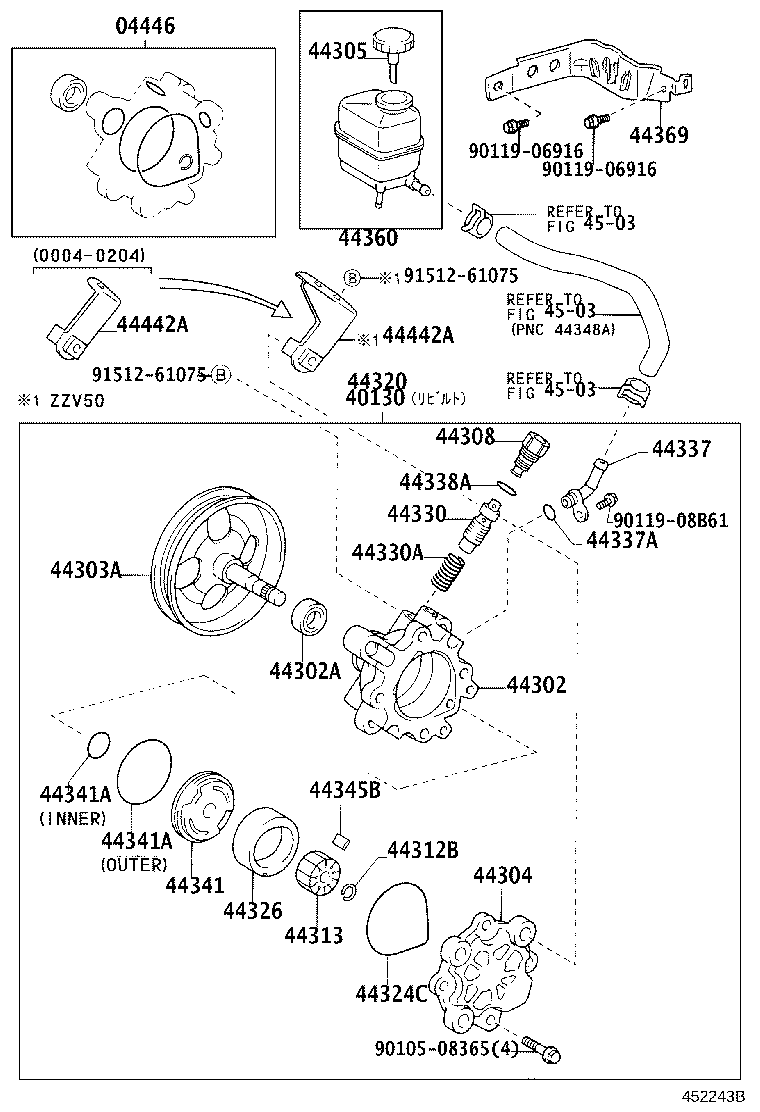

| Linked diagrams | ||||
| 4503 | ||||
