ZZV50G-BWSEK (2000)

Toyota Vista/Vista Ardeo

Production Apr 2000 - Jul 2003
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

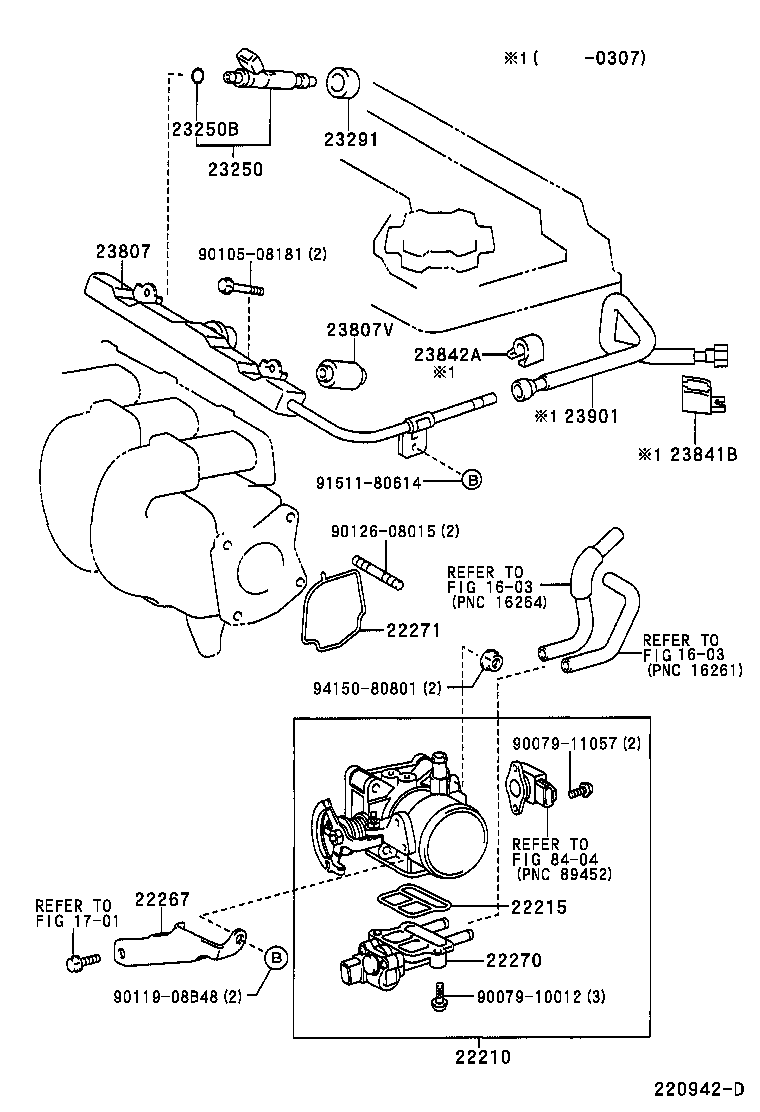

ILLUST NO. 1 OF 2(0004- )1ZZFE

Click highlighted areas on diagram

diagram 1603 1603 1701 22210 22215 22267 22270 22271 23250 23250B 23291 23807 23807V 23841B 23842A 23901 8404 9007910012 9007911057 9010508181 9011908B48 9012608015 9151180614 9415080801
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-22080

1ZZFE..ZZV50

 1
22210-22030

1ZZFE..ZZV50

 1
22215 - GASKET, THROTTLE BODY COVER
22215-7A680

1ZZFE..ZZV50

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-22060

1ZZFE..ZZV50

 1
22270-22060

1ZZFE..ZZV50

(J)

 1
22270-22020

1ZZFE..ZZV50

 1
22271 - GASKET, THROTTLE BODY
22271-22020

1ZZFE..ZZV50

 1
23250 - INJECTOR ASSY, FUEL
23209-22020

1ZZFE..ZZV50

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

1ZZFE..ZZV50

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-22020

1ZZFE..ZZV50

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-22020

1ZZFE..ZZV50

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08055

1ZZFE..ZZV50

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-22030

1ZZFE..ZZV50

 1
23841-21020

1ZZFE..ZZV50

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020

1ZZFE..ZZV50

 1
23901 - TUBE SUB-ASSY, FUEL
23901-22120

1ZZFE..ZZV50

 1
23901-22020

1ZZFE..ZZV50

 1
Common parts
90079-10012
90079-11057
90105-08181
90119-08B48
90126-08015
91511-80614
94150-80801
Linked diagrams
1603
1701
8404
