ZZV50G-BWSEK (2000)

Toyota Vista/Vista Ardeo

Production Apr 2000 - Jul 2003
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0004- )1ZZFE

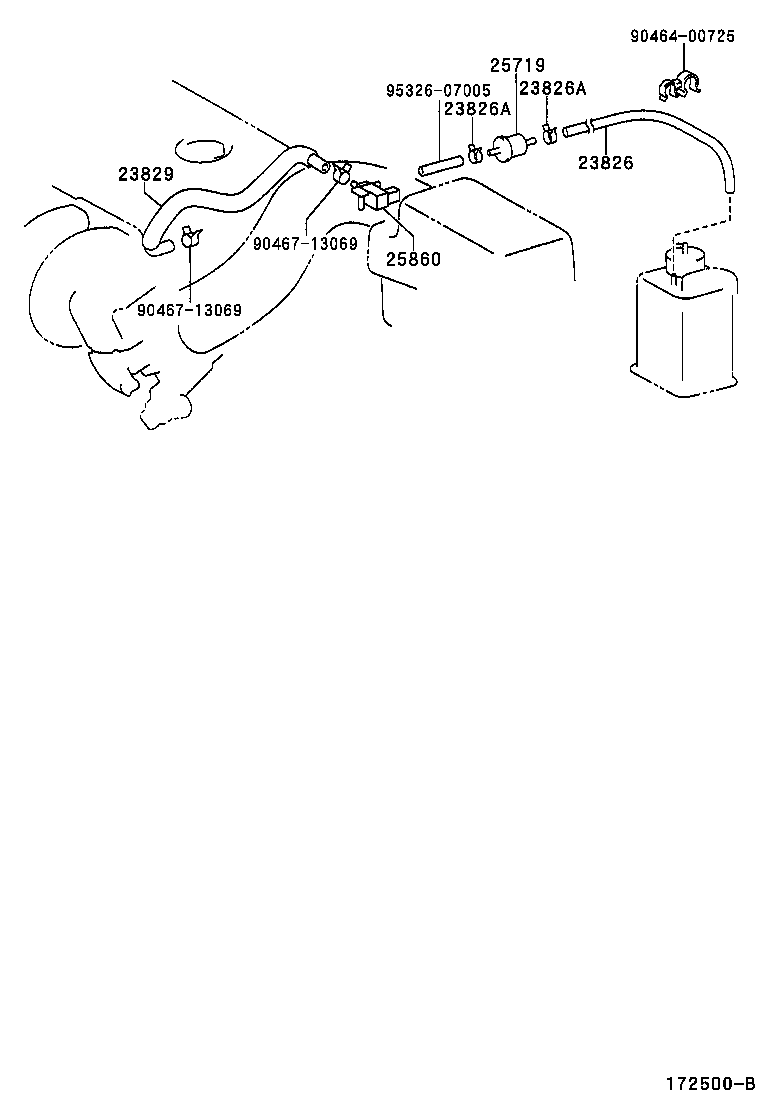

Click highlighted areas on diagram

diagram 23826 23826A 23826A 23829 25719 25860 9046400725 9046713069 9046713069 9532607005
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-22080

1ZZFE..ZZV50

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-41100

1ZZFE..ZZV50

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-41100

1ZZFE..ZZV50

 2
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-22050

1ZZFE..ZZV50

 1
25719 - TANK, VACUUM SURGE
25719-74020

1ZZFE..ZZV50

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-22030

1ZZFE..ZZV50

 1
25860-22060

1ZZFE..ZZV50

 1
Common parts
90464-00725
90467-13069
95326-07005
