ZZV50G-BWSEK (2000)

Toyota Vista/Vista Ardeo

Production Apr 2000 - Jul 2003
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0004- )1ZZFE

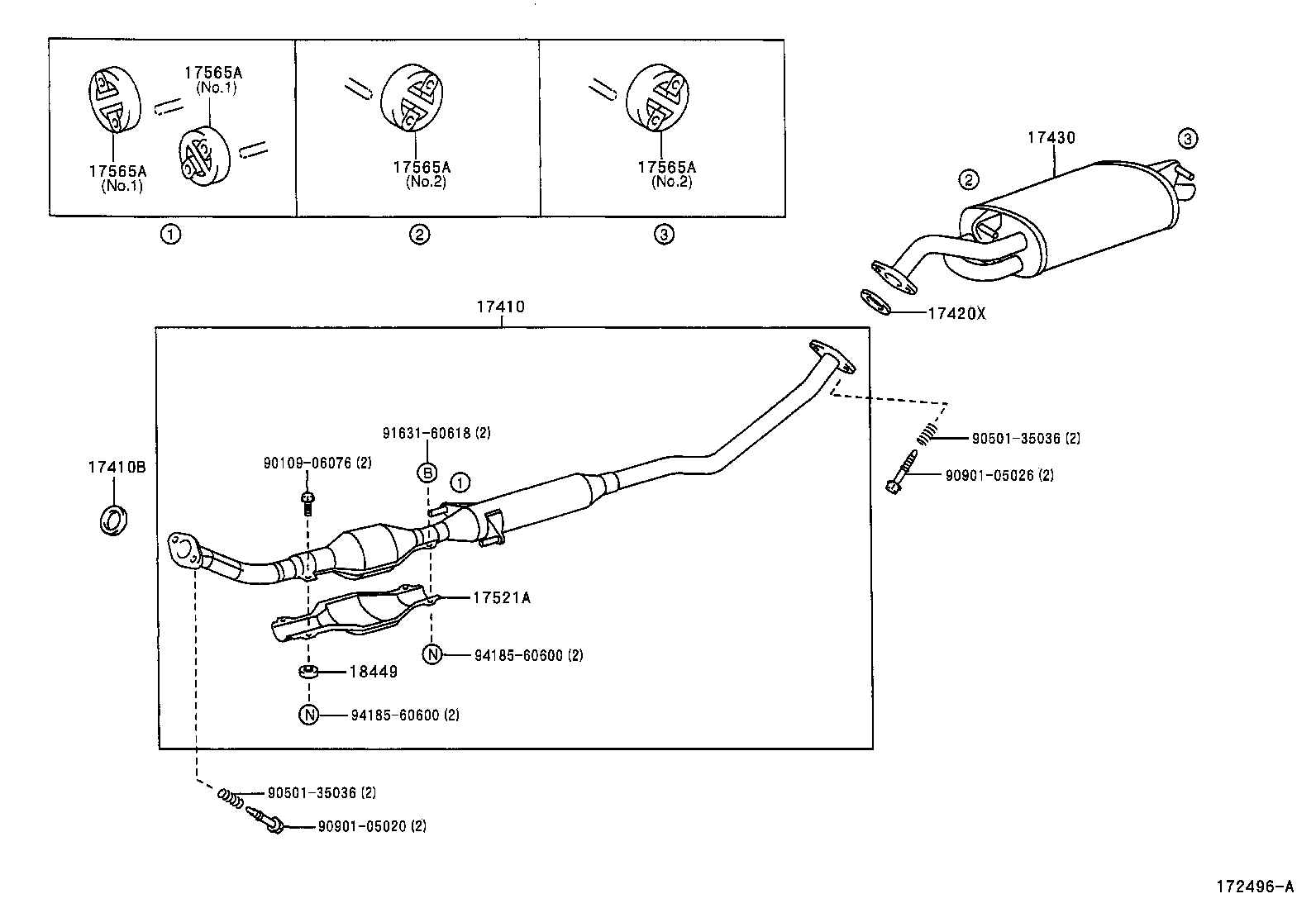

Click highlighted areas on diagram

diagram 17410 17410B 17420X 17430 17521A 17565A 17565A 17565A 17565A 18449 9010906076 9050135036 9050135036 9090105020 9090105026 9163160618 9418560600 9418560600
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-22050

1ZZFE..ZZV50

 1
17410-22220

1ZZFE..ZZV50

 1
17410B - GASKET, EXHAUST PIPE
17451-74040

3SF#,1ZZFE..SV5#,ZZV50

 1
17451-22070

1ZZFE..ZZV50

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-16030

1AZFSE,3SF#,1ZZFE..AZV55,SV5#,ZZV50

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-22060

1ZZFE..ZZV50

 1
17430-22190

1ZZFE..ZZV50

 1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-22020

1ZZFE..ZZV50

 1
17521-22010

1ZZFE..ZZV50

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74280

1AZFSE,3SFSE,1ZZFE..AZV50,SV50,ZZV50

NO.2

 2
17565-22030

1AZFSE,1ZZFE..AZV50,ZZV50

NO.1

 2
17565-11160

1AZFSE,3SFSE,1ZZFE..AZV50,SV50,ZZV50

NO.1

 2
17565-28010

1AZFSE,1ZZFE..AZV50,ZZV50

NO.2

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74280

1AZFSE,3SFSE,1ZZFE..AZV50,SV50,ZZV50

NO.2

 2
17565-22030

1AZFSE,1ZZFE..AZV50,ZZV50

NO.1

 2
17565-11160

1AZFSE,3SFSE,1ZZFE..AZV50,SV50,ZZV50

NO.1

 2
17565-28010

1AZFSE,1ZZFE..AZV50,ZZV50

NO.2

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74280

1AZFSE,3SFSE,1ZZFE..AZV50,SV50,ZZV50

NO.2

 2
17565-22030

1AZFSE,1ZZFE..AZV50,ZZV50

NO.1

 2
17565-11160

1AZFSE,3SFSE,1ZZFE..AZV50,SV50,ZZV50

NO.1

 2
17565-28010

1AZFSE,1ZZFE..AZV50,ZZV50

NO.2

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74280

1AZFSE,3SFSE,1ZZFE..AZV50,SV50,ZZV50

NO.2

 2
17565-22030

1AZFSE,1ZZFE..AZV50,ZZV50

NO.1

 2
17565-11160

1AZFSE,3SFSE,1ZZFE..AZV50,SV50,ZZV50

NO.1

 2
17565-28010

1AZFSE,1ZZFE..AZV50,ZZV50

NO.2

 2
18449 - SPACER, CONVERTER PROTECTOR
18449-74010

1ZZFE..ZZV50

 2
Common parts
90109-06076
90501-35036
90901-05020
90901-05026
91631-60618
94185-60600
