ZZV50G-BWSEK (2000)
Toyota Vista/Vista Ardeo

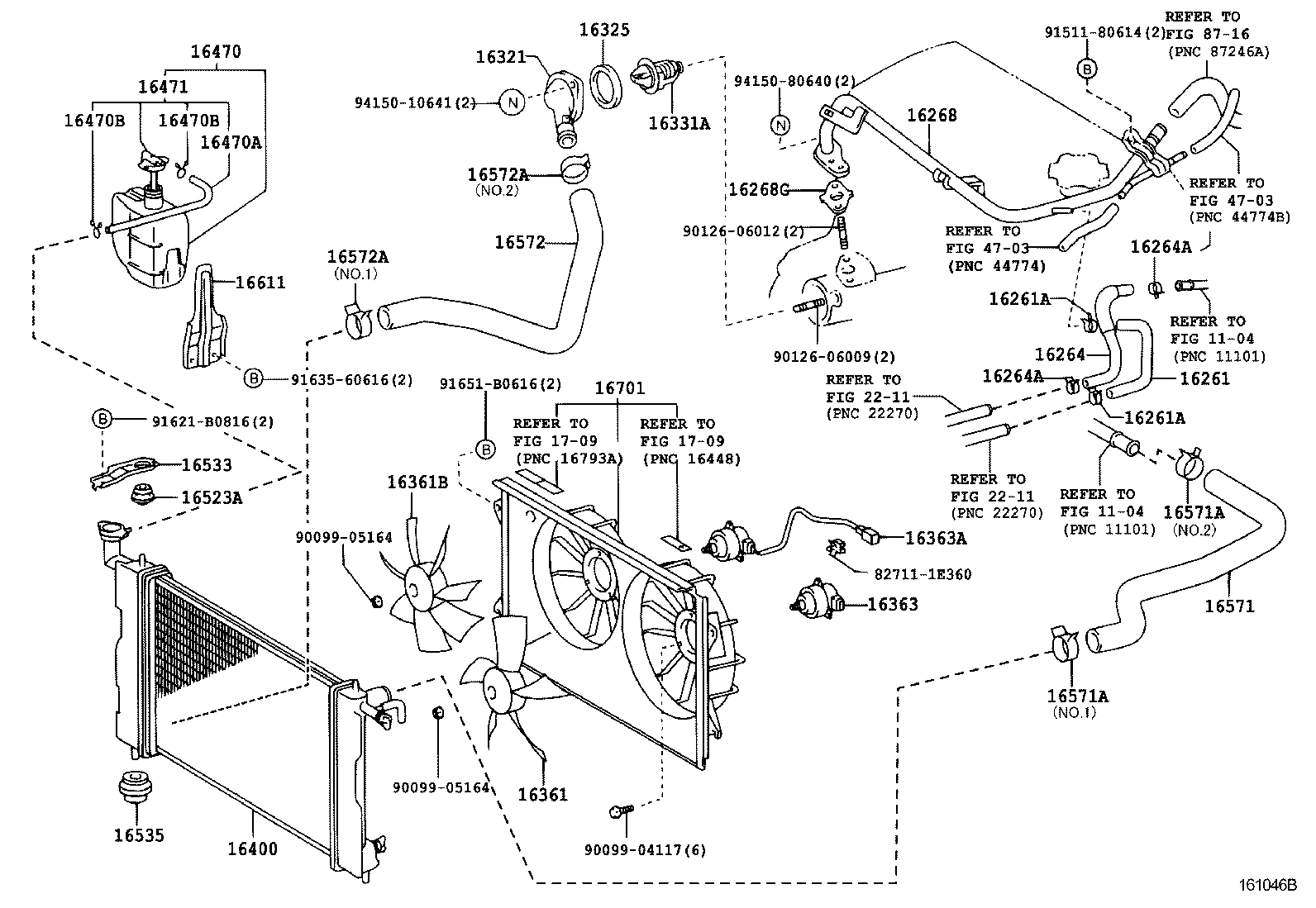

ILLUST NO. 1 OF 2(0004- )1ZZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-22030 |
1ZZFE..ZZV50 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
1ZZFE..ZZV50 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
1ZZFE..ZZV50 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-22020 |
1ZZFE..ZZV50 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
1ZZFE..ZZV50 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
1ZZFE..ZZV50 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-22020 |
1ZZFE..ZZV50 |
1 | ||
| 16268-22100 |
1ZZFE..ZZV50 |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-22010 |
1ZZFE..ZZV50 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-22040 |
1ZZFE..ZZV50 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1ZZFE..ZZV50 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03107 |
1ZZFE..ZZV50 *WAX 76−90 |
1 | ||
| 90916-03084 |
1ZZFE..ZZV50 *WAX 82−95 |
1 | ||
| 16361 - FAN | ||||
| 16361-22030 |
1ZZFE..ZZV50 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-22040 |
1ZZFE..ZZV50 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-22030 |
1ZZFE..ZZV50 |
1 | ||
| 16363-23010 |
1ZZFE..ZZV50 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-22040 |
1ZZFE..ZZV50 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-22050 |
1ZZFE..ZZV50 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-22010 |
1ZZFE..ZZV50 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1ZZFE..ZZV50 *H,L=180 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1ZZFE..ZZV50 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1ZZFE..ZZV50 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-22010 |
1ZZFE..ZZV50 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-74010 |
1ZZFE..ZZV50 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-22010 |
1ZZFE..ZZV50 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20010 |
1ZZFE..ZZV50 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-22010 |
1ZZFE..ZZV50 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
1ZZFE..ZZV50 NO.2 |
1 | ||
| 90466-37002 |
1ZZFE..ZZV50 NO.1 |
1 | ||
| 90467-34004 |
1ZZFE..ZZV50 NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
1ZZFE..ZZV50 NO.2 |
1 | ||
| 90466-37002 |
1ZZFE..ZZV50 NO.1 |
1 | ||
| 90467-34004 |
1ZZFE..ZZV50 NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-22010 |
1ZZFE..ZZV50 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
1ZZFE..ZZV50 NO.2 |
1 | ||
| 90466-37002 |
1ZZFE..ZZV50 NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
1ZZFE..ZZV50 NO.2 |
1 | ||
| 90466-37002 |
1ZZFE..ZZV50 NO.1 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-22020 |
1ZZFE..ZZV50 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-22050 |
1ZZFE..ZZV50 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90126-06009 | ||||
| 90126-06012 | ||||
| 91511-80614 | ||||
| 91621-B0816 | ||||
| 91635-60616 | ||||
| 91651-B0616 | ||||
| 94150-10641 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1709 | ||||
| 2211 | ||||
| 4703 | ||||
| 8716 | ||||
