ZZV50G-BWSEK (2000)
Toyota Vista/Vista Ardeo
Production
Apr 2000
-
Jul 2003
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0004- )1ZZFE

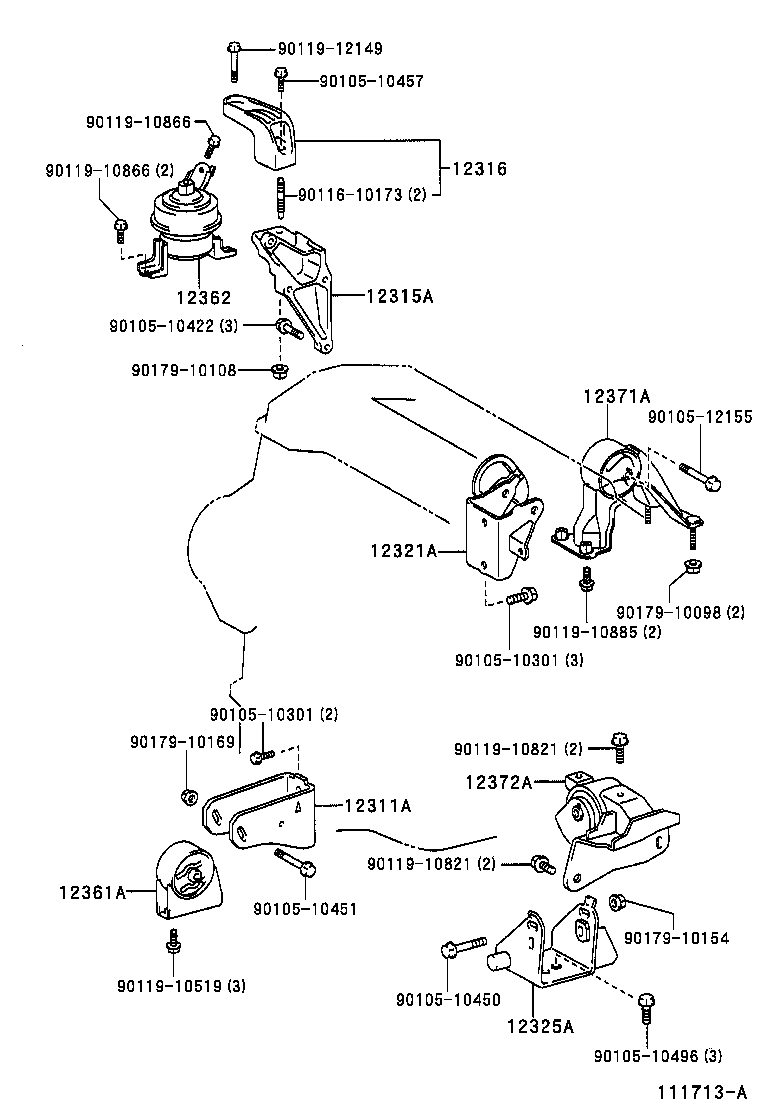

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-22010 |
1ZZFE..ZZV50 |
1 | ||
| 12311-22090 |
1ZZFE..ZZV50 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-22020 |
1ZZFE..ZZV50 |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-22010 |
1ZZFE..ZZV50 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-22010 |
1ZZFE..ZZV50 |
1 | ||
| 12321-22100 |
1ZZFE..ZZV50 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-22170 |
1ZZFE..ZZV50 |
1 | ||
| 12325-74460 |
1ZZFE..ZZV50 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-74530 |
1ZZFE..ZZV50 |
1 | ||
| 12361-74531 |
1ZZFE..ZZV50 |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-22010 |
1ZZFE..ZZV50 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-22150 |
1ZZFE..ZZV50 |
1 | ||
| 12371-22030 |
1ZZFE..ZZV50 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-22010 |
1ZZFE..ZZV50 |
1 | ||
| 12372-22011 |
1ZZFE..ZZV50 |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10422 | ||||
| 90105-10450 | ||||
| 90105-10451 | ||||
| 90105-10457 | ||||
| 90105-10496 | ||||
| 90105-12155 | ||||
| 90116-10173 | ||||
| 90119-10519 | ||||
| 90119-10821 | ||||
| 90119-10866 | ||||
| 90119-10885 | ||||
| 90119-12149 | ||||
| 90179-10098 | ||||
| 90179-10108 | ||||
| 90179-10154 | ||||
| 90179-10169 | ||||
