ZZV50G-BWSEK (2000)
Toyota Vista/Vista Ardeo
Production
Apr 2000
-
Jul 2003
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0004- )1ZZFE

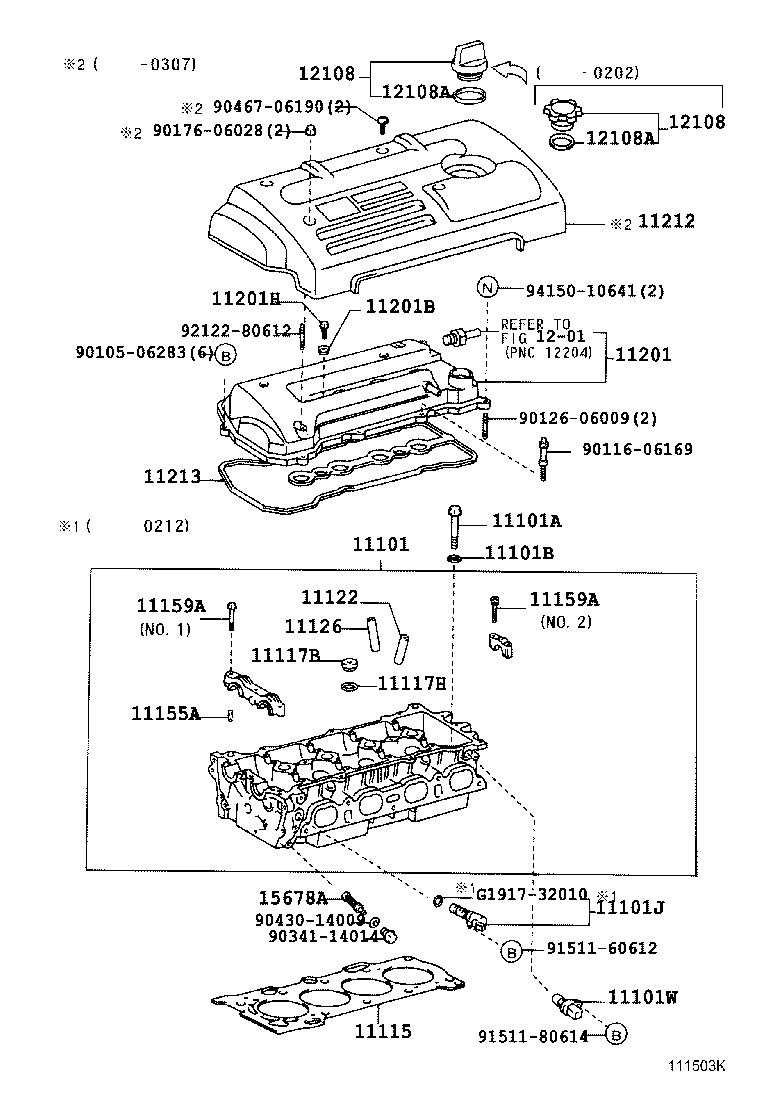

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-22050 |
1ZZFE..ZZV50 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02134 |
1ZZFE..ZZV50 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
1ZZFE..ZZV50 |
10 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-22030 |
1ZZFE..ZZV50 |
1 | ||
| 15330-22010 |
1ZZFE..ZZV50 |
1 | ||
| 11101W - SENSOR, CRANK POSITION, NO.1 | ||||
| 90919-05026 |
1ZZFE..ZZV50 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-22041 |
1ZZFE..ZZV50 |
1 | ||
| 11115-22040 |
1ZZFE..ZZV50 |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-20002 |
1ZZFE..ZZV50 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
1ZZFE..ZZV50 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-20020 |
1ZZFE..ZZV50 O/S 0.05 |
8 | ||
| 11123-22030 |
1ZZFE..ZZV50 O/S 0.05 |
8 | ||
| 11122-20020 |
1ZZFE..ZZV50 STD |
8 | ||
| 11122-22030 |
1ZZFE..ZZV50 STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-22030 |
1ZZFE..ZZV50 O/S 0.05 |
8 | ||
| 11123-20020 |
1ZZFE..ZZV50 O/S 0.05 |
8 | ||
| 11122-22030 |
1ZZFE..ZZV50 STD |
8 | ||
| 11122-20020 |
1ZZFE..ZZV50 STD |
8 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-12001 |
1ZZFE..ZZV50 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-08A29 |
1ZZFE..ZZV50 NO.1 |
3 | ||
| 90109-06080 |
1ZZFE..ZZV50 NO.2 |
16 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-08A29 |
1ZZFE..ZZV50 NO.1 |
3 | ||
| 90109-06080 |
1ZZFE..ZZV50 NO.2 |
16 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-22050 |
1ZZFE..ZZV50 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-06012 |
1ZZFE..ZZV50 |
2 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90105-06252 |
1ZZFE..ZZV50 |
2 | ||
| 90105-06281 |
1ZZFE..ZZV50 |
2 | ||
| 11212 - COVER, CYLINDER HEAD, NO.2 | ||||
| 11212-22101 |
1ZZFE..ZZV50 |
1 | ||
| 11212-22100 |
1ZZFE..ZZV50 |
1 | ||
| 11212-22010 |
1ZZFE..ZZV50 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-22030 |
1ZZFE..ZZV50 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
1ZZFE..ZZV50 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
1ZZFE..ZZV50 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
1ZZFE..ZZV50 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
1ZZFE..ZZV50 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-21010 |
1ZZFE..ZZV50 |
1 | ||
| Common parts | ||||
| 90105-06283 | ||||
| 90116-06169 | ||||
| 90126-06009 | ||||
| 90176-06028 | ||||
| 90341-14014 | ||||
| 90430-14009 | ||||
| 90467-06190 | ||||
| 91511-60612 | ||||
| 91511-80614 | ||||
| 92122-80612 | ||||
| 94150-10641 | ||||
| G1917-32010 | ||||
| Linked diagrams | ||||
| 1201 | ||||
