ZZV50-BESMK (1998)
Toyota Vista/Vista Ardeo
(9806- )

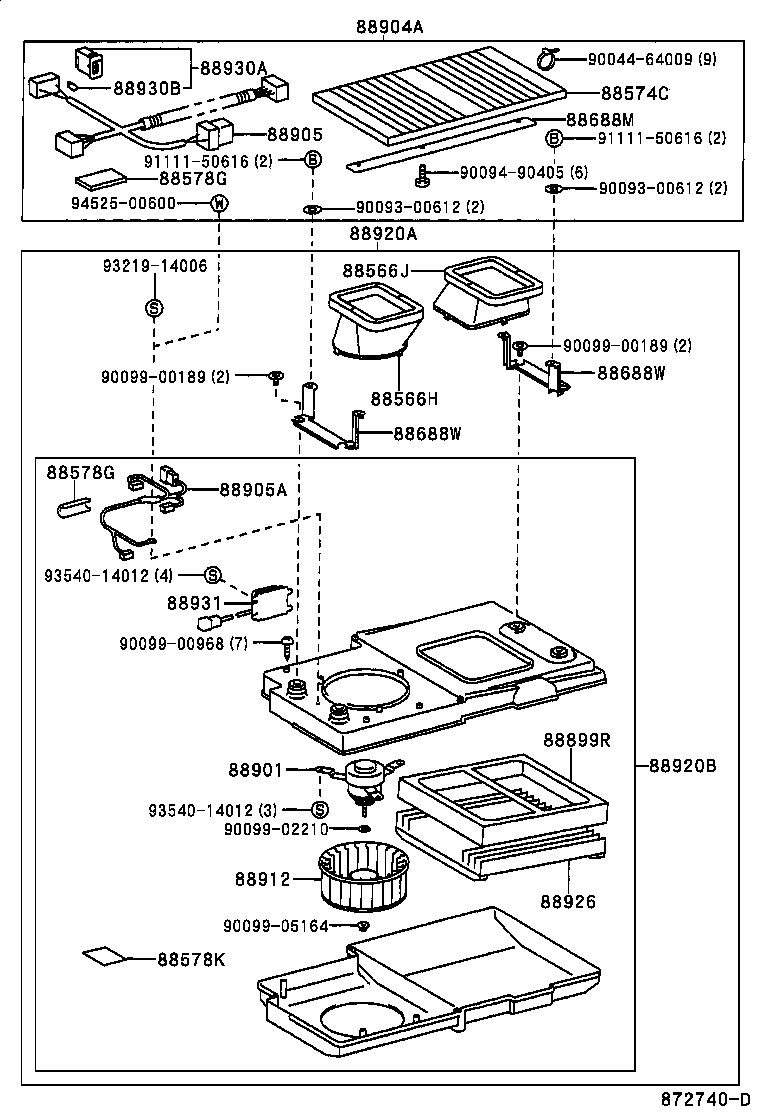

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88566H - DUCT, AIR, NO.1 | ||||
| 88566-32130 |
AZV5#,SV5#,ZZV50..SED |
1 | ||
| 88566J - DUCT, AIR, NO.2 | ||||
| 88566-32140 |
AZV5#,SV5#,ZZV50..SED |
1 | ||
| 88574C - BODY, AIR OUTLET GRILLE, NO.1 | ||||
| 88574-32030G0 |
SV5#,ZZV50..SED MISTGREEN,TRIM6# |
1 | ||
| 88574-32030A0 |
AZV5#,SV5#,ZZV50..SED IVORY,TRIM0# |
1 | ||
| 88574-32030B0 |
AZV5#,SV5#,ZZV50..SED STONE,TRIM1# |
1 | ||
| 88578G - PACKING, AIR PURIFIER, NO.1 | ||||
| 88578-30370 |
SV5#,ZZV50..SED |
5 | ||
| 88578-30370 |
AZV5#,SV5#,ZZV50..SED |
6 | ||
| 88578G - PACKING, AIR PURIFIER, NO.1 | ||||
| 88578-30370 |
SV5#,ZZV50..SED |
5 | ||
| 88578-30370 |
AZV5#,SV5#,ZZV50..SED |
6 | ||
| 88578K - PACKIN, COOLER NO.1 | ||||
| 88578-28190 |
AZV5#,SV5#,ZZV50..SED |
1 | ||
| 88688M - BRACKET, AIR PURIFIER, NO.2 | ||||
| 88688-32720 |
AZV5#,SV5#,ZZV50..SED |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-32700 |
AZV5#,SV5#,ZZV50..SED |
2 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-32700 |
AZV5#,SV5#,ZZV50..SED |
2 | ||
| 88899R - FRAME, AIR PURIFIER | ||||
| 88899-32020 |
AZV5#,SV5#,ZZV50..SED |
1 | ||
| 88901 - MOTOR SUB-ASSY, AIR PURIFIER | ||||
| 88901-32020 |
AZV5#,SV5#,ZZV50..SED |
1 | ||
| 88904A - ACCESSORY SUB-ASSY, AIR PURIFIRE | ||||
| 88904-32270B0 |
AZV5#,SV5#,ZZV50..SED STONE,TRIM1# |
1 | ||
| 88904-32270A0 |
AZV5#,SV5#,ZZV50..SED IVORY,TRIM0# |
1 | ||
| 88904-32270G0 |
SV5#,ZZV50..SED MISTGREEN,TRIM6# |
1 | ||
| 88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1 | ||||
| 88905-32230 |
AZV5#,SV5#,ZZV50..SED |
1 | ||
| 88905A - WIRE SUB-ASSY, AIR PURIFIER, NO.2 | ||||
| 88905-33030 |
AZV5#,SV5#,ZZV50..SED |
1 | ||
| 88912 - FAN, AIR PURIFIER | ||||
| 88912-32140 |
AZV5#,SV5#,ZZV50..SED |
1 | ||
| 88920A - PURIFIER ASSY, AIR | ||||
| 88920-32240 |
AZV5#,SV5#,ZZV50..SED |
1 | ||
| 88920B - PURIFIER ASSY, AIR, NO.2 | ||||
| 88920-33050 |
AZV5#,SV5#,ZZV50..SED |
1 | ||
| 88926 - FILTER, AIR PURIFIER | ||||
| 88926-32030 |
AZV5#,SV5#,ZZV50..SED |
1 | ||
| 88930A - SWITCH ASSY, AIR PURIFIER | ||||
| 88930-33050 |
AZV5#,SV5#,ZZV50..SED |
1 | ||
| 88930B - BULB, AIR PURIFIER SWITCH | ||||
| 90010-03005 |
AZV5#,SV5#,ZZV50..SED 14V 1.8W |
1 | ||
| 88931 - SENSOR, SMOKE | ||||
| 88931-50030 |
AZV5#,SV5#,ZZV50..SED |
1 | ||
| Common parts | ||||
| 90044-64009 | ||||
| 90093-00612 | ||||
| 90094-90405 | ||||
| 90099-00189 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 91111-50616 | ||||
| 93219-14006 | ||||
| 93540-14012 | ||||
| 94525-00600 | ||||
