ZZV50-BESMK (1998)

Toyota Vista/Vista Ardeo

Production Jun 1998 - Jul 2003
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9806- )

Click highlighted areas on diagram

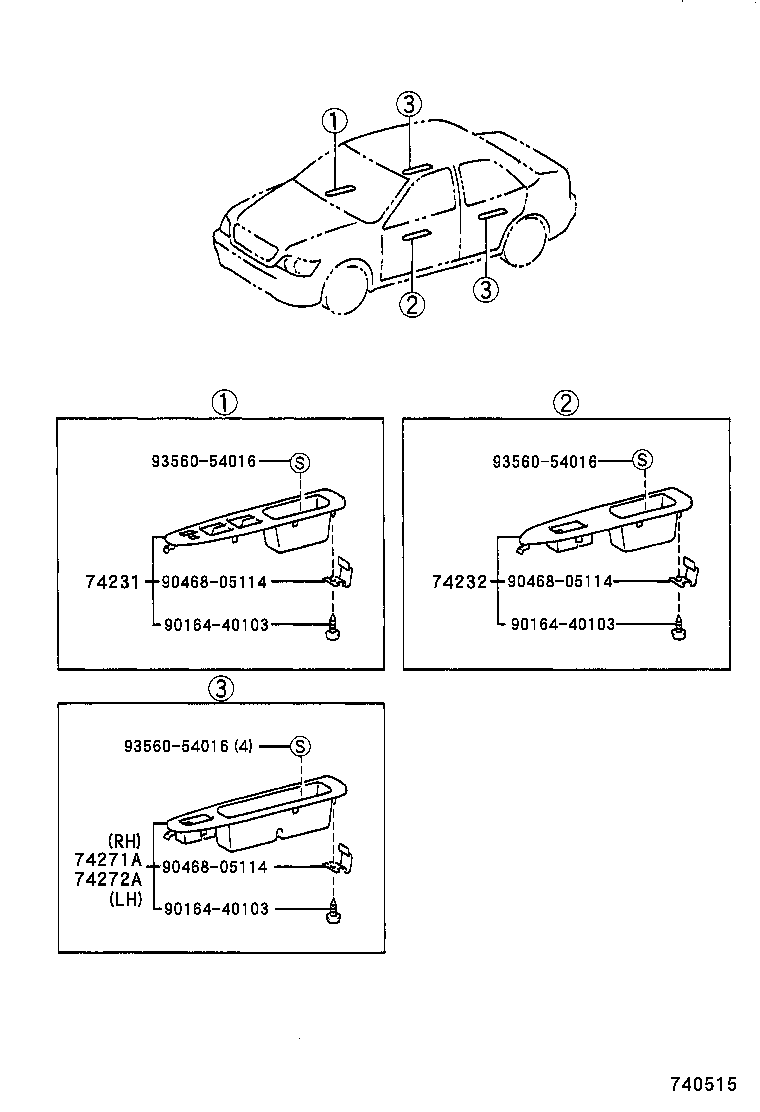

ｱ-ﾑﾚｽﾄ

diagram 74231 74232 74271A 74272A 9016440103 9016440103 9016440103 9046805114 9046805114 9046805114 9356054016 9356054016 9356054016
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-32190G0

SV55,ZZV50

MIST GREEN,TRIM6#

 1
74231-32180B0

SV5#,ZZV50..A180,A200,N180,N200

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱ ﾛﾂｸ),STONE,TRIM1#

 1
74231-32180A0

SV5#,ZZV50..A180,A200,N180,N200

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱ ﾛﾂｸ),IVORY,TRIM0#

 1
74231-32190A0

SV55,ZZV50

IVORY,TRIM0#

 1
74231-32180G0

SV5#,ZZV50

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱ ﾛﾂｸ),MIST GREEN,TRIM6#

 1
74231-32200

AZV50,SV5#,ZZV50..A180S,A200S,N180,N200

ﾓｸﾒ

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-32110G0

SV5#,ZZV50

MIST GREEN,TRIM6#

 1
74232-32130

AZV50,SV5#,ZZV50..A180S,A200S,N180,N200

ﾓｸﾒ

 1
74232-32110A0

AZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L

IVORY,TRIM0#

 1
74232-32110B0

AZV5#,SV5#,ZZV50

STONE,TRIM1#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-32050G0

SV5#,ZZV50

MIST GREEN,TRIM6#

 1
74271-32050B0

AZV5#,SV5#,ZZV50

STONE,TRIM1#

 1
74271-32050A0

AZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L

IVORY,TRIM0#

 1
74271-32060

AZV50,SV5#,ZZV50..A180S,A200S,N180,N200

ﾓｸﾒ

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-32050A0

AZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L

IVORY,TRIM0#

 1
74272-32060

AZV50,SV5#,ZZV50..A180S,A200S,N180,N200

ﾓｸﾒ

 1
74272-32050G0

SV5#,ZZV50

MIST GREEN,TRIM6#

 1
74272-32050B0

AZV5#,SV5#,ZZV50

STONE,TRIM1#

 1
Common parts
90164-40103
90468-05114
93560-54016

(9806- )

Click highlighted areas on diagram

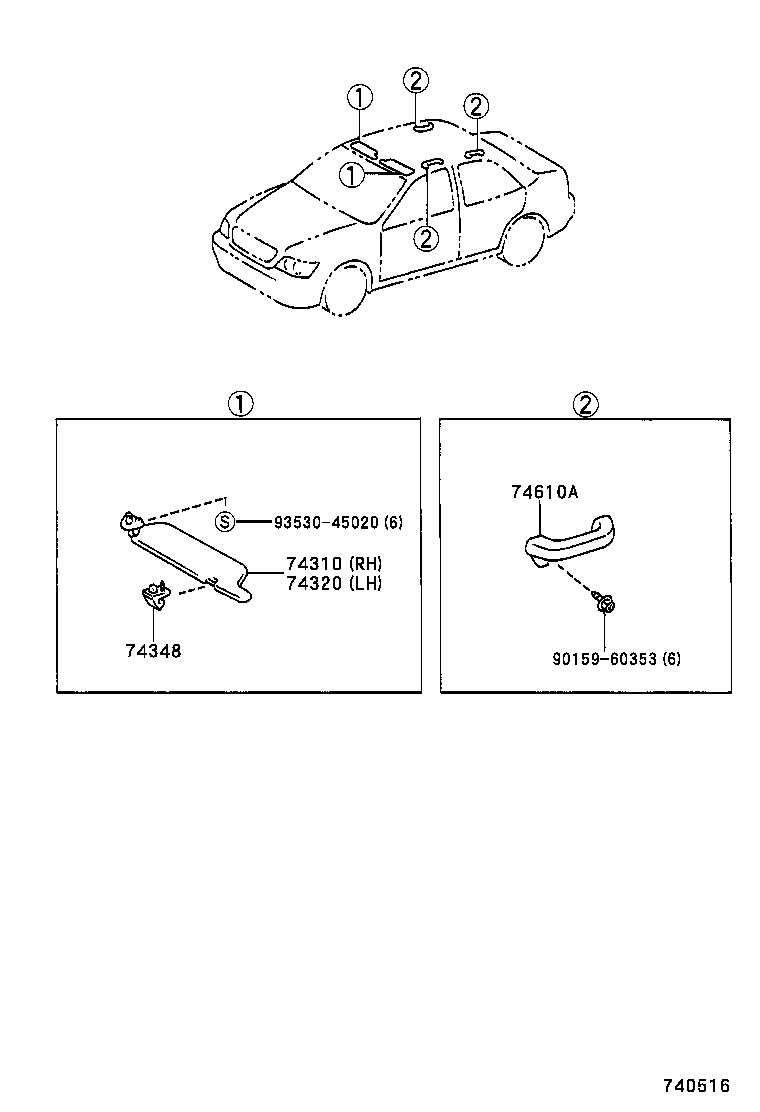

ﾊﾞｲｻﾞ- & ｱｼｽﾄｸﾞﾘﾂﾌﾟ

diagram 74310 74320 74348 74610A 9015960353 9353045020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-32690A0

SV5#,ZZV50

ﾋﾞﾆ-ﾙ ﾚｻﾞ-,IVORY,TRIM0#

 1
74310-32690G0

SV5#,ZZV50

ﾋﾞﾆ-ﾙ ﾚｻﾞ-,MIST GREEN,TRIM6#

 1
74310-32691A0

AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,N180,N180E,N200,N200E

IVORY,TRIM0#

 1
74310-32740G0

SV55,ZZV50..SED

VJﾊﾟﾂｹ-ｼﾞ *(C),MIST GREEN,TRIM6#

 1
74310-32691A0

AZV50,SV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N200,N200E

IVORY,TRIM0#

 1
74310-32691B0

AZV5#,SV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N200,N200E

LT. GRAY,TRIM1#

 1
74310-32740A1

SV55,ZZV50..SED

VJﾊﾟﾂｹ-ｼﾞ *(C),IVORY,TRIM0#

 1
74310-32691A0

AZV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N200,N200E

IVORY,TRIM0#

 1
74320 - VISOR ASSY, LH
74320-32600A0

SV5#,ZZV50

ﾋﾞﾆ-ﾙ ﾚｻﾞ-,IVORY,TRIM0#

 1
74320-32601A0

AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,N180,N180E,N200,N200E

IVORY,TRIM0#

 1
74320-32601B0

AZV5#,SV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N200,N200E

LT. GRAY,TRIM1#

 1
74320-32601A0

AZV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N200,N200E

IVORY,TRIM0#

 1
74320-32600G0

SV5#,ZZV50

ﾋﾞﾆ-ﾙ ﾚｻﾞ-,MIST GREEN,TRIM6#

 1
74320-32620A1

SV55,ZZV50..SED

VJﾊﾟﾂｹ-ｼﾞ *(C),IVORY,TRIM0#

 1
74320-32601A0

AZV50,SV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N200,N200E

IVORY,TRIM0#

 1
74320-32620G0

SV55,ZZV50..SED

VJﾊﾟﾂｹ-ｼﾞ *(C),MIST GREEN,TRIM6#

 1
74348 - HOLDER, VISOR
74348-22020A2

AZV50,SV5#,ZZV50

IVORY,TRIM0#

 2
74348-22020G2

SV5#,ZZV50

AGATE,TRIM6#

 2
74348-22020P3

AZV5#,SV5#,ZZV50

LT.GRAY,TRIM1#

 2
74348-22020A2

AZV5#,ZZV50

IVORY,TRIM0#

 2
74348-22020A2

AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L

IVORY,TRIM0#

 2
74610A - GRIP SUB-ASSY, ASSIST
74611-20030A1

AZV50,SV5#,ZZV50

IVORY,TRIM0#

 3
74611-20030G1

SV5#,ZZV50

AGATE,TRIM6#

 3
74611-20030A1

AZV5#,ZZV50

IVORY,TRIM0#

 3
74611-20030A1

AZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L

IVORY,TRIM0#

 3
74611-20030B8

AZV5#,ZZV50

LT.GRAY,TRIM1#

 3
74611-20030B3

AZV5#,SV5#,ZZV50

LT.GRAY,TRIM1#

 3
Common parts
90159-60353
93530-45020
