ZZV50-BESMK (1998)
Toyota Vista/Vista Ardeo
Production
Jun 1998
-
Jul 2003
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9806- )1ZZFE

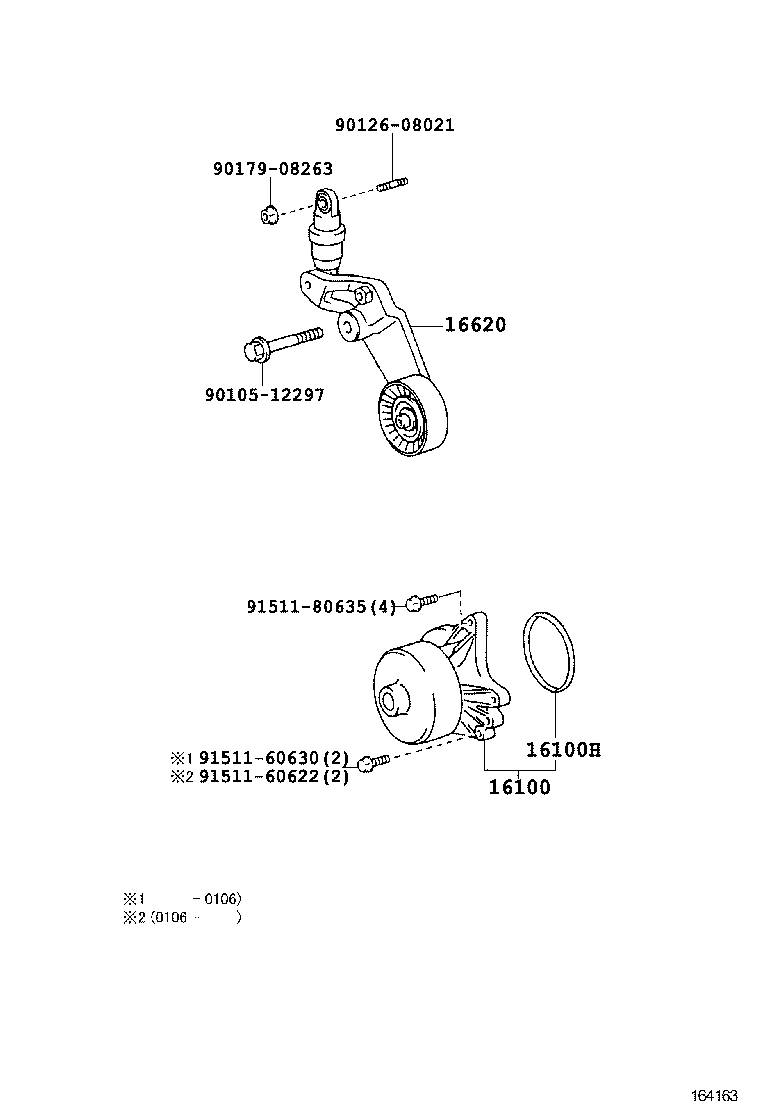

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-29095 |
1ZZFE..ZZV50 |
1 | ||
| 16100-29175 |
1ZZFE..ZZV50 |
1 | ||
| 16100H - RING, O(FOR WATER PUMP) | ||||
| 90301-69006 |
1ZZFE..ZZV50 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-22010 |
1ZZFE..ZZV50 |
1 | ||
| Common parts | ||||
| 90105-12297 | ||||
| 90126-08021 | ||||
| 90179-08263 | ||||
| 91511-60622 | ||||
| 91511-60630 | ||||
| 91511-80635 | ||||
