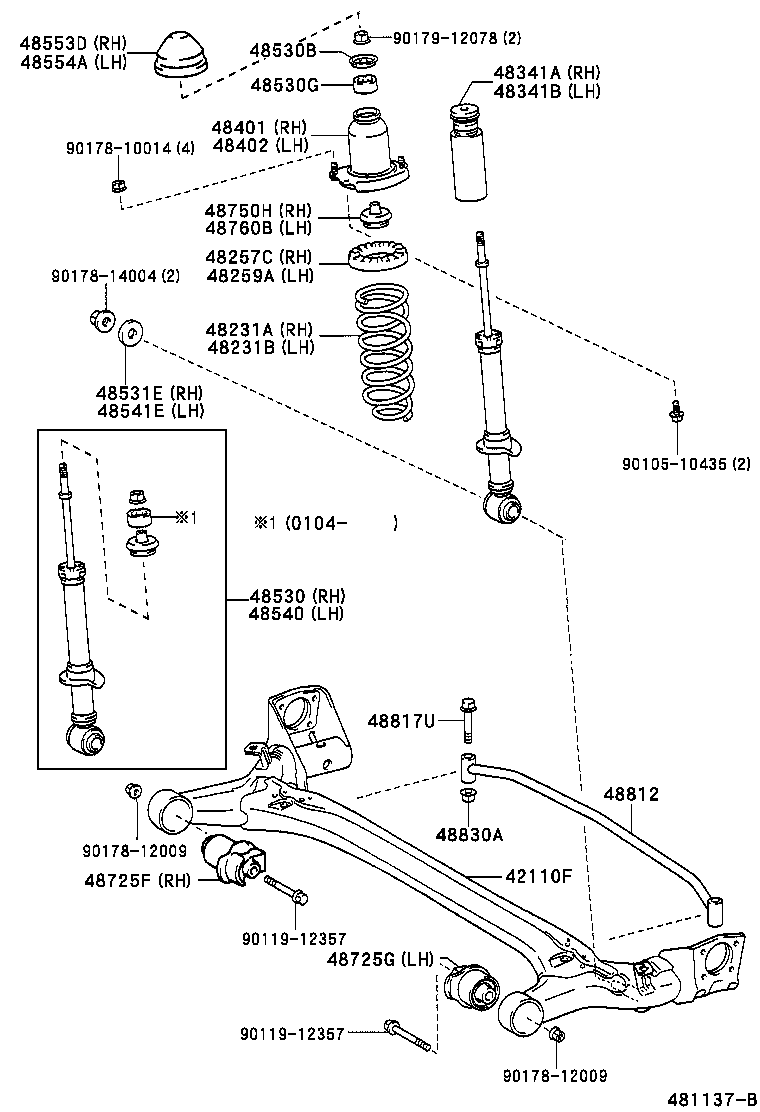

ZZV50-BESLK (2000)
Toyota Vista/Vista Ardeo
(0004- )AZV50,SV50,ZZV50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42101-32010 |
ZZV50 |
1 | ||
| 42101-32030 |
ZZV50 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-3H270 |
SV50,ZZV50..SED |
1 | ||
| 48231-3H250 |
SV50,ZZV50..SED |
1 | ||
| 48231-3H310 |
AZV50,ZZV50..SED |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-3H250 |
SV50,ZZV50..SED |
1 | ||
| 48231-3H270 |
SV50,ZZV50..SED |
1 | ||
| 48231-3H310 |
AZV50,ZZV50..SED |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-47010 |
SV50,ZZV50 |
1 | ||
| 48257-32090 |
AZV50,SV50,ZZV50 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-47010 |
SV50,ZZV50 |
1 | ||
| 48257-32090 |
AZV50,SV50,ZZV50 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-47010 |
AZV50,SV50,ZZV50 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-47010 |
AZV50,SV50,ZZV50 |
1 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48401-32020 |
AZV50,SV50,ZZV50 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48403-32010 |
AZV50,SV50,ZZV50 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-39686 |
AZV50,SV50,ZZV50..SED ﾏｰｸ 48530−32400 |
1 | ||
| 48530-39685 |
SV50,ZZV50..SED ﾏｰｸ 48530−32400 |
1 | ||
| 48530-39525 |
SV50,ZZV50..SED ﾏｰｸ 48530−32390 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03021 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01067 |
SV50,ZZV50 |
2 | ||
| 48755-63010 |
AZV50,SV50,ZZV50 |
2 | ||
| 48531E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH) | ||||
| 90560-14028 |
AZV50,ZZV50 |
1 | ||
| 90948-02060 |
SV50,ZZV50 |
1 | ||
| 90560-14028 |
SV50,ZZV50 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-39525 |
SV50,ZZV50..SED ﾏｰｸ 48530−32390 |
1 | ||
| 48530-39686 |
AZV50,SV50,ZZV50..SED ﾏｰｸ 48530−32400 |
1 | ||
| 48530-39685 |
SV50,ZZV50..SED ﾏｰｸ 48530−32400 |
1 | ||
| 48541E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH) | ||||
| 90948-02060 |
SV50,ZZV50 |
1 | ||
| 90560-14028 |
SV50,ZZV50 |
1 | ||
| 90560-14028 |
AZV50,ZZV50 |
1 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-32030 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-32030 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-32280 |
AZV50,SV50,ZZV50 |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-32280 |
AZV50,SV50,ZZV50 |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-47010 |
AZV50,SV50,ZZV50 |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-47010 |
AZV50,SV50,ZZV50 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-32450 |
SV50,ZZV50 |
1 | ||
| 48812-32480 |
AZV50,SV50,ZZV50 |
1 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 90105-14138 |
AZV50,SV50,ZZV50 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-14062 |
AZV50,SV50,ZZV50 |
2 | ||
| Common parts | ||||
| 90105-10435 | ||||
| 90119-12357 | ||||
| 90178-10014 | ||||
| 90178-12009 | ||||
| 90178-14004 | ||||
| 90179-12078 | ||||
