ZZV50-BESLK (2000)

Toyota Vista/Vista Ardeo

Production Apr 2000 - Jul 2003
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0004- )AZV50,SV50,ZZV50

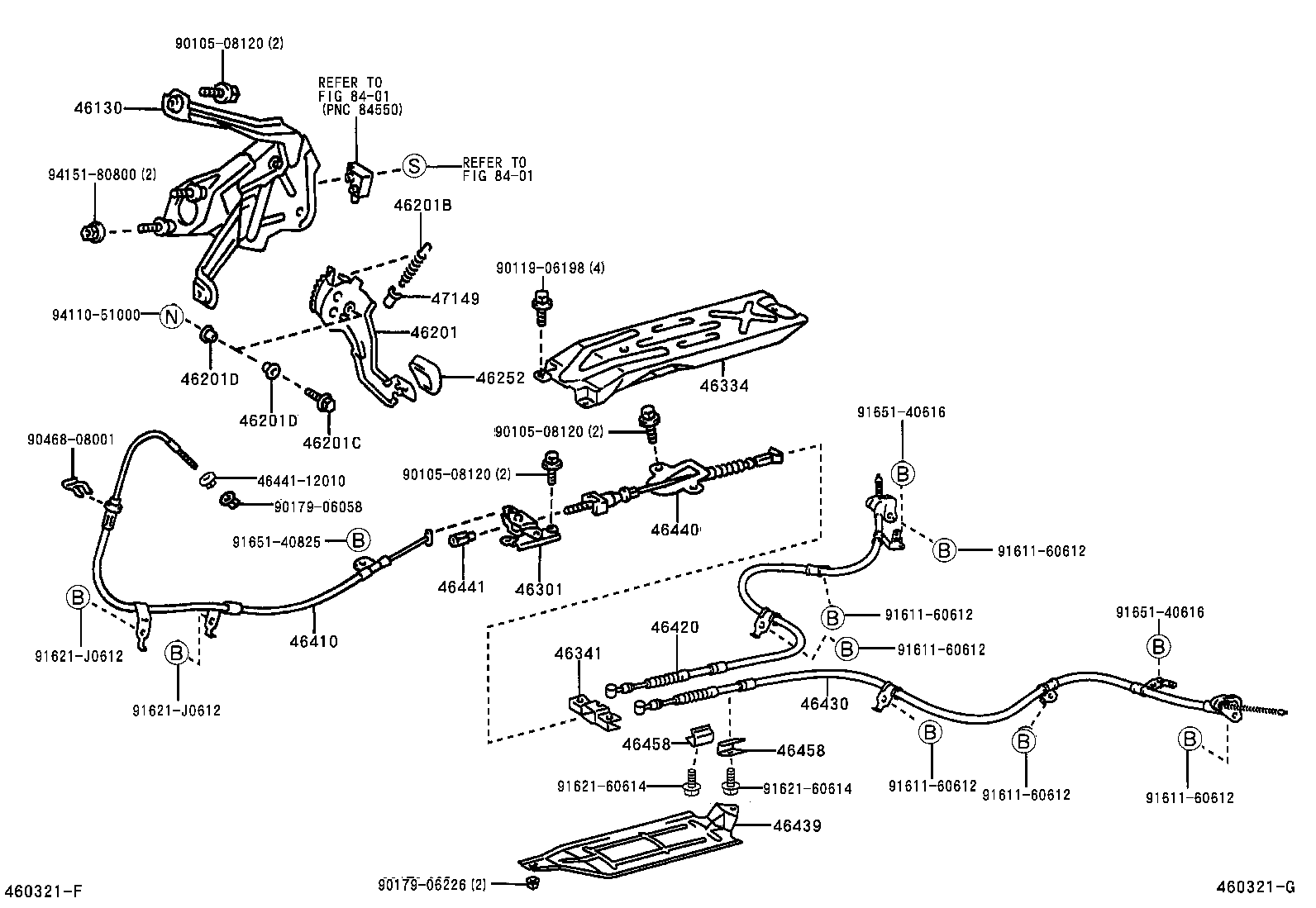

Click highlighted areas on diagram

diagram 46130 46201 46201B 46201C 46201D 46201D 46252 46301 46334 46341 46410 46420 46430 46439 46440 46441 4644112010 46458 46458 47149 8401 8401 9010508120 9010508120 9010508120 9011906198 9017906058 9017906226 9046808001 9161160612 9161160612 9161160612 9161160612 9161160612 9161160612 9162160614 9162160614 91621J0612 91621J0612 9165140616 9165140616 9165140825 9411051000 9415180800
Part # Description Qty Price
46130 - BRACKET ASSY, PARKING BRAKE PEDAL
46130-32050

SV5#,ZZV50

 1
46130-32051

SV5#,ZZV50

 1
46130-32052

AZV5#,SV55,ZZV50

 1
46201 - PEDAL SUB-ASSY, PARKING BRAKE
46210-47010

AZV5#,SV5#,ZZV50

 1
46201B - SPRING, TENSION
90506-19005

AZV5#,SV5#,ZZV50

 1
46201C - SHAFT, PEDAL
90109-10033

AZV5#,SV5#,ZZV50

 1
46201D - BUSH(FOR PARKING BRAKE PEDAL)
90386-16022

AZV5#,SV5#,ZZV50

 2
46201D - BUSH(FOR PARKING BRAKE PEDAL)
90386-16022

AZV5#,SV5#,ZZV50

 2
46252 - PAD, PARKING PEDAL
46252-33010

AZV5#,SV5#,ZZV50

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-47010

AZV5#,SV5#,ZZV50

 1
46334 - PROTECTOR, INTERMEDIATE LEVER
46334-32021

AZV5#,ZZV50

 1
46334-32010

SV5#,ZZV50

 1
46341 - EQUALIZER, PARKING BRAKE
46341-12020

AZV5#,SV5#,ZZV50

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-32150

AZV5#,SV5#,ZZV50

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-32240

ZZV50

 1
46420-32290

ZZV50

 1
46420-32291

ZZV50

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-32240

ZZV50

 1
46430-32290

ZZV50

 1
46430-32291

ZZV50

 1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46408-32010

SV50,ZZV50

 1
46408-63010

AZV50,SV50,ZZV50

 1
46440 - CABLE ASSY, PARKING BRAKE, NO.4
46440-32050

AZV5#,SV5#,ZZV50

 1
46440-32040

SV5#,ZZV50

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-47010

AZV5#,SV5#,ZZV50

 2
46458 - RETAINER, CABLE
46458-28010

AZV5#,SV5#,ZZV50

 2
46458 - RETAINER, CABLE
46458-28010

AZV5#,SV5#,ZZV50

 2
47149 - DAMPER, RETURN SPRING
47149-22010

AZV5#,SV5#,ZZV50

 1
Common parts
46441-12010
90105-08120
90119-06198
90179-06058
90179-06226
90468-08001
91611-60612
91621-60614
91621-J0612
91651-40616
91651-40825
94110-51000
94151-80800
Linked diagrams
8401
