ZZV50-BESEK (2000)
Toyota Vista/Vista Ardeo

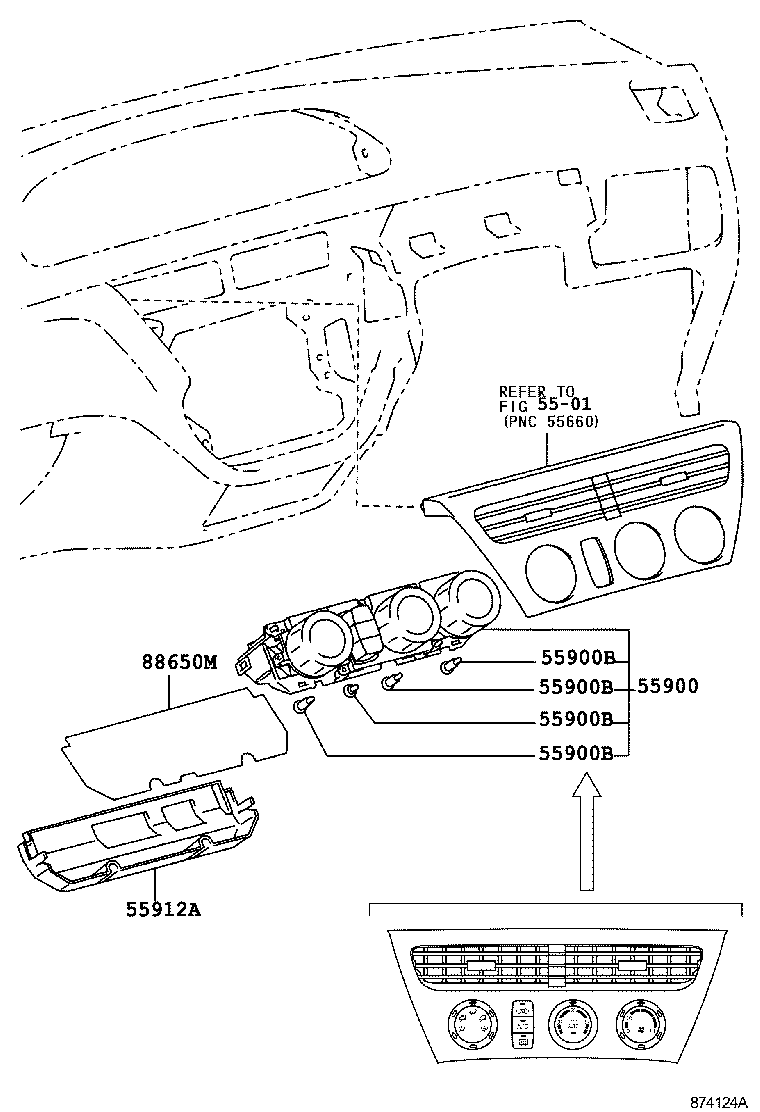

ILLUST NO. 1 OF 3(0004- )
ｺﾝﾄﾛ-ﾙ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-32420 |
SV5#,ZZV50 |
1 | ||
| 55900-32490 |
SV5#,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180L,N200,N200G,N200L ｱﾘ(ﾜｲﾄﾞ ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ OR ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) & ｱﾘ(ﾐﾗ- ﾋ-ﾀ) |
1 | ||
| 55900-32430 |
SV5#,ZZV50 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾜｲﾄﾞ ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ OR ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 55900-32440 |
SV5#,ZZV50 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 55900-32500 |
AZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,N180,N180E,N200,N200E ｱﾘ(ﾐﾗ- ﾋ-ﾀ) |
1 | ||
| 55900-32520 |
AZV55,SV55,ZZV50..A180E,A200E,N180E,N200E |
1 | ||
| 55900-32490 |
AZV50,SV55,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180L,N200,N200G,N200L ｱﾘ(ﾜｲﾄﾞ ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ OR ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) & ｱﾘ(ﾐﾗ- ﾋ-ﾀ) |
1 | ||
| 55900-32490 |
AZV5#,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180E,N180L,N200,N200E,N200G,N200L ｱﾘ(ﾜｲﾄﾞ ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ OR ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) & ｱﾘ(ﾐﾗ- ﾋ-ﾀ) |
1 | ||
| 55900-32410 |
SV5#,ZZV50 ｱﾘ(ﾜｲﾄﾞ ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ OR ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 55900-32500 |
AZV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N200,N200E ｱﾘ(ﾐﾗ- ﾋ-ﾀ) |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05108 |
SV5#,ZZV50 14V 0.91W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05106 |
AZV5#,SV55,ZZV50 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
3 | ||
| 90010-05106 |
SV5#,ZZV50 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
3 | ||
| 90010-05108 |
AZV5#,SV55,ZZV50 14V 0.91W,ｷｬｯﾌﾟ付き |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05108 |
SV5#,ZZV50 14V 0.91W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05106 |
AZV5#,SV55,ZZV50 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
3 | ||
| 90010-05106 |
SV5#,ZZV50 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
3 | ||
| 90010-05108 |
AZV5#,SV55,ZZV50 14V 0.91W,ｷｬｯﾌﾟ付き |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05108 |
SV5#,ZZV50 14V 0.91W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05106 |
AZV5#,SV55,ZZV50 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
3 | ||
| 90010-05106 |
SV5#,ZZV50 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
3 | ||
| 90010-05108 |
AZV5#,SV55,ZZV50 14V 0.91W,ｷｬｯﾌﾟ付き |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05108 |
SV5#,ZZV50 14V 0.91W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-05106 |
AZV5#,SV55,ZZV50 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
3 | ||
| 90010-05106 |
SV5#,ZZV50 14V 0.91W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
3 | ||
| 90010-05108 |
AZV5#,SV55,ZZV50 14V 0.91W,ｷｬｯﾌﾟ付き |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-32030 |
SV5#,ZZV50 |
1 | ||
| 55912-32020 |
SV5#,ZZV50 |
1 | ||
| 55912-32030 |
AZV5#,ZZV50;SV55..A200,A200E,A200G,N200,N200E,N200G,N200L |
1 | ||
| 88650M - COMPUTER ASSY, AIR CONDITIONER | ||||
| 88650-32440 |
SV5#,ZZV50 |
1 | ||
| 88650-32430 |
SV5#,ZZV50 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ) |
1 | ||
| 88650-32450 |
SV5#,ZZV50 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88650-32480 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 88650-32490 |
AZV5#,SV5#,ZZV50 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88650-32420 |
SV5#,ZZV50 ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ) |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||
