ZZV50-BESEK (2000)
Toyota Vista/Vista Ardeo
Production
Apr 2000
-
Jul 2003
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0004- )ZZV50

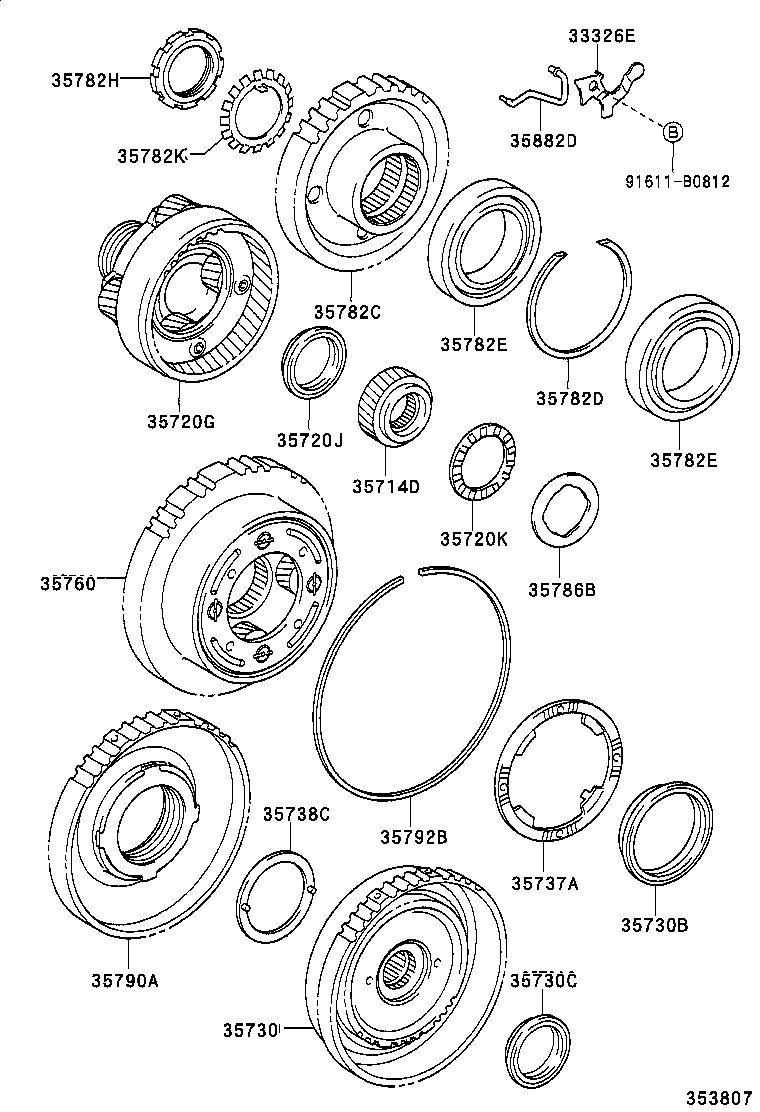

Click highlighted areas on diagram
U341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33326E - PLATE, BEARING LOCK | ||||
| 33326-20010 |
ZZV50 |
1 | ||
| 35714D - GEAR, FR PLANETARY SUN | ||||
| 35714-52020 |
ZZV50 |
1 | ||
| 35720G - GEAR ASSY, PLANETARY | ||||
| 35720-52020 |
ZZV50 |
1 | ||
| 35720J - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT) | ||||
| 90374-33006 |
ZZV50 |
1 | ||
| 35720K - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR) | ||||
| 90374-33007 |
ZZV50 |
1 | ||
| 35730 - GEAR ASSY, REAR PLANETARY SUN | ||||
| 35730-21010 |
SV5#,ZZV50 |
1 | ||
| 35730-52020 |
ZZV50 |
1 | ||
| 35730B - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN G | ||||
| 90374-33003 |
SV5#,ZZV50 |
1 | ||
| 90374-43003 |
ZZV50 |
1 | ||
| 35730C - BEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO. | ||||
| 90374-29002 |
ZZV50 |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-52020 |
ZZV50 |
1 | ||
| 35737-21010 |
SV5#,ZZV50 |
1 | ||
| 35738C - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-52010 |
ZZV50 |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-52010 |
ZZV50 |
1 | ||
| 35760-21020 |
SV5#,ZZV50 |
1 | ||
| 35782C - GEAR, COUNTER DRIVE | ||||
| 35782-32030 |
SV5#,ZZV50 |
1 | ||
| 35782-52020 |
ZZV50 |
1 | ||
| 35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR) | ||||
| 90520-89002 |
SV5#,ZZV50 NO.2 |
1 | ||
| 90520-84001 |
SV5#,ZZV50 NO.1 |
1 | ||
| 90520-83001 |
ZZV50 |
1 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90366-52007 |
ZZV50 |
2 | ||
| 90363-52005 |
ZZV50 |
2 | ||
| 90366-60009 |
SV5#,ZZV50 |
2 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90366-52007 |
ZZV50 |
2 | ||
| 90363-52005 |
ZZV50 |
2 | ||
| 90366-60009 |
SV5#,ZZV50 |
2 | ||
| 35782H - NUT(FOR COUNTER DRIVE GEAR) | ||||
| 90179-40009 |
ZZV50 |
1 | ||
| 90179-40008 |
ZZV50 |
1 | ||
| 35782K - WASHER, LOCK(FOR COUNTER DRIVE GEAR LOCK NUT) | ||||
| 90215-40001 |
ZZV50 |
1 | ||
| 90215-40002 |
ZZV50 |
1 | ||
| 35786B - RACE, THRUST BEARING, NO.2 | ||||
| 35787-52010 |
ZZV50 |
1 | ||
| 35790A - CLUTCH ASSY, 1 WAY | ||||
| 35790-52020 |
ZZV50 |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90520-99053 |
ZZV50 |
1 | ||
| 35882D - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-52020 |
ZZV50 |
1 | ||
| Common parts | ||||
| 91611-B0812 | ||||
