SV55G-BWSSK (2000)

Toyota Vista/Vista Ardeo

Production Apr 2000 - Apr 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9806-0204)SV55

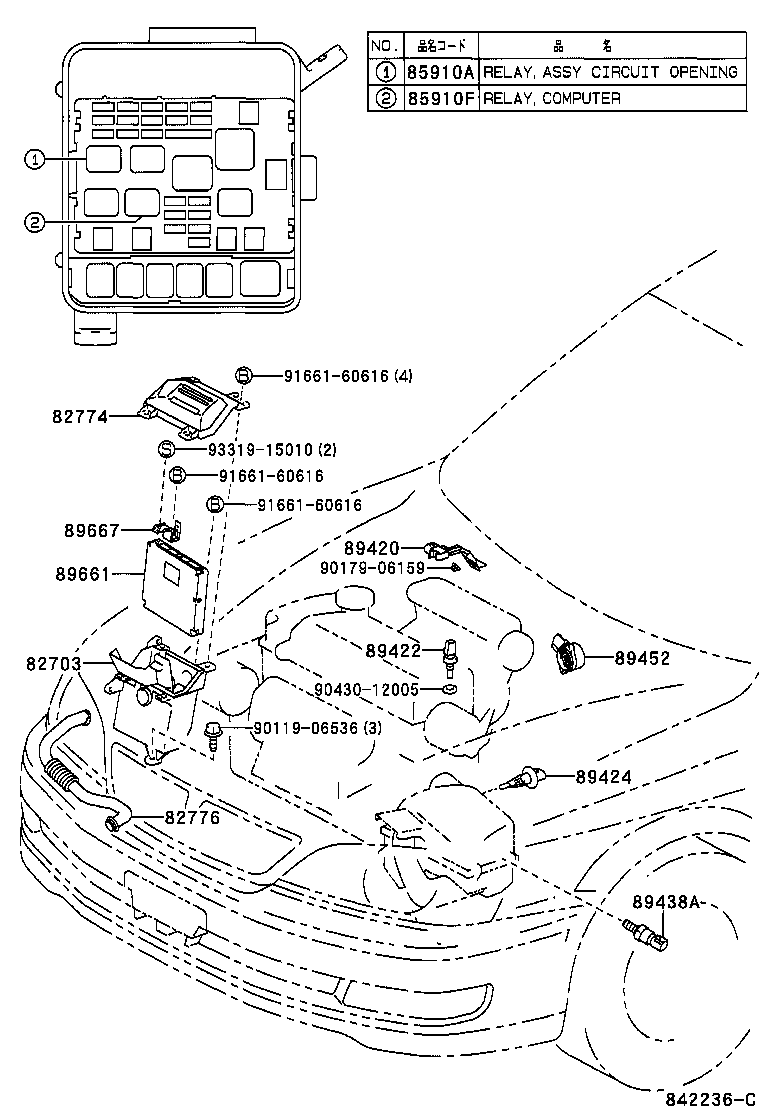

Click highlighted areas on diagram

diagram 82703 82774 82776 85910A 85910F 89420 89422 89424 89438A 89452 89661 89667 9011906536 9017906159 9043012005 9166160616 9166160616 9166160616 9331915010
Part # Description Qty Price
82703 - BOX SUB-ASSY, ENGINE ROOM ECU
82703-32010

SV5#,ZZV50

 1
82774 - COVER, ENGINE ROOM ECU
82774-32010

AZV5#,SV5#,ZZV50

 1
82776 - DUCT, ENGINE ROOM ECU OUTLET
82776-32010

AZV5#,SV5#,ZZV50

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02022

AZV5#,SV55,ZZV50

 1
90987-02015

SV5#,ZZV50

 1
90987-02012

SV5#,ZZV50

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02015

SV5#,ZZV50

 1
90987-02012

SV5#,ZZV50

 1
90987-02022

AZV5#,SV55,ZZV50

 1
89420 - SENSOR ASSY, VACUUM
89420-32080

SV5#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

AZV5#,SV5#,ZZV50

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

AZV5#,SV5#

 1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-33010

AZV5#,SV5#,ZZV50

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-33030

SV55

 1
89661 - COMPUTER, ENGINE CONTROL
89661-3H040

SV55

FUJITSU TEN

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-32060

SV5#,ZZV50

 1
89667-32080

AZV5#,SV55

 1
89667-32060

SV5#

 1
Common parts
90119-06536
90179-06159
90430-12005
91661-60616
93319-15010
