SV55G-BWSSK (2000)

Toyota Vista/Vista Ardeo

Production Apr 2000 - Apr 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

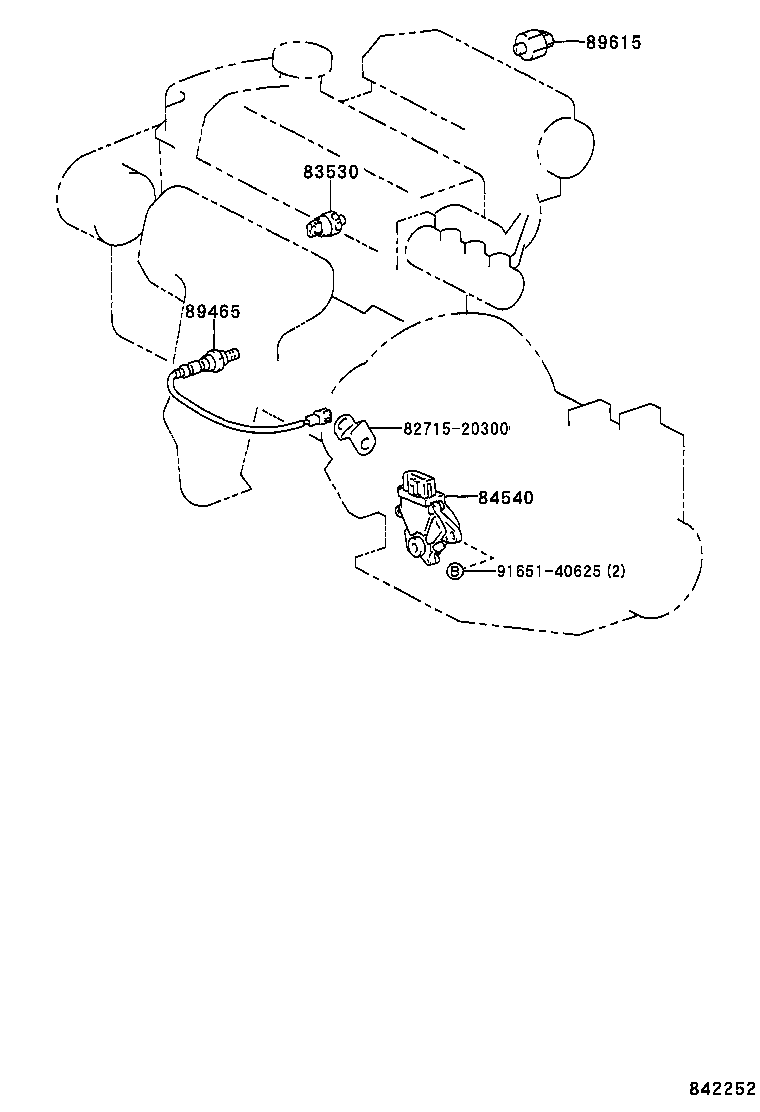

ILLUST NO. 1 OF 6(9806-0204)SV5#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ

diagram 8271520300 83530 84540 89465 89615 9165140625
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60020

SV5#,ZZV50

 1
83530-60020

AZV5#,SV5#,ZZV50

YAZAKI

 1
83530-28020

AZV5#,SV5#,ZZV50

DENSO

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-32110

SV5#

 1
84540-32110

SV5#,ZZV50

 1
89465 - SENSOR, OXYGEN
89465-20270

SV55

 1
89615 - SENSOR, KNOCK CONTROL
89615-33020

SV5#

DENSO

 1
89615-20030

SV5#

TOYOTA

 1
Common parts
82715-20300
91651-40625
