SV55G-BWSSK (2000)

Toyota Vista/Vista Ardeo

Production Apr 2000 - Apr 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

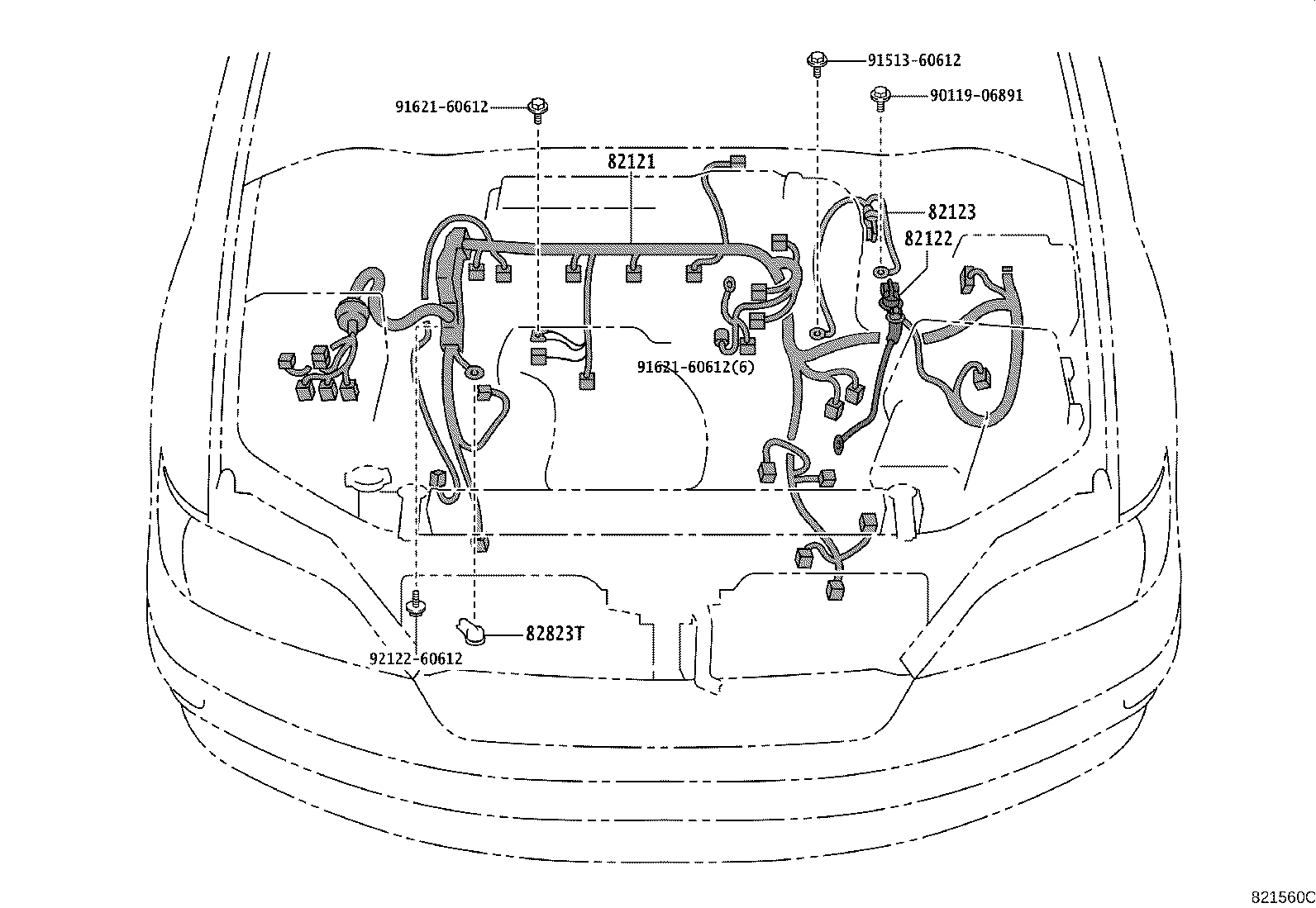

ILLUST NO. 2 OF 9(9806-0204)SV55

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

diagram 82121 82122 82123 82823T 9011906891 9151360612 9162160612 9162160612 9212260612
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-3H860

SV55

 1
82122 - WIRE, ENGINE, NO.2
82122-32241

AZV5#,SV55

 1
82122-32240

SV5#

 1
82123 - WIRE, ENGINE, NO.3
82123-32180

SV5#,ZZV50

 1
82123-32180

SV5#

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

AZV5#,SV5#,ZZV50

 1
Common parts
90119-06891
91513-60612
91621-60612
92122-60612
