SV55G-BWSSK (2000)

Toyota Vista/Vista Ardeo

Production Apr 2000 - Apr 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

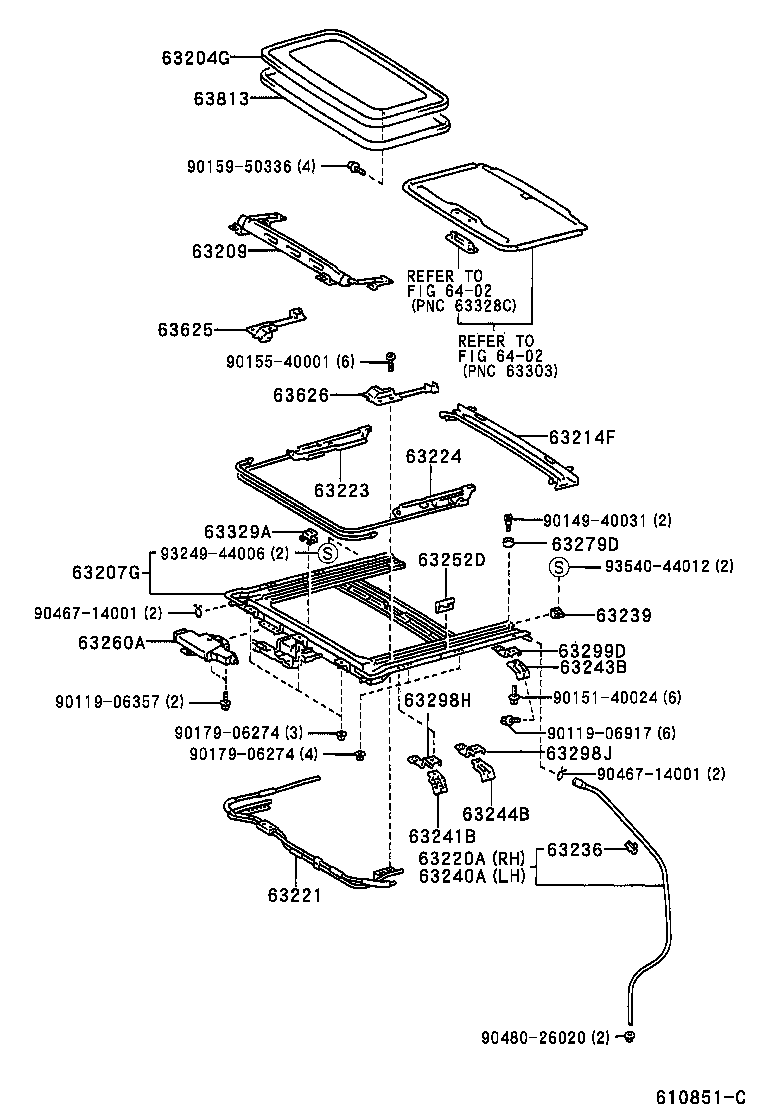

ILLUST NO. 3 OF 3(9806-0302)WG

Click highlighted areas on diagram

ｱﾘ(ﾑ-ﾝﾙ-ﾌ) RR

diagram 63204G 63207G 63209 63214F 63220A 63221 63223 63224 63236 63239 63240A 63241B 63243B 63244B 63252D 63260A 63279D 63298H 63298J 63299D 63329A 63625 63626 63813 6402 6402 9011906357 9011906917 9014940031 9015140024 9015540001 9015950336 9017906274 9017906274 9046714001 9046714001 9048026020 9324944006 9354044012
Part # Description Qty Price
63204G - PANEL SUB-ASSY, SLIDING ROOF, INNER
63204-32090

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
63207G - RAIL SUB-ASSY, SLIDING ROOF GUIDE
63207-32040

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-32050

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
63214F - CHANNEL, ROOF DRIP, REAR
63214-32050

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
63220A - HOSE ASSY, SLIDING ROOF DRAIN, RH
63220-32010

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
63221 - CASING, SLIDING ROOF CABLE GUIDE
63221-32040

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
63223 - CABLE, SLIDING ROOF DRIVE, RH
63223-32040

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
63224 - CABLE, SLIDING ROOF DRIVE, LH
63224-32040

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE
63236-32010

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 6
63239 - STOPPER, SLIDING ROOF PANEL
63239-12030

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 2
63240A - HOSE ASSY, SLIDING ROOF DRAIN, LH
63240-32010

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-32050

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 2
63243B - BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, RH
63243-32040

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 2
63244B - BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, LH
63244-32030

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 2
63252D - WEATHERSTRIP, SLIDING ROOF HOUSING
63252-44010

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 2
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-32030

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
63279D - STOPPER, SLIDING ROOF GUIDE RAIL
63279-12030

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 2
63298H - REINFORCEMENT, SLIDING ROOF HOUSING, NO.1
63298-32010

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
63298J - REINFORCEMENT, SLIDING ROOF HOUSING, NO.1
63298-32020

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
63299D - REINFORCEMENT, SLIDING ROOF HOUSING, NO.2
63299-32010

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 2
63329A - STOPPER, SUNSHADE LOCK
63329-32010

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
63625 - BLOCK, SLIDING ROOF GUIDE, RH
63625-32010

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
63626 - BLOCK, SLIDING ROOF GUIDE, LH
63626-32010

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
63813 - WEATHERSTRIP, REAR SLIDE ROOF
63813-32010

AZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S

 1
Common parts
90119-06357
90119-06917
90149-40031
90151-40024
90155-40001
90159-50336
90179-06274
90467-14001
90480-26020
93249-44006
93540-44012
Linked diagrams
6402
