SV55G-BWSSK (2000)
Toyota Vista/Vista Ardeo

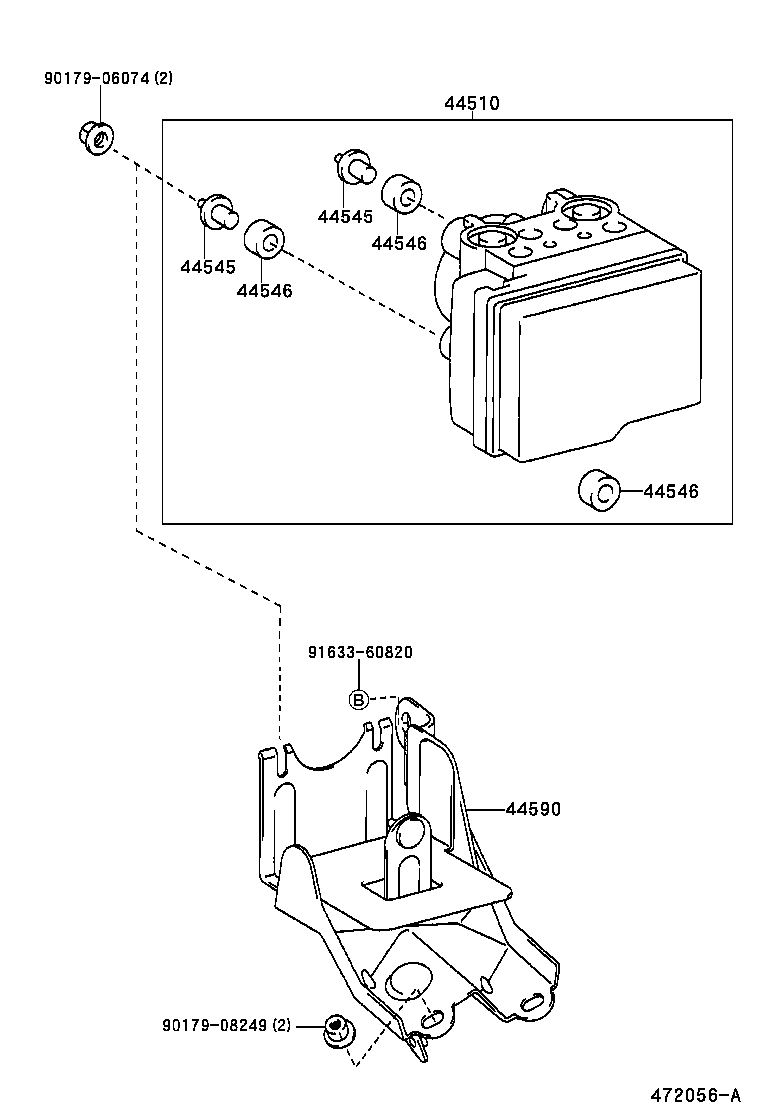

ILLUST NO. 2 OF 2(0004- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-32010 |
SV5#,ZZV50 |
1 | ||
| 44050-32040 |
AZV55,SV55 |
1 | ||
| 44545 - BOLT, UNION(FOR BRAKE ACTUATOR) | ||||
| 44545-63010 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 44545 - BOLT, UNION(FOR BRAKE ACTUATOR) | ||||
| 44545-63010 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 44546 - SPACER, AIR INLET | ||||
| 44546-63010 |
AZV5#,SV5#,ZZV50 |
3 | ||
| 44546 - SPACER, AIR INLET | ||||
| 44546-63010 |
AZV5#,SV5#,ZZV50 |
3 | ||
| 44546 - SPACER, AIR INLET | ||||
| 44546-63010 |
AZV5#,SV5#,ZZV50 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-32050 |
SV5#,ZZV50 |
1 | ||
| 44590-32060 |
AZV5#,SV5#,ZZV50 |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 90179-08249 | ||||
| 91633-60820 | ||||

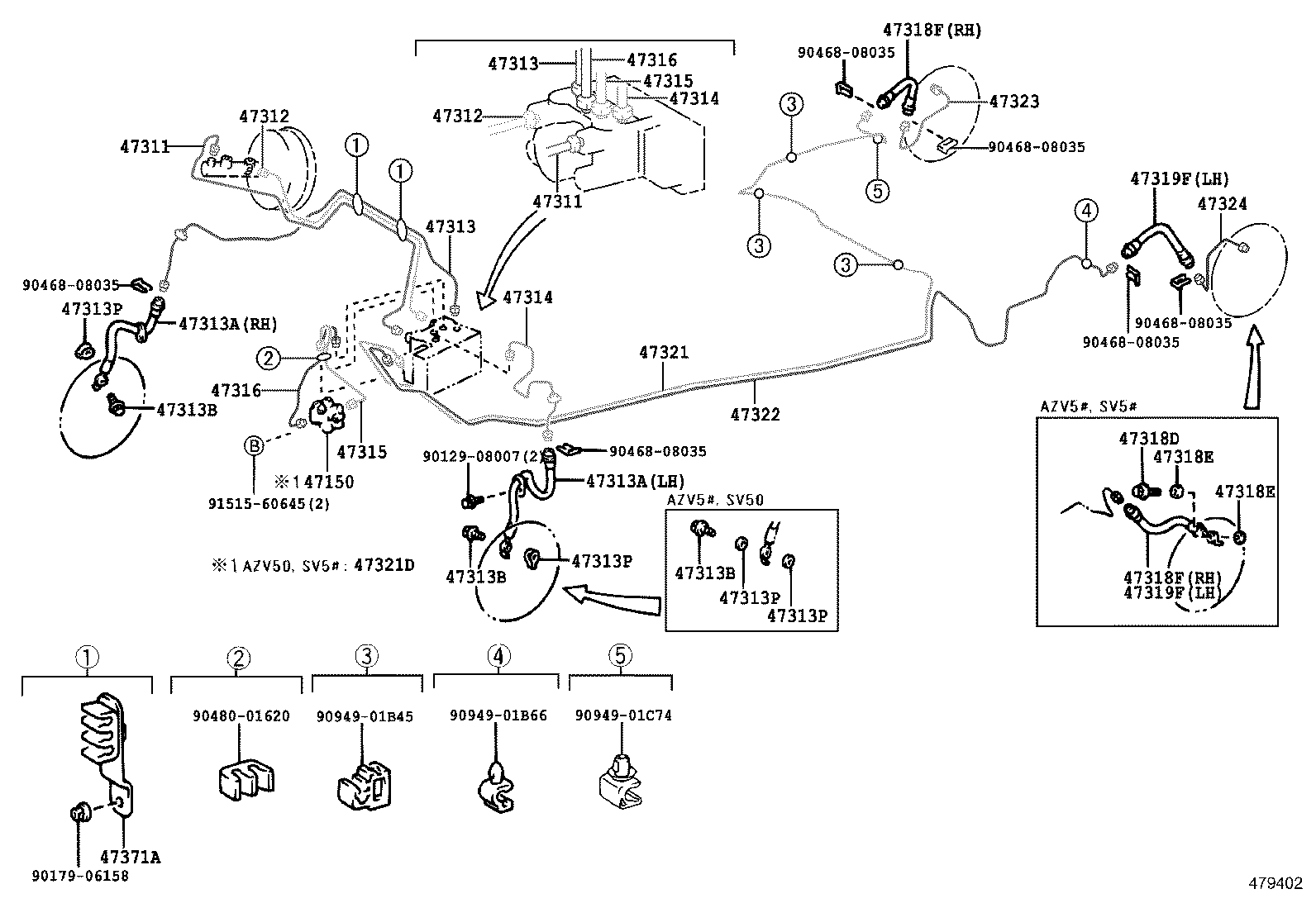

ILLUST NO. 1 OF 2(0004- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-32110 |
SV55,ZZV50 |
1 | ||
| 47311-32150 |
SV55,ZZV50 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-32110 |
SV55,ZZV50 |
1 | ||
| 47311-32150 |
SV55,ZZV50 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-32230 |
SV55,ZZV50 |
1 | ||
| 47312-32190 |
SV55,ZZV50 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-32230 |
SV55,ZZV50 |
1 | ||
| 47312-32190 |
SV55,ZZV50 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-32220 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 47313-32160 |
SV55,ZZV50 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-32220 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 47313-32160 |
SV55,ZZV50 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A35 |
SV5# 左側 |
1 | ||
| 90947-02A34 |
AZV5#,SV5#,ZZV50 右側 |
1 | ||
| 90947-02A35 |
AZV5#,SV5#,ZZV50 左側 |
1 | ||
| 90947-02A34 |
SV5# 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A35 |
SV5# 左側 |
1 | ||
| 90947-02A34 |
AZV5#,SV5#,ZZV50 右側 |
1 | ||
| 90947-02A35 |
AZV5#,SV5#,ZZV50 左側 |
1 | ||
| 90947-02A34 |
SV5# 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10045 |
SV5# |
2 | ||
| 90401-10058 |
SV55,ZZV50 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10045 |
SV5# |
2 | ||
| 90401-10058 |
SV55,ZZV50 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10045 |
SV5# |
2 | ||
| 90401-10058 |
SV55,ZZV50 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SV5# |
4 | ||
| 47389-50020 |
SV55,ZZV50 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SV5# |
4 | ||
| 47389-50020 |
SV55,ZZV50 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SV5# |
4 | ||
| 47389-50020 |
SV55,ZZV50 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SV5# |
4 | ||
| 47389-50020 |
SV55,ZZV50 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-32190 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 47314-32150 |
SV5#,ZZV50 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-32190 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 47314-32150 |
SV5#,ZZV50 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-32160 |
SV5#,ZZV50 |
1 | ||
| 47315-32190 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-32160 |
SV5#,ZZV50 |
1 | ||
| 47315-32190 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-32120 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 47316-32100 |
SV5#,ZZV50 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-32120 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 47316-32100 |
SV5#,ZZV50 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10045 |
AZV5#,SV5# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
AZV5#,SV5# |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
AZV5#,SV5# |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A37 |
AZV55,SV55 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A37 |
AZV55,SV55 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A37 |
AZV55,SV55 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A37 |
AZV55,SV55 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-32220 |
SV55 |
1 | ||
| 47321-32190 |
AZV55,SV55 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
AZV5#,SV5# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-32210 |
SV55 |
1 | ||
| 47322-32180 |
AZV55,SV55 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-32220 |
AZV5#,SV5#,ZZV50 |
2 | ||
| Common parts | ||||
| 90129-08007 | ||||
| 90179-06158 | ||||
| 90468-08035 | ||||
| 90480-01620 | ||||
| 90949-01B45 | ||||
| 90949-01B66 | ||||
| 90949-01C74 | ||||
| 91515-60645 | ||||
