SV55G-BWSSK (2000)

Toyota Vista/Vista Ardeo

Production Apr 2000 - Apr 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9806-0204)SV55

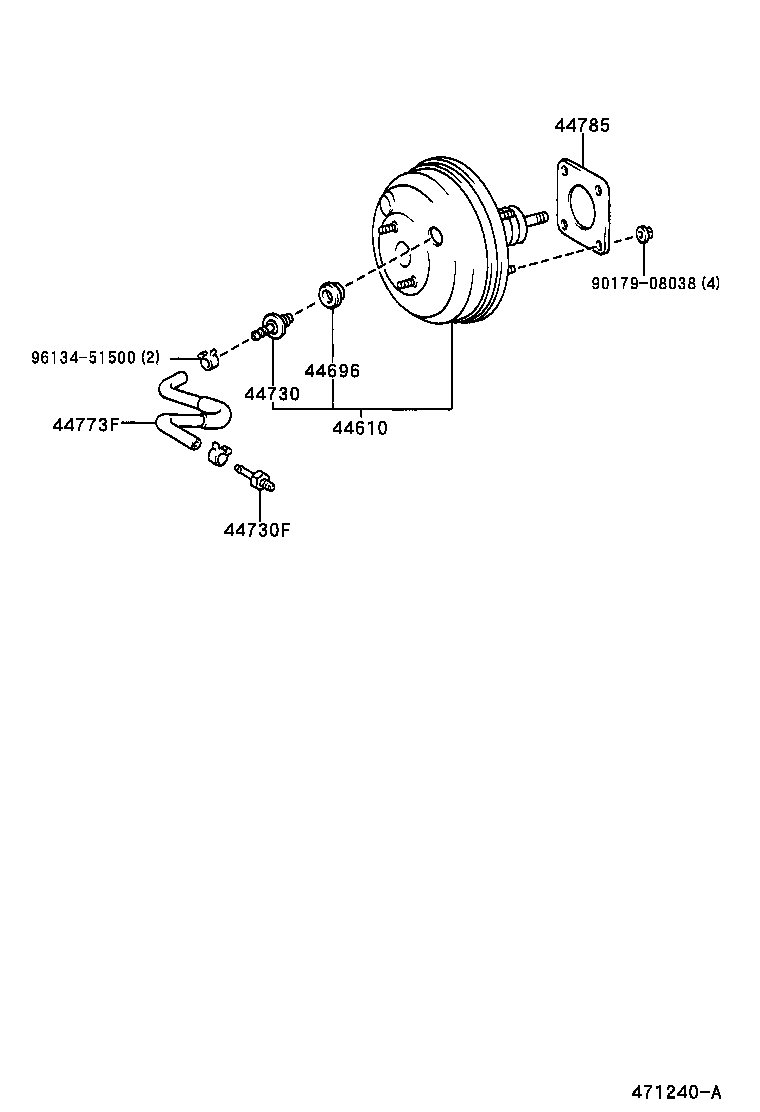

Click highlighted areas on diagram

diagram 44610 44696 44730 44730F 44773F 44785 9017908038 9613451500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-32630

SV55,ZZV50..WG

 1
44696 - GROMMET, CHECK VALVE
90480-24439

AZV5#,SV5#,ZZV50

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20080

SV55,ZZV50

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

SV55

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-32220

SV55

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

AZV5#,SV5#,ZZV50

 1
Common parts
90179-08038
96134-51500
