SV55G-BWSSK (2000)
Toyota Vista/Vista Ardeo
Production
Apr 2000
-
Apr 2002
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

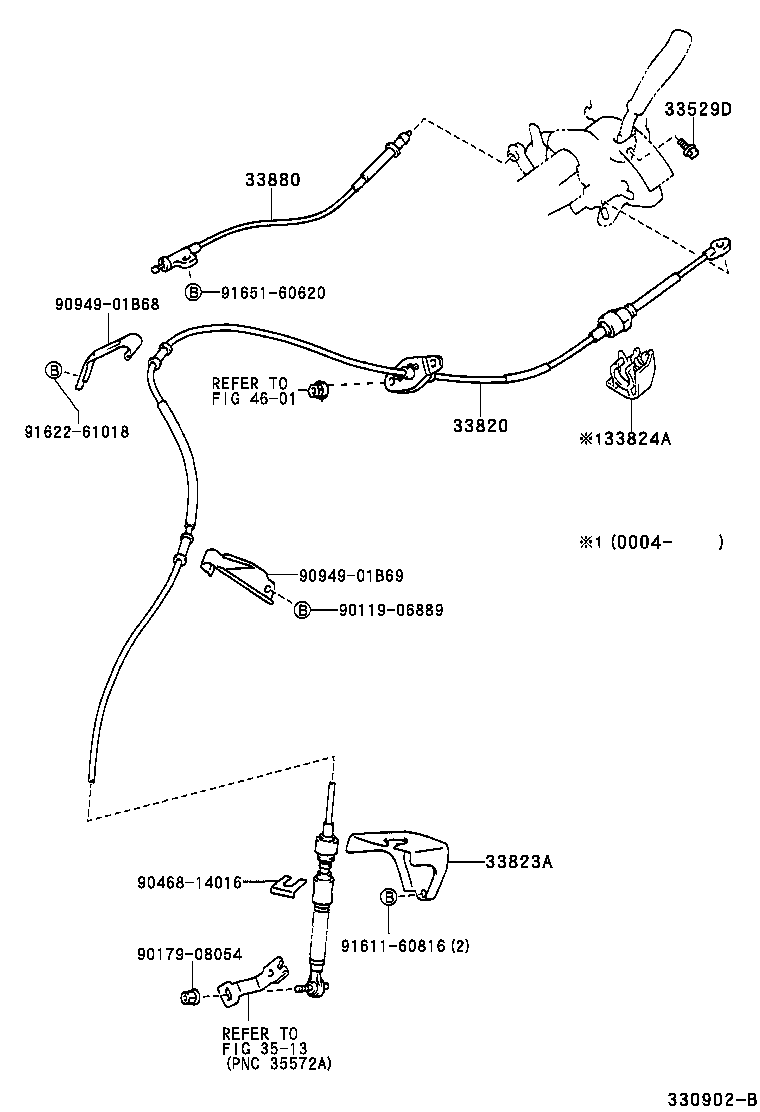

ILLUST NO. 2 OF 2(9806-0204)SV55
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33529D - BOLT, SHIFT LEVER | ||||
| 33529-63010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 33529-32010 |
SV5#,ZZV50 |
1 | ||
| 33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT) | ||||
| 33820-32420 |
SV55 |
1 | ||
| 33823A - BRACKET, TRANSMISSION CONTROL CABLE | ||||
| 33823-32050 |
SV5#,ZZV50 |
1 | ||
| 33823-32050 |
SV5# |
1 | ||
| 33824A - COVER, TRANSMISSION CONTROL CABLE | ||||
| 33824-32020 |
SV5#,ZZV50 |
1 | ||
| 33824-32021 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT) | ||||
| 33880-32010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| Common parts | ||||
| 90119-06889 | ||||
| 90179-08054 | ||||
| 90468-14016 | ||||
| 90949-01B68 | ||||
| 90949-01B69 | ||||
| 91611-60816 | ||||
| 91622-61018 | ||||
| 91651-60620 | ||||
| Linked diagrams | ||||
| 3513 | ||||
| 4601 | ||||
