SV55G-BWSSK (2000)

Toyota Vista/Vista Ardeo

Production Apr 2000 - Apr 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9806-0204)3SF#

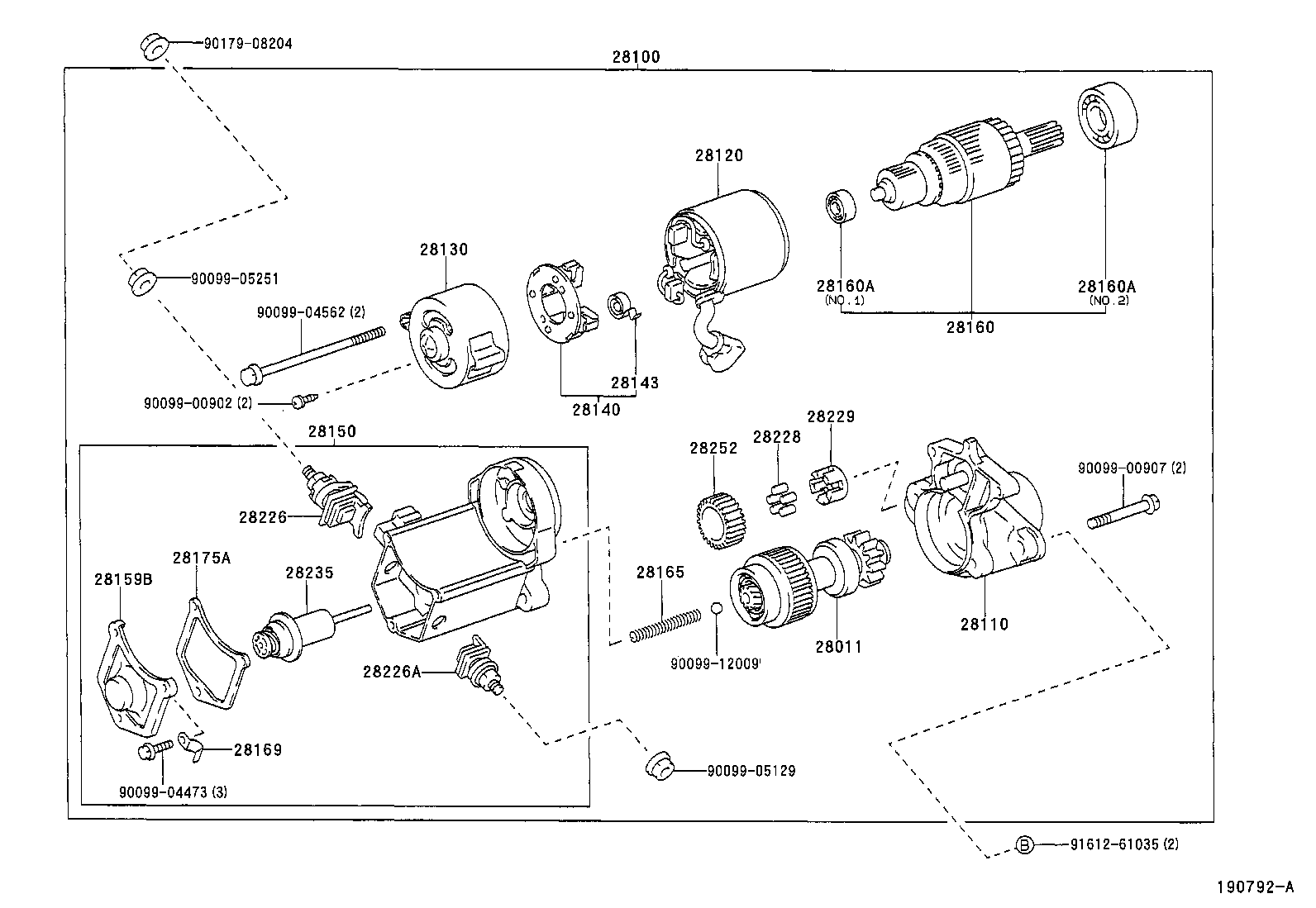

Click highlighted areas on diagram

12V 1.0KW

diagram 28011 28100 28110 28120 28130 28140 28143 28150 28159B 28160 28160A 28160A 28165 28169 28175A 28226 28226A 28228 28229 28235 28252 9009900902 9009900907 9009904473 9009904562 9009905129 9009905251 9009912009 9017908204 9161261035
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-74060

3SF#..SV5#

 1
28100 - STARTER ASSY
28100-74300

3SF#..SV5#

12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-74300

3SF#..SV5#

 1
28120 - YOKE ASSY, STARTER
28120-26071

3SF#..SV5#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-74300

3SF#..SV5#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-74010

3SF#..SV5#

 1
28143 - SPRING, STARTER BRUSH
90099-17112

3SF#..SV5#

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-74300

3SF#..SV5#

 1
28159B - COVER, MAGNET SWITCH
28159-10040

3SF#..SV5#

 1
28160 - ARMATURE ASSY, STARTER
28160-26071

3SF#..SV5#

 1
28160A - BEARING, STARTER ARMATURE
90099-10113

3SF#..SV5#

NO.2

 1
28253-45020

3SF#..SV5#

NO.1

 1
28160A - BEARING, STARTER ARMATURE
90099-10113

3SF#..SV5#

NO.2

 1
28253-45020

3SF#..SV5#

NO.1

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-74010

3SF#..SV5#

 1
28169 - CLAMP, STARTER MOTOR LEAD WIRE
28169-10040

3SF#..SV5#

 1
28175A - GASKET, MAGNET SWITCH COVER
28175-10040

3SF#..SV5#

 1
28226 - STARTER KIT, BATTERY TERMINAL
28226-74300

3SF#..SV5#

 1
28226A - STARTER KIT, MOTOR TERMINAL
28226-72010

3SF#..SV5#

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

1AZFSE,3SF#..AZV5#,SV5#

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

3SF#..SV5#

 1
28235 - PLUNGER, MAGNET SWITCH
28235-74060

3SF#..SV5#

 1
28252 - GEAR, STARTER IDLE
28254-54070

3SF#..SV5#

 1
Common parts
90099-00902
90099-00907
90099-04473
90099-04562
90099-05129
90099-05251
90099-12009
90179-08204
91612-61035
