SV55G-BWSSK (2000)
Toyota Vista/Vista Ardeo
(9806-0204)3SF#
12V 80A,12V 90A

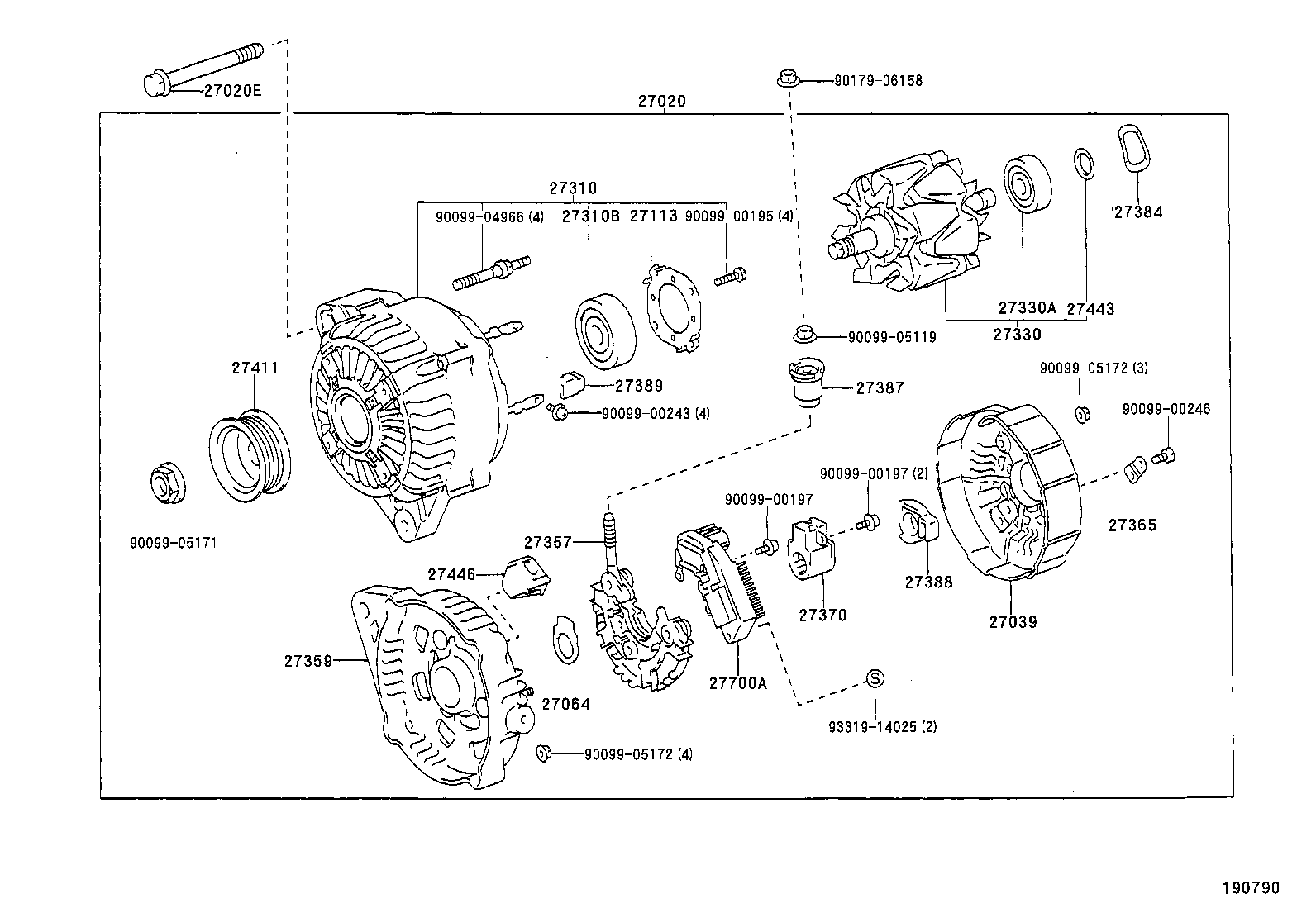

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-74840 |
3SFE..SV55 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10249 |
3SF#..SV5# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-74700 |
3SFE,1ZZFE..SV55,ZZV50 |
1 | ||
| 27039-30020 |
3SF#..SV5# |
1 | ||
| 27039-74700 |
3SF#..SV5# |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-42010 |
3SF#..SV5# |
1 | ||
| 27312-42010 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-74490 |
3SFE..SV55 |
1 | ||
| 27310-74490 |
3SF#..SV5# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
3SF#,1ZZFE..SV5#,ZZV50 |
1 | ||
| 90099-10192 |
1AZFSE,3SF#..AZV5#,SV5# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72280 |
3SF#,1ZZFE..SV5#,ZZV50 |
1 | ||
| 27330-74550 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27330-72280 |
3SFE..SV55 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-55080 |
3SFE,1ZZFE..SV55,ZZV50 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-74550 |
3SF#..SV5# |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42030 |
3SF#..SV5# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1AZFSE,3SF#,1ZZFE..AZV5#,SV5#,ZZV50 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-74250 |
3SF#..SV5# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74060 |
3SF#,1ZZFE..SV5#,ZZV50 |
1 | ||
| 27700-74060 |
3SF#..SV5# |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
