SV55G-BWSSK (2000)
Toyota Vista/Vista Ardeo
Production
Apr 2000
-
Apr 2002
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9806-0204)3SFE

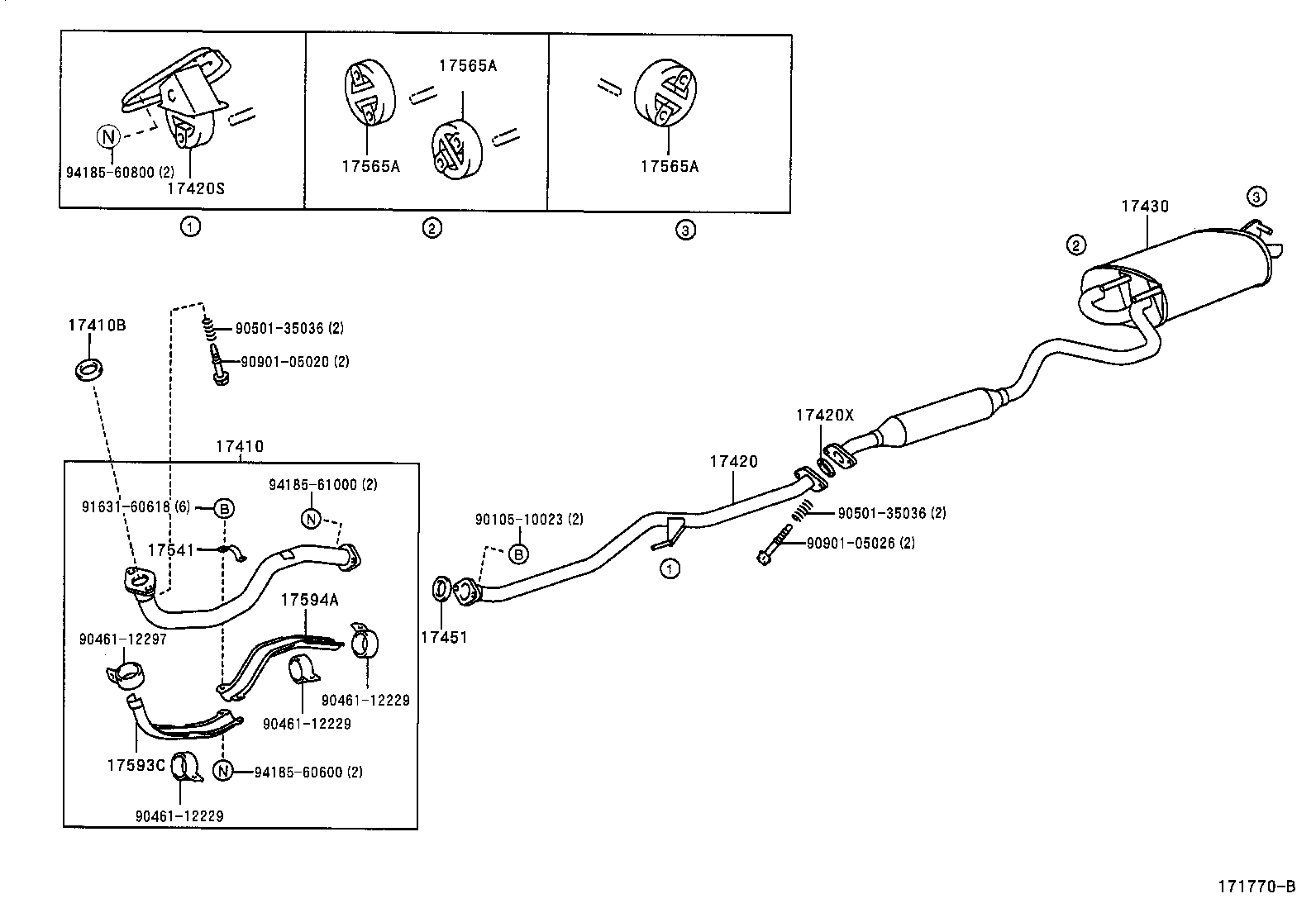

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-7A800 |
3SFE..SV55 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-74040 |
1AZFSE,3SF#..AZV5#,SV5# |
1 | ||
| 17451-74040 |
3SF#,1ZZFE..SV5#,ZZV50 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-7A191 |
3SFE..SV55 |
1 | ||
| 17420S - BRACKET, EXHAUST PIPE CENTER, REAR | ||||
| 17507-64070 |
3SFE..SV55 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 17451-16030 |
1AZFSE,3SF#,1ZZFE..AZV55,SV5#,ZZV50 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-7B131 |
3SFE..SV55 |
1 | ||
| 17430-7B300 |
3SFE..SV55 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06045 |
3SFE..SV55 |
1 | ||
| 17541 - STAY, EXHUST PIPE PROTECTOR, NO.1 | ||||
| 17541-34020 |
3SFE..SV55 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-74280 |
3SFE..SV55 |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-74280 |
3SFE..SV55 |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-74280 |
3SFE..SV55 |
3 | ||
| 17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17593-74840 |
3SFE..SV55 |
1 | ||
| 17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2 | ||||
| 17594-74760 |
3SFE..SV55 |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90461-12229 | ||||
| 90461-12297 | ||||
| 90501-35036 | ||||
| 90901-05020 | ||||
| 90901-05026 | ||||
| 91631-60618 | ||||
| 94185-60600 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
