SV55G-BWSMK (1998)

Toyota Vista/Vista Ardeo

Production Jun 1998 - Apr 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9806- )

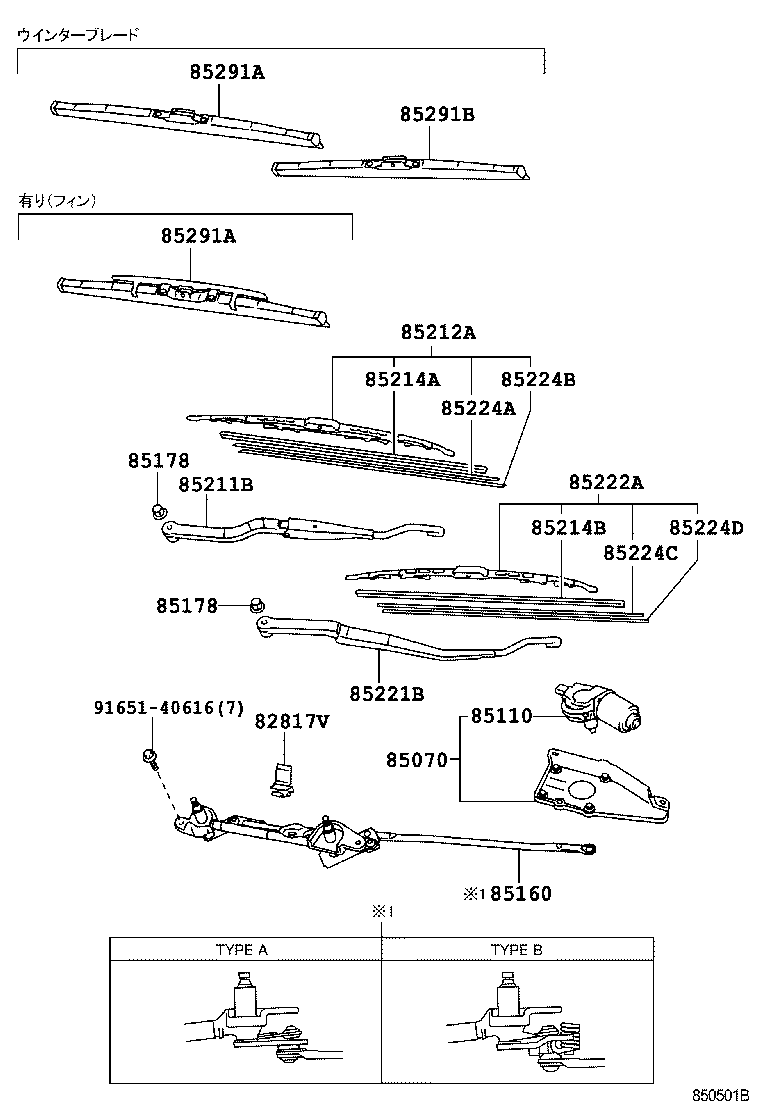

Click highlighted areas on diagram

diagram 82817V 85070 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85224A 85224B 85224C 85224D 85291A 85291A 85291B 9165140616
Part # Description Qty Price
82817V - PROTECTOR, WIRING HARNESS
82817-3H200

AZV5#,SV5#,ZZV50

 1
85070 - MOTOR & BRACKET ASSY, FRONT WIPER
85070-32080

AZV5#,SV5#,ZZV50

 1
85070-32240

AZV5#,SV5#,ZZV50

ｱﾘ(ﾛﾂｸ ﾊﾞﾂｸ)

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-32380

AZV5#,SV5#,ZZV50

 1
85110-32390

AZV5#,SV5#,ZZV50

ｱﾘ(ﾛﾂｸ ﾊﾞﾂｸ)

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-32450

AZV5#,SV5#,ZZV50

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
85150-32440

AZV5#,SV5#,ZZV50

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-10005

AZV5#,SV5#,ZZV50

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-10005

AZV5#,SV5#,ZZV50

 2
85211B - ARM, FRONT WIPER, RH
85211-32290

AZV5#,SV5#,ZZV50

ｱﾘ(ﾛﾂｸ ﾊﾞﾂｸ)

 1
85211-32280

AZV5#,SV5#,ZZV50

 1
85212A - BLADE, FR WIPER, RH
85212-32280

AZV5#,SV5#,ZZV50

 1
85214A - RUBBER, WIPER, RH
85214-50120

AZV5#,SV5#,ZZV50

 1
85214-44010

SV5#,ZZV50

 1
85214B - RUBBER, WIPER, LH
85214-44080

AZV5#,SV5#,ZZV50

 1
85221B - ARM, FRONT WIPER, LH
85221-32150

AZV5#,SV5#,ZZV50

 1
85221-32160

AZV5#,SV5#,ZZV50

ｱﾘ(ﾛﾂｸ ﾊﾞﾂｸ)

 1
85222A - BLADE, FR WIPER, LH
85222-44030

AZV5#,SV5#,ZZV50

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-44010

AZV5#,SV5#,ZZV50

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-44010

AZV5#,SV5#,ZZV50

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-44070

AZV5#,SV5#,ZZV50

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-44070

AZV5#,SV5#,ZZV50

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-13030

AZV5#,SV5#,ZZV50

 1
85291-13040

AZV5#,SV5#,ZZV50

ｱﾘ(ﾌｲﾝ)

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-13030

AZV5#,SV5#,ZZV50

 1
85291-13040

AZV5#,SV5#,ZZV50

ｱﾘ(ﾌｲﾝ)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-32080

AZV5#,SV5#,ZZV50

 1
Common parts
91651-40616
