SV55G-BWSMK (1998)

Toyota Vista/Vista Ardeo

Production Jun 1998 - Apr 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9806- )

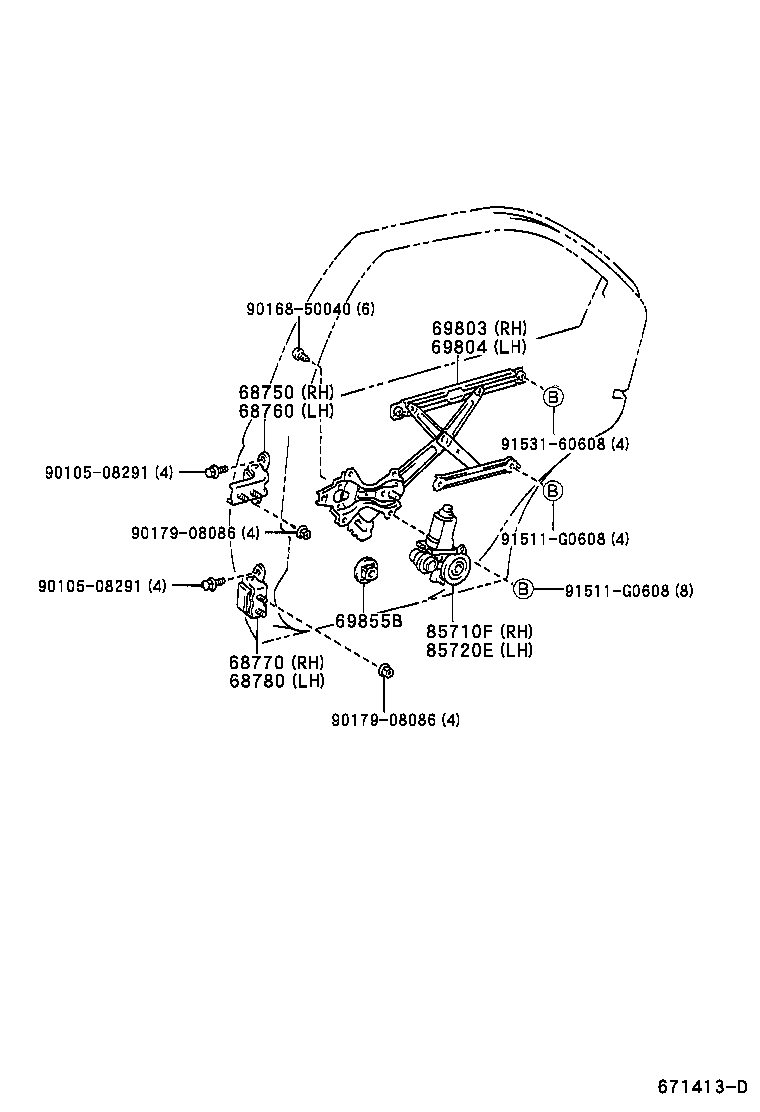

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69803 69804 69855B 85710F 85720E 9010508291 9010508291 9016850040 9017908086 9017908086 91511G0608 91511G0608 9153160608
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-32070

AZV5#,SV5#,ZZV50

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-32070

AZV5#,SV5#,ZZV50

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-32090

AZV5#,SV5#,ZZV50

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-32080

AZV5#,SV5#,ZZV50

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-32090

AZV5#,SV5#,ZZV50

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-32090

AZV5#,SV5#,ZZV50

 1
69855B - COVER, DOOR WINDOW REGULATOR GEAR
69855-20010

AZV5#,SV5#,ZZV50

 2
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-32190

AZV5#,SV5#,ZZV50

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-32160

AZV5#,SV5#,ZZV50

 1
Common parts
90105-08291
90168-50040
90179-08086
91511-G0608
91531-60608
