SV55G-BWSMK (1998)
Toyota Vista/Vista Ardeo
Production
Jun 1998
-
Apr 2002
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9806- )

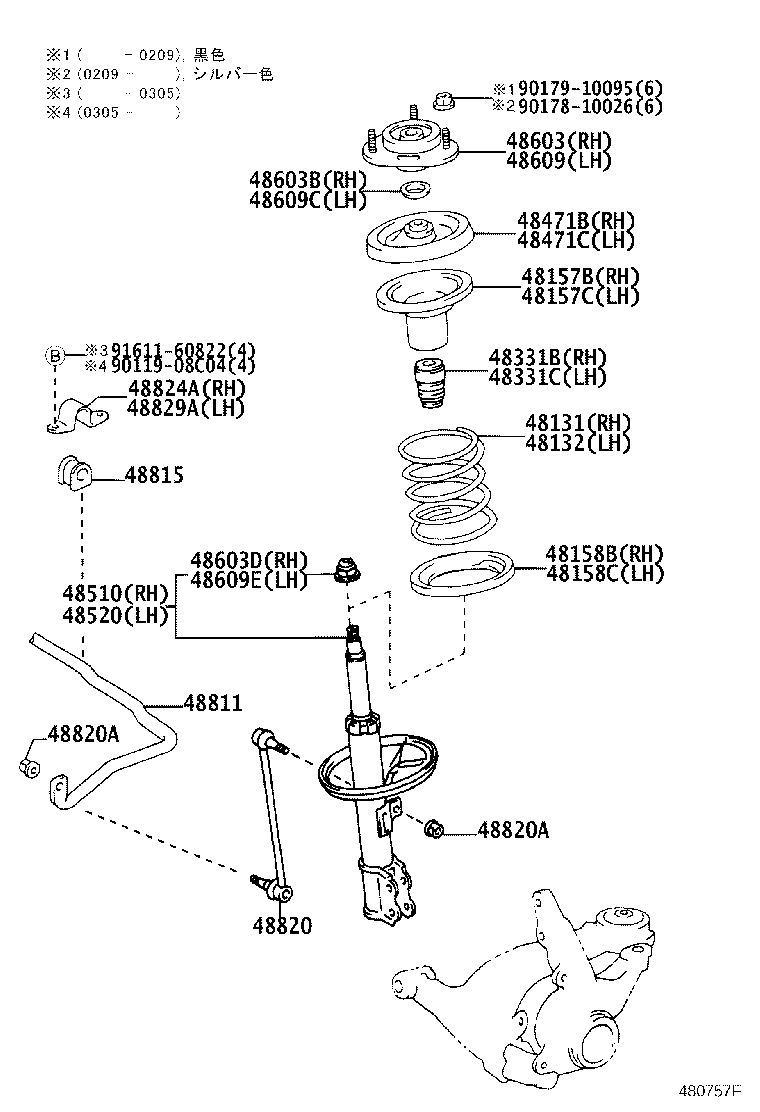

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-3H620 |
AZV55,SV55 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-3H620 |
AZV55,SV55 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-32050 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-32050 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-47010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-47010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-32100 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-32100 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-32050 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-32050 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-39765 |
AZV55,SV55 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-39335 |
AZV55,SV55 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-32170 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48603B - BEARING(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90903-63002 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-14015 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-32170 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48609C - BEARING(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90903-63002 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-14015 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-32280 |
SV55 |
1 | ||
| 48811-32300 |
AZV55,SV55 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-20280 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 48815-32130 |
SV5#,ZZV50 |
2 | ||
| 48820 - LINK ASSY, FRONT STABILIZER | ||||
| 48820-32010 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
AZV5#,SV5#,ZZV50 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
AZV5#,SV5#,ZZV50 |
4 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-26210 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-26210 |
AZV5#,SV5#,ZZV50 |
1 | ||
| Common parts | ||||
| 90119-08C04 | ||||
| 90178-10026 | ||||
| 90179-10095 | ||||
| 91611-60822 | ||||
