SV55G-BWSMK (1998)

Toyota Vista/Vista Ardeo

Production Jun 1998 - Apr 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9806-0204)SV55

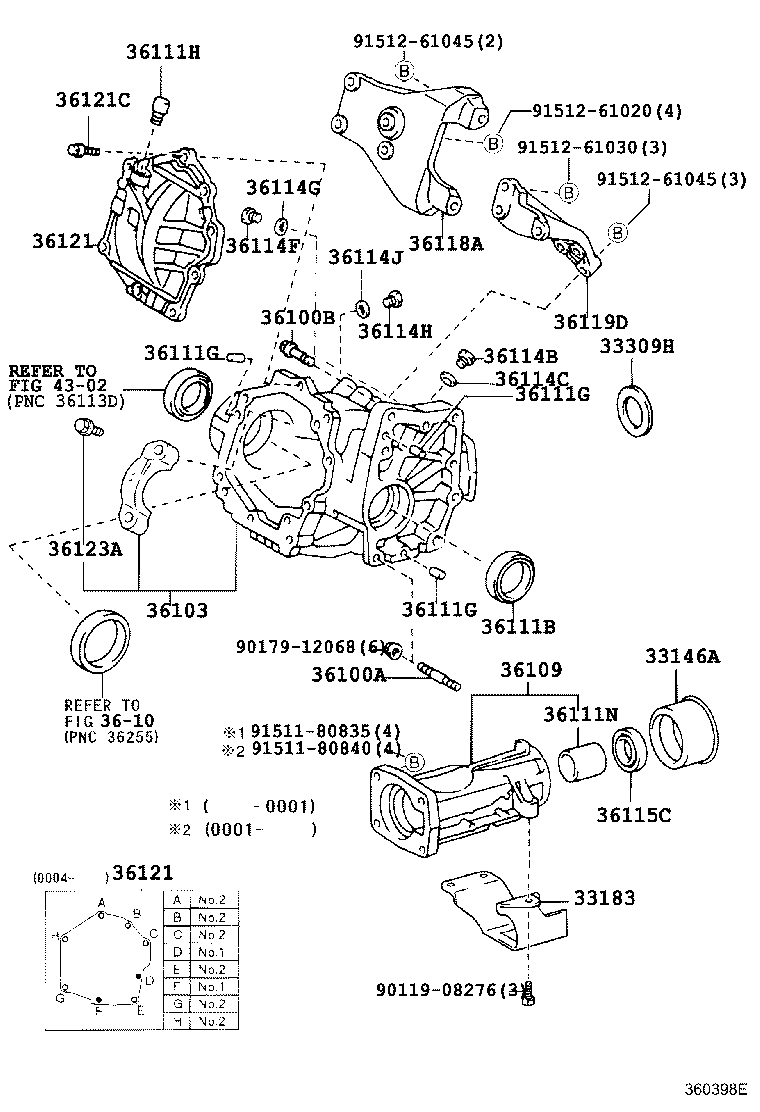

Click highlighted areas on diagram

diagram 33146A 33183 33309H 3610 36100A 36100B 36103 36109 36111B 36111G 36111G 36111G 36111H 36111N 36114B 36114C 36114F 36114G 36114H 36114J 36115C 36118A 36119D 36121 36121 36121C 36123A 4302 9011908276 9017912068 9151180835 9151180840 9151261020 9151261030 9151261045 9151261045
Part # Description Qty Price
33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33146-30020

AZV55,SV55

 1
33183 - DAMPER, TRANSFER DYNAMIC
33183-21040

AZV55,SV55

 1
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-33080

SV55

厚さ=2.17,ﾏｰｸ CB

 1
36275-33140

SV55

厚さ=2.23,ﾏｰｸ EB

 1
36275-33020

SV55

厚さ=2.11,ﾏｰｸ AB

 1
36275-33220

SV55

厚さ=2.31,ﾏｰｸ HA

 1
36275-33180

SV55

厚さ=2.27,ﾏｰｸ FC

 1
36275-33040

SV55

厚さ=2.13,ﾏｰｸ BA

 1
36275-33320

SV55

厚さ=2.41,ﾏｰｸ LB

 1
36275-33280

SV55

厚さ=2.37,ﾏｰｸ KA

 1
36275-33120

SV55

厚さ=2.21,ﾏｰｸ DC

 1
36275-33240

SV55

厚さ=2.33,ﾏｰｸ HC

 1
36275-33300

SV55

厚さ=2.39,ﾏｰｸ KC

 1
36275-33100

SV55

厚さ=2.19,ﾏｰｸ DA

 1
36275-33060

SV55

厚さ=2.15,ﾏｰｸ BC

 1
36275-33340

SV55

厚さ=2.43,ﾏｰｸ MA

 1
36275-33160

SV55

厚さ=2.25,ﾏｰｸ FA

 1
36275-33200

SV55

厚さ=2.29,ﾏｰｸ GB

 1
36275-33360

SV55

厚さ=2.45,ﾏｰｸ MC

 1
36275-33070

AZV55,SV55

厚さ=2.16,ﾏｰｸ CA

 1
36275-33050

AZV55,SV55

厚さ=2.14,ﾏｰｸ BB

 1
36275-33420

SV55

厚さ=2.51,ﾏｰｸ PC

 1
36275-33110

AZV55,SV55

厚さ=2.20,ﾏｰｸ DB

 1
36275-33010

AZV55,SV55

厚さ=2.10,ﾏｰｸ AA

 1
36275-33400

SV55

厚さ=2.49,ﾏｰｸ PA

 1
36275-33260

SV55

厚さ=2.35,ﾏｰｸ JB

 1
36275-33440

SV55

厚さ=2.53,ﾏｰｸ QB

 1
36275-33170

AZV55,SV55

厚さ=2.26,ﾏｰｸ FB

 1
36275-33130

AZV55,SV55

厚さ=2.22,ﾏｰｸ EA

 1
36275-33380

SV55

厚さ=2.47,ﾏｰｸ NB

 1
36275-33030

AZV55,SV55

厚さ=2.12,ﾏｰｸ AC

 1
36275-33460

SV55

厚さ=2.55,ﾏｰｸ RA

 1
36275-33090

AZV55,SV55

厚さ=2.18,ﾏｰｸ CC

 1
36275-33150

AZV55,SV55

厚さ=2.24,ﾏｰｸ EC

 1
36275-33250

AZV55,SV55

厚さ=2.34,ﾏｰｸ JA

 1
36275-33230

AZV55,SV55

厚さ=2.32,ﾏｰｸ HB

 1
36275-33430

AZV55,SV55

厚さ=2.52,ﾏｰｸ QA

 1
36275-33370

AZV55,SV55

厚さ=2.46,ﾏｰｸ NA

 1
36275-33190

AZV55,SV55

厚さ=2.28,ﾏｰｸ GA

 1
36275-33210

AZV55,SV55

厚さ=2.30,ﾏｰｸ GC

 1
36275-33270

AZV55,SV55

厚さ=2.36,ﾏｰｸ JC

 1
36275-33410

AZV55,SV55

厚さ=2.50,ﾏｰｸ PB

 1
36275-33350

AZV55,SV55

厚さ=2.44,ﾏｰｸ MB

 1
36275-33310

AZV55,SV55

厚さ=2.40,ﾏｰｸ LA

 1
36275-33450

AZV55,SV55

厚さ=2.54,ﾏｰｸ QC

 1
36275-33330

AZV55,SV55

厚さ=2.42,ﾏｰｸ LC

 1
36275-33290

AZV55,SV55

厚さ=2.38,ﾏｰｸ KB

 1
36275-33390

AZV55,SV55

厚さ=2.48,ﾏｰｸ NC

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

AZV55,SV55

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
90116-12041

AZV55,SV55

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
90116-12028

AZV55,SV55

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING)
90105-12298

SV55

*12−1.25PX53−35

 2
36103 - CASE SUB-ASSY, TRANSFER
36103-32010

SV55

 1
36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION
36109-33010

AZV55,SV55

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-49001

AZV55,SV55

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-08030

AZV55,SV55

長さ=16,外径=8

 2
90250-10017

AZV55,SV55

長さ=20,外径=10

 2
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-08030

AZV55,SV55

長さ=16,外径=8

 2
90250-10017

AZV55,SV55

長さ=20,外径=10

 2
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-08030

AZV55,SV55

長さ=16,外径=8

 2
90250-10017

AZV55,SV55

長さ=20,外径=10

 2
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03133

AZV55,SV55

 1
36111N - BUSH (FOR TRANSFER CASE)
90999-73105

AZV55,SV55

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18045

AZV55,SV55

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
12157-10010

AZV55,SV55

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18057

AZV55,SV55

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
12157-10010

AZV55,SV55

 1
36114H - PLUG, NO.2 (FOR TRANSFER CASE)
90341-18006

AZV55,SV55

 1
36114J - GASKET, NO.2 (FOR TRANSFER CASE)
12157-10010

AZV55,SV55

 1
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-38062

AZV55,SV55

 1
36118A - PLATE, TRANSFER STIFFENER, RH
36118-21010

SV55

 1
36119D - PLATE, TRANSFER STIFFENER, CENTER
36119-21010

SV55

 1
36121 - COVER, TRANSFER CASE, NO.1
36121-33010

AZV55,SV55

 1
36121 - COVER, TRANSFER CASE, NO.1
36121-33010

AZV55,SV55

 1
36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE
90105-08351

SV55

 8
36123A - BOLT, DIFFERENTIAL BEARING CAP
41114-16010

AZV55,SV55

 2
Common parts
90119-08276
90179-12068
91511-80835
91511-80840
91512-61020
91512-61030
91512-61045
Linked diagrams
3610
4302
