SV55G-BWSEK (2000)
Toyota Vista/Vista Ardeo

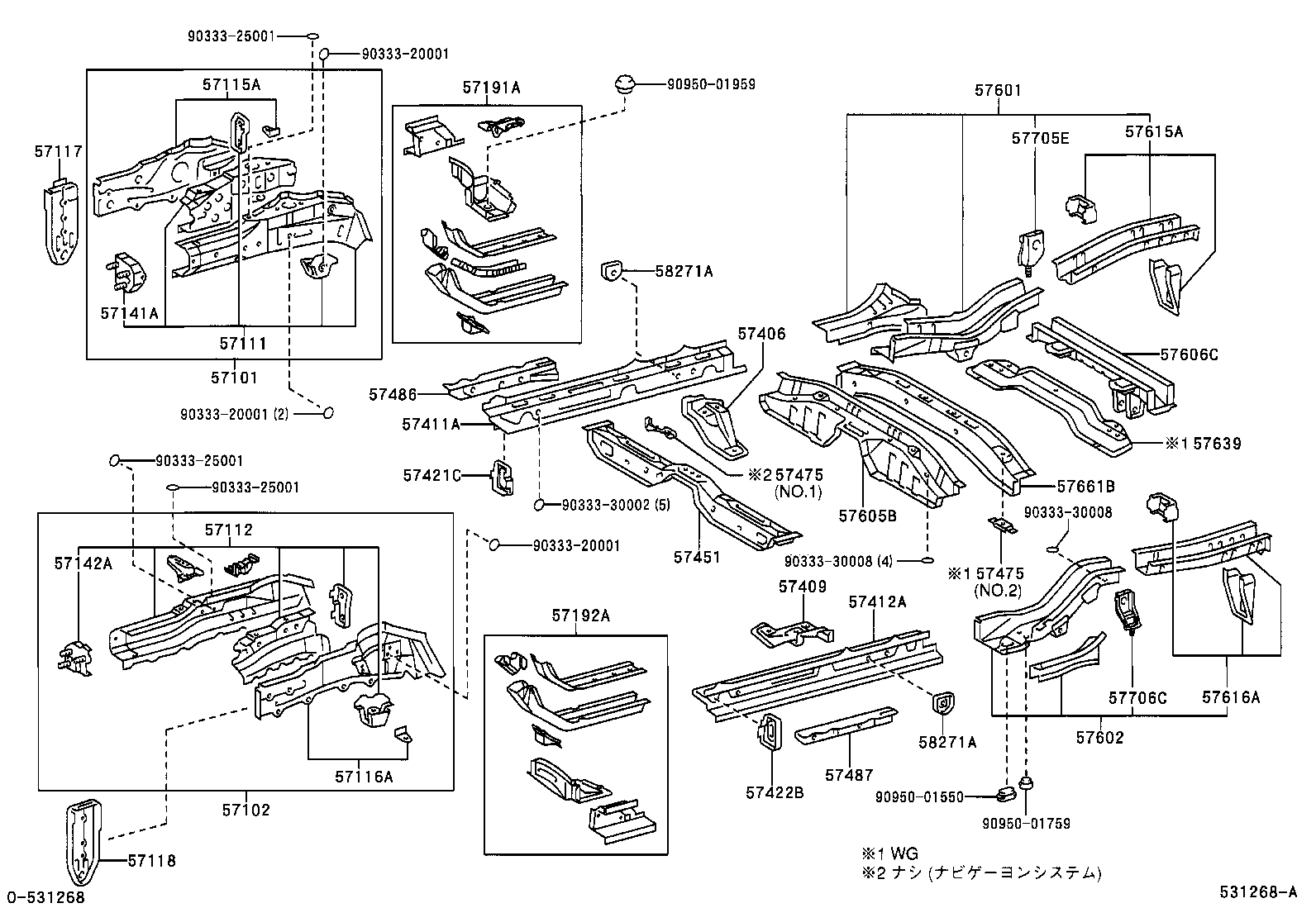

(9806-0111)SV55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-32900 |
SV5# |
1 | ||
| 57101-32902 |
SV5# |
1 | ||
| 57101-32904 |
AZV50,SV55 |
1 | ||
| 57101-32908 |
AZV5#,SV55 |
1 | ||
| 57101-32906 |
AZV50,SV55 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-32903 |
AZV5#,SV55,ZZV50 |
1 | ||
| 57102-32902 |
AZV50,SV55,ZZV50 |
1 | ||
| 57102-32900 |
SV5#,ZZV50 |
1 | ||
| 57102-32901 |
AZV50,SV5#,ZZV50 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-32901 |
AZV50,SV5# |
1 | ||
| 57111-32903 |
AZV5#,SV55 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-32902 |
AZV50,SV5#,ZZV50 |
1 | ||
| 57112-32903 |
AZV5#,SV55,ZZV50 |
1 | ||
| 57112-32901 |
SV5#,ZZV50 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-32900 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-32900 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH | ||||
| 57117-32060 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH | ||||
| 57118-32040 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57141A - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-32010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57142A - SUPPORT, FRONT BUMPER ARM, LH | ||||
| 57142-32010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57406 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57406-32020 |
AZV5#,SV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L |
1 | ||
| 57406-32010 |
SV5#,ZZV50 |
1 | ||
| 57406-32030 |
AZV5#,SV55,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180E,N180L,N200,N200E,N200G,N200L ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 57406-32030 |
AZV50,SV5#,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180L,N200,N200G,N200L ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 57409 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57409-32020 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57409-32010 |
SV5#,ZZV50 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-32070 |
SV5#,ZZV50 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-32070 |
SV5#,ZZV50 |
1 | ||
| 57421C - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-32010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57422B - PLATE, FLOOR SIDE RAIL, LH | ||||
| 57422-32010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-32070 |
SV5#,ZZV50 |
1 | ||
| 57451-32071 |
AZV50,SV5#,ZZV50 |
1 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-32010 |
AZV5#,SV5#,ZZV50..WG NO.2:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 57475-20070 |
AZV5#,SV55,ZZV50 NO.1:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-32010 |
AZV5#,SV5#,ZZV50..WG NO.2:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 57475-20070 |
AZV5#,SV55,ZZV50 NO.1:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57486 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-32060 |
AZV5#,SV55,ZZV50 |
1 | ||
| 57486-32050 |
SV5#,ZZV50 |
1 | ||
| 57486-32040 |
SV5#,ZZV50 |
1 | ||
| 57487 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH | ||||
| 57487-32030 |
SV5#,ZZV50 |
1 | ||
| 57487-32050 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-32300 |
SV55 |
1 | ||
| 57601-32340 |
SV55 |
1 | ||
| 57601-32340 |
AZV55,SV55..WG |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-32300 |
SV55 |
1 | ||
| 57602-32340 |
AZV55,SV55..WG |
1 | ||
| 57602-32340 |
SV55 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-32110 |
AZV55,SV55 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-32150 |
AZV55,SV55..WG |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-32912 |
SV55 |
1 | ||
| 57615-32913 |
AZV50,ZZV50;AZV55,SV55..WG |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-32916 |
SV55 |
1 | ||
| 57616-32917 |
SV55..WG;AZV50,ZZV50..A180,A180E,A180S,A200,A200G,A200S,N180,N180E,N200,N200G,N200L |
1 | ||
| 57639 - MEMBER, REAR FLOOR, CENTER NO.2 | ||||
| 57639-32010 |
AZV5#,SV5#,ZZV50..WG |
1 | ||
| 57661B - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 58202-32010 |
AZV5#,SV5#,ZZV50..WG |
1 | ||
| 57705E - BRACKET SUB-ASSY, REAR SUSPENSHION MEMBER MOUNTING, RR | ||||
| 57705-32020 |
AZV55,SV55 |
1 | ||
| 57706C - BRACKET SUB-ASSY, REAR SUSPENSION MEMBER MOUNTING, RR L | ||||
| 57706-32020 |
AZV55,SV55 |
1 | ||
| 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-32010 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-32010 |
AZV5#,SV5#,ZZV50 |
2 | ||
| Common parts | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90950-01550 | ||||
| 90950-01759 | ||||
| 90950-01866 | ||||

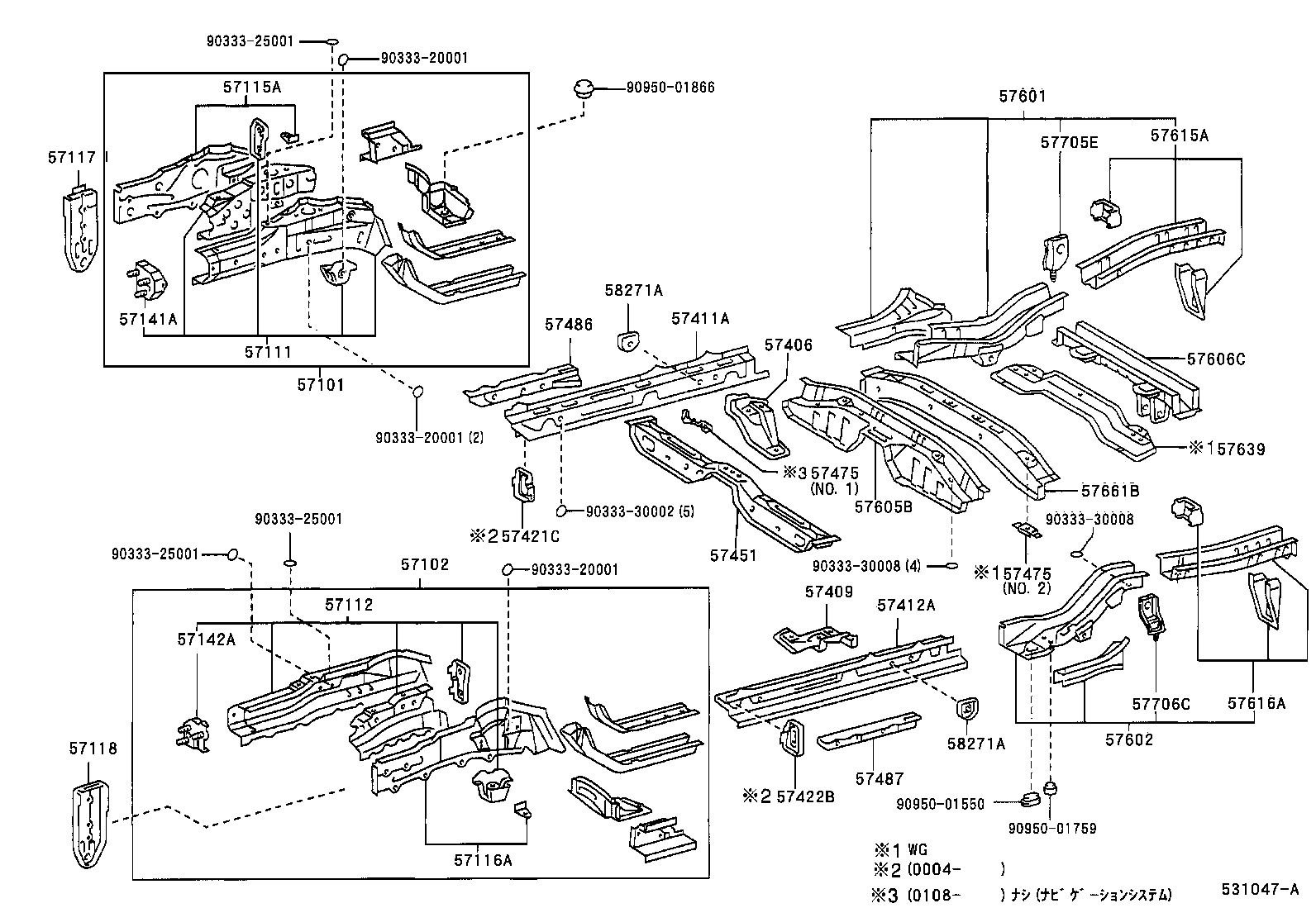

(0111- )AZV55,SV55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-32900 |
SV5# |
1 | ||
| 57101-32902 |
SV5# |
1 | ||
| 57101-32904 |
AZV50,SV55 |
1 | ||
| 57101-32908 |
AZV5#,SV55 |
1 | ||
| 57101-32906 |
AZV50,SV55 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-32903 |
AZV5#,SV55,ZZV50 |
1 | ||
| 57102-32902 |
AZV50,SV55,ZZV50 |
1 | ||
| 57102-32900 |
SV5#,ZZV50 |
1 | ||
| 57102-32901 |
AZV50,SV5#,ZZV50 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-32901 |
AZV50,SV5# |
1 | ||
| 57111-32903 |
AZV5#,SV55 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-32902 |
AZV50,SV5#,ZZV50 |
1 | ||
| 57112-32903 |
AZV5#,SV55,ZZV50 |
1 | ||
| 57112-32901 |
SV5#,ZZV50 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-32900 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-32900 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH | ||||
| 57117-32060 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH | ||||
| 57118-32040 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57141A - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-32010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57142A - SUPPORT, FRONT BUMPER ARM, LH | ||||
| 57142-32010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-20900 |
AZV50,SV55,ZZV50 |
1 | ||
| 57191-32901 |
AZV5#,SV55,ZZV50 |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-32900 |
AZV5#,SV55,ZZV50 |
1 | ||
| 57406 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57406-32020 |
AZV5#,SV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L |
1 | ||
| 57406-32010 |
SV5#,ZZV50 |
1 | ||
| 57406-32030 |
AZV5#,SV55,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180E,N180L,N200,N200E,N200G,N200L ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 57406-32030 |
AZV50,SV5#,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180L,N200,N200G,N200L ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 57409 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57409-32020 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57409-32010 |
SV5#,ZZV50 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-32070 |
SV5#,ZZV50 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-32070 |
SV5#,ZZV50 |
1 | ||
| 57421C - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-32010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57422B - PLATE, FLOOR SIDE RAIL, LH | ||||
| 57422-32010 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-32070 |
SV5#,ZZV50 |
1 | ||
| 57451-32071 |
AZV50,SV5#,ZZV50 |
1 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-32010 |
AZV5#,SV5#,ZZV50..WG NO.2:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 57475-20070 |
AZV5#,SV55,ZZV50 NO.1:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-32010 |
AZV5#,SV5#,ZZV50..WG NO.2:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 57475-20070 |
AZV5#,SV55,ZZV50 NO.1:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57486 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-32060 |
AZV5#,SV55,ZZV50 |
1 | ||
| 57486-32050 |
SV5#,ZZV50 |
1 | ||
| 57486-32040 |
SV5#,ZZV50 |
1 | ||
| 57487 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH | ||||
| 57487-32030 |
SV5#,ZZV50 |
1 | ||
| 57487-32050 |
AZV5#,SV5#,ZZV50 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-32300 |
SV55 |
1 | ||
| 57601-32340 |
SV55 |
1 | ||
| 57601-32340 |
AZV55,SV55..WG |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-32300 |
SV55 |
1 | ||
| 57602-32340 |
AZV55,SV55..WG |
1 | ||
| 57602-32340 |
SV55 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-32110 |
AZV55,SV55 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-32150 |
AZV55,SV55..WG |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-32912 |
SV55 |
1 | ||
| 57615-32913 |
AZV50,ZZV50;AZV55,SV55..WG |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-32916 |
SV55 |
1 | ||
| 57616-32917 |
SV55..WG;AZV50,ZZV50..A180,A180E,A180S,A200,A200G,A200S,N180,N180E,N200,N200G,N200L |
1 | ||
| 57639 - MEMBER, REAR FLOOR, CENTER NO.2 | ||||
| 57639-32010 |
AZV5#,SV5#,ZZV50..WG |
1 | ||
| 57661B - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 58202-32010 |
AZV5#,SV5#,ZZV50..WG |
1 | ||
| 57705E - BRACKET SUB-ASSY, REAR SUSPENSHION MEMBER MOUNTING, RR | ||||
| 57705-32020 |
AZV55,SV55 |
1 | ||
| 57706C - BRACKET SUB-ASSY, REAR SUSPENSION MEMBER MOUNTING, RR L | ||||
| 57706-32020 |
AZV55,SV55 |
1 | ||
| 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-32010 |
AZV5#,SV5#,ZZV50 |
2 | ||
| 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-32010 |
AZV5#,SV5#,ZZV50 |
2 | ||
| Common parts | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90950-01550 | ||||
| 90950-01759 | ||||
| 90950-01959 | ||||
